The Agilent Keysight E4448A PSA gives unparalleled levels of measurement capability up to 50 GHz.
Includes Options: 115/215/AYZ
Dynamic Range
-154 dBm displayed average noise level (DANL)
+17 dBm third order intercept (TOI) (+19 dBm typical)
-114 dBc/Hz phase noise at 10 kHz offset
Speed
Fast low-level spur search
50 measurements per second local update rate (45 for remote operation)
Agilent E4448A Standard Features
All-digital IF with auto-ranging capability
Phase noise optimization
Full detector suite
160 resolution bandwidth settings (10% steps)
2 dB step attenuator
FFT and swept measurement modes
Power Suite one-button power measurements
*Photo and serial number may be a like representation, for more detailed information please contact us prior to ordering.
Read More
The 5700A and 5720A are five-function calibrators designed to address the most demanding electrical calibration workload. They source direct and alternating voltage and current and resistance. A wideband voltage option extends overall ac bandwidth to 10 Hz to 30 MHz to cover to RF voltmeters. Both are compatible with the 5725A, and 5205A/5215A amplifiers.
Read More
The E4440A PSA spectrum analyzer measures and monitors complex microwave and RF signals ranging between 3Hz and 26.5GHz. The Keysight external mixer and third-party mixers can expand the frequency coverage to 110GHz and 325GHz, respectively.
This high-performance PSA spectrum analyzer has a wide set of features, such as powerful one-button measurements and an outstanding combination of flexibility, speed, accuracy, dynamic range, and analysis bandwidth
The Tektronix DPO7254 is part of Tektronix’s new generation of real-time digital phosphor oscilloscopes and are the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging and testing sophisticated electronic designs.
Unit includes:
DDRA – DDR Memory Technology Analysis Package
DJA – Jitter and Eye-Diagram Analysis – Advanced
Read More

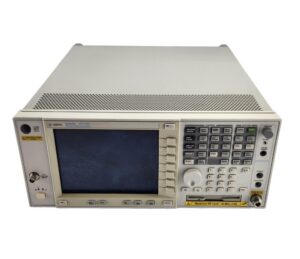

Keysight E4443A-111/115/1DS/219/226/241 PSA Series Spectrum Analyzer, 3 Hz – 6.7 GHz
The HP/Agilent E4443A PSA high-performance spectrum analyzer measures and monitors complex RF signals up to 6.7 GHz. Agilent E4443A Key Specifications Dynamic Range -155 dBm displayed average noise level (DANL) +17 dBm third order intercept (TOI) (+19 dBm typical) -116 dBc/Hz phase noise at 10 kHz offset (-118 dBc/Hz typical) Accuracy ±0.62 dB absolute amplitude accuracy (±0.24 dB typical) ±0.38 dB frequency response (±0.11 dB typical) ±0.07 dB log amplification linearity Speed Fast low-level spur search < 30 ms fast ACP measurement 50 measurements per second local update rate (45 for remote operation)
Read More
The Anritsu mmW modules are compact, low-profile, and lightweight which facilitates mounting on the micropositioners associated with semi-automatic or manual probe stations. The 3740A Transmission/Reflection modules have simultaneous transmission and reflection capability. A pair of 3740A modules allows measurement of all four S-parameters of a two-port device.
Anritsu 3740A-V Millimeter Wave Module, V-Band (WR-15), 50 to 75 GHz
Read More
The HP/Agilent Keysight E4445A PSA high-performance spectrum analyzer measures and monitors complex RF signals up to 13.2 GHz.
This unit is calibrated.
If calibration expiration is less than 6 months, unit will be re-calibrated.
Re-Calibration can take up to 10 days.
