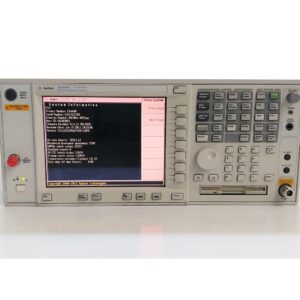

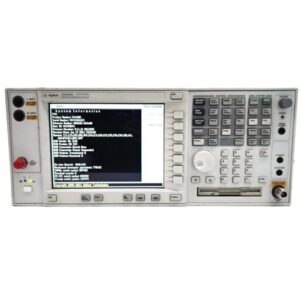

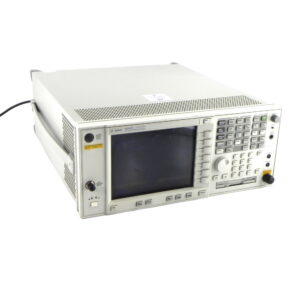

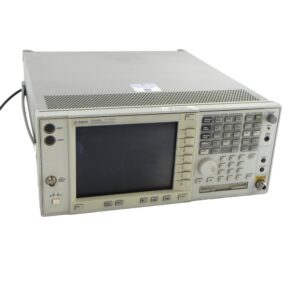

Keysight E4440A PSA Series Spectrum Analyzer, 3 Hz – 26.5 GHz

This high-performance PSA spectrum analyzer has a wide set of features, such as powerful one-button measurements and an outstanding combination of flexibility, speed, accuracy, dynamic range, and analysis bandwidth.

Keysight E4440A Features and Specifications

• Standard Power Suite one-button power measurements
• Highly flexibile, with 16 optional easy-to-use, built-in measurement personalities
• Analysis bandwidth for calibrated VSA measurements: Up to 300MHz
• Capture and measure complex signals with ten standard 40MHz to 80 MHz analysis bandwidth capabilities
• 81 dB W-CDMA ACLR dynamic range
• Standard attenuator range/step: 70 dB/2 dB
• DANL at 1GHz: -169 dBm
• Maximum analysis bandwidth: 80MHz
• -147 dBc/Hz phase noise at 1GHz (1MHz offset)
•  -118 dBc/Hz phase noise at 1GHz (10kHz offset)
• Third order intercept (TOI) at 1GHz: 19 dBm
• /- 0.19 dB absolute amplitude accuracy
• Maximum dynamic range third order at 1GHz: 116 dB
• Dynamic range (-154 dBm DANL, 17 dBm TOI)
• Accuracy: 0.38 dB frequency response, 0.62 dB amplitude accuracy, 0.07 dB log amplification linearity
• All-digital IF with auto-ranging capability
• Full detector suite
• 160 resolution bandwidth settings (10 percent steps)
• FFT and swept measurement modes
• EMI compatibility: CISPR Pub 11/1996 Class B
• 0 degrees C to 55 degrees C operating temperature range
• -40 degrees C to 70 degrees C storage temperature range
