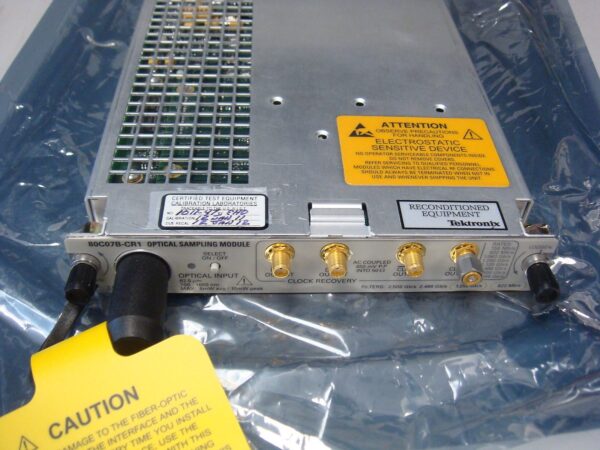

Tektronix 80C07B -CR Optical Sampling Module, Multi-rate Datacom/Telecom w/Option CR1- 2.5 GHz Clock/Data Recovery

$16,500.00

The 80C07B module is a broad wavelength (700 to 1650 nm) multi-rate optical sampling module optimized for testing datacom/telecom signals from 125 to 2500 Mb/s.

With its amplified O/E converter design, this module provides excellent signal-to-noise performance, allowing users to examine low-power optical signals. The 80C07B can be optionally configured with clock recovery that supports 125, 155, 622, 1063, 1250, 2125, 2488, 2500 and 2666 Mb/s rates.

1 in stock

SKU: TEK80C07B/CR1 Categories: , Tag:
Contact us today with your questions or to request a quote on this item.




Additional Information:

[Jump to Full Description]

Brand:

Description


  • Bandwidth: 2.5 GHz
  • Wavelength Range: 700-1650 nm
  • Fiber input: Singlemode or multimode (50 or 62.5µm)

Accessories

Options

Option Description
F1 125, 155, 622, 2488 and 2500 Mb/s Filters
F2 125, 155, 1063, 2488 and 2500 Mb/s Filters
F3 125, 155, 1250, 2488 and 2500 Mb/s Filters
F4 125, 155, 2125, 2488 and 2500 Mb/s Filters
F5 622, 1063, 2488 and 2500 Mb/s Filters
F6 622, 1250, 2488 and 2500 Mb/s Filters
F7 622, 2125, 2488 and 2500 Mb/s Filters
F8 1063, 1250, 2488 and 2500 Mb/s Filters
F9 1063, 2125, 2488 and 2500 Mb/s Filters
F10 1250, 2125, 2488 and 2500 Mb/s Filters

Additional information

Weight 10 lbs
Dimensions 12 × 12 × 12 in
Condition

Model Number

80C07B

Electrical Bandwidth

Manufacturer

Tektronix

Optical Bandwidth

2.3 GHz

Signal Range

Type

Wavelength

700-1650 nm
