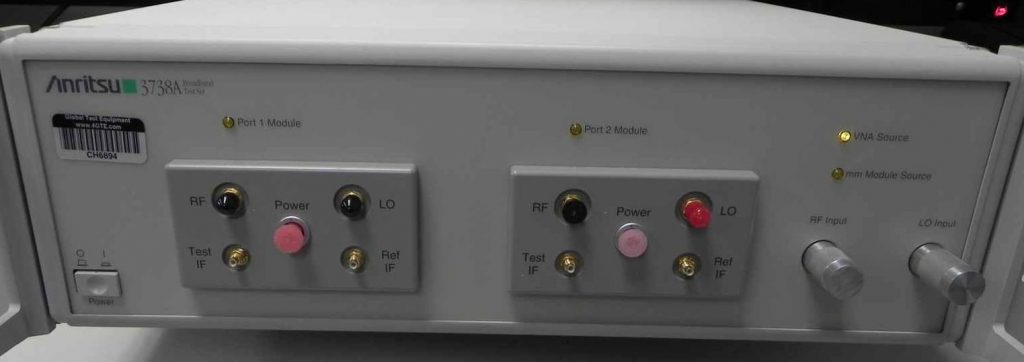

Anritsu 3738A Broadband Test Set

$9,500.00

Anritsu

The Anritsu 3738A broadband test set is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain. It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port. Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.

Anritsu 3738A utilize synthesized-frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels. Anritsu 3738A network analyzers also can perform ratioed measurements (including phase), which require multiple receivers. The Anritsu 3738A can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group-delay response.

1 in stock

SKU: ANR3738A Categories: , Tag:
Contact us today with your questions or to request a quote on this item.




Additional Information:

[Jump to Full Description]

Brand:

Description

The Anritsu 3738A broadband test set is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain. It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port. Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.

Anritsu 3738A utilize synthesized-frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels. Anritsu 3738A network analyzers also can perform ratioed measurements (including phase), which require multiple receivers. The Anritsu 3738A can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group-delay response.

Accessories

Options

Additional information

Weight 42 lbs
Dimensions 12 × 22 × 26 in
Condition

Model Number

3738A

Manufacturer

Anritsu

Type
