The Agilent 16710A 100 MHz state and 500 MHz timing analysis module offers industry standard state and timing analysis features at an affordable price. With this module, there is no need to connect special probes to view timing activity.
The Agilent 16557D 135 MHz state and 500 MHz timing analysis module offers high performance state and timing analysis features at an affordable price. With this module, there is no need to connect special probes to view timing activity. Set up your analyz
Features
Multi-Channel TLA Platform
Features MagnaView Technology
Simultaneous State and High Speed Analysis
Deep Channel Memory
Supports Logic, Oscilloscope, and Pattern Generator Modules
- 2A, 250V
- 2-wire, latching relays
- Provisions to add simple attenuators or filter networks
The Agilent 54712A is a 1.1GHz Amplifier Plug-in. The unit features a 50-ohm input and internal trigger, 2Gsa/sec. max. The 54712A is designed for use with the 54720D Oscilloscope.
The HP 44706A is an analog signal multiplexer used to switch signals from up to 60 single-ended inputs for measurement by model 3852A voltmeter accessories or by external voltmeters. This accessory provides switching capability for up to 60 single-ended inputs at scanning speeds up to 450 channels/second using 3852A voltmeters. The accessory can switch signals up to 30 Vdc or 30 Vrms (42 Vpeak).
The 44706A consists of a component module and a 60-channel terminal module. Field wiring from user sources, such as voltage sources, is connected to the terminal module, and signals are sent to the switches on the component module. Each channel on the 44706A can be independently configured to allow multiple functions to be measured using the same accessory.

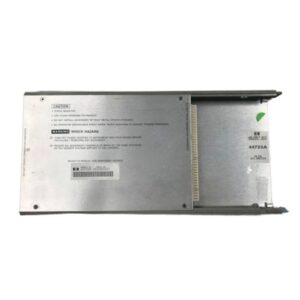

The 44725A Switch is a 16-Channel general purpose switch that directly switches voltage, current, and power.
HP/Agilent 44470D-Block Only for 20-Channel Relay Multiplexer
HP/Agilent 44721A 16 CH Digital Input with Totalize & Interrupt
