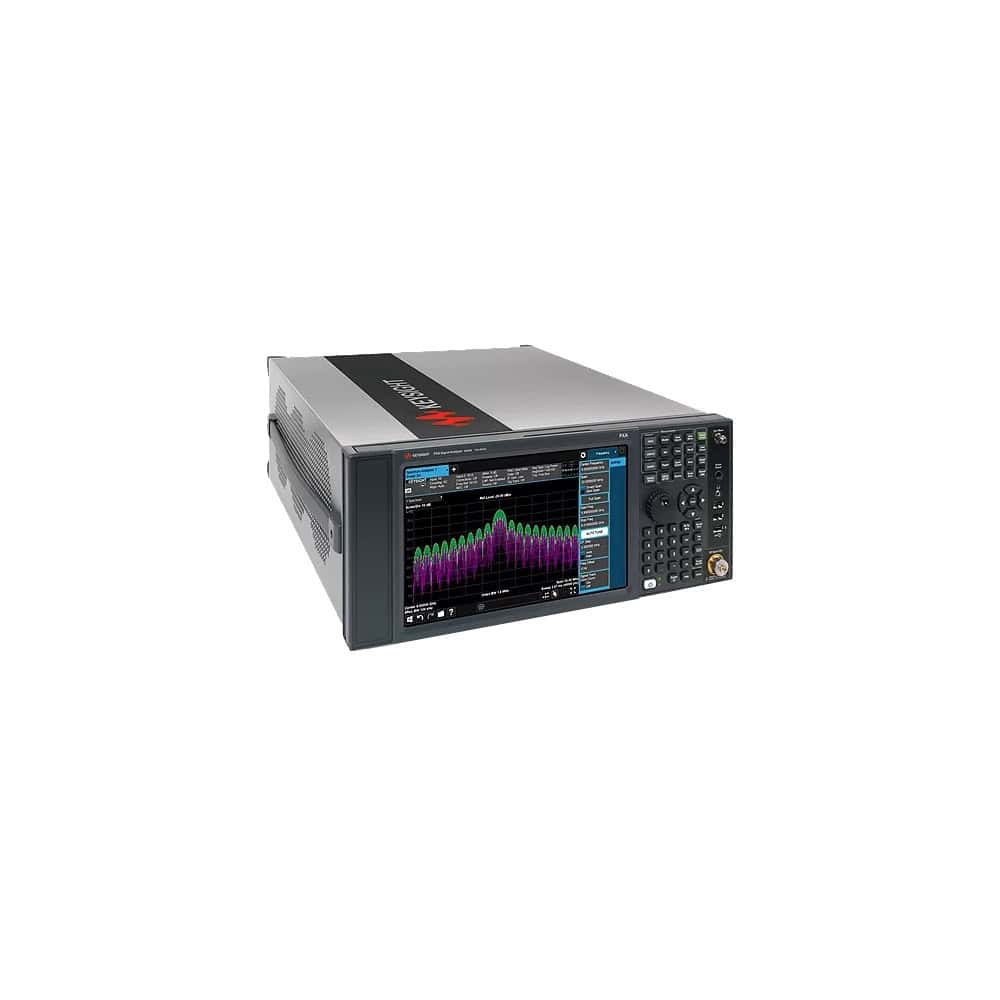

Keysight N9030B XA5-class Signal Analyzer

The Keysight N9030B PXA signal analyzer is a high-performance signal analysis tool with measurement options ranging from 2 Hz to 50 GHz with up to 510 MHz analysis bandwidth.

Request Quote

Already own one?

Description

PXA signal analyzers are ideally suited for high-performance research and development (R&D) applications in aerospace/defense and commercial wireless communications. The PXA analyzes signals over wider bandwidths, reduces measurement uncertainty, and reveals previously hidden signals with noise floor extension (NFE). Unravel complex signals through the PXA’s broad set of measurement applications and demodulation capabilities or add real-time spectrum analysis capabilities with an upgradeable option.

  • Analyze more with a wide frequency range of 2 Hz to 50 GHz with up to 510 MHz analysis bandwidth
  • See small signals in the presence of large ones with up to 75 dB of spurious-free dynamic range (SFDR)
  • Extend the frequency up to 110 GHz with Keysight smart mixers
  • Record, analyze, and simulate real-world scenarios with gap-free streaming up to 255 MHz
  • Capture transient or intermittent signals with optional real-time spectrum analysis capabilities
  • Meet stringent data security requirements with a removable solid-state drive and other optional features

Additional information

Weight 48 lbs
Dimensions 22 × 17 × 7 in
Option Description
1CR014A Rack Slide Kit for 17-inch and 20-inch Mounting Holes
1DVR001A ROM/CD-R/RW drive
1MSE001A Mouse
89601200C Advanced vector signal analysis all-inclusive with no frequency, bandwidth limits and up to 64 channels
89601202C Standard vector signal analysis up to 55 GHz center frequency, 2.16 GHz bandwidth, and 4 channels support
89601203C Essentials vector signal analysis up to 8 GHz center frequency, 160 MHz bandwidth, and single channel support
89601301C Multi-vendor hardware connectivity
89601AYAC Digital demodulation analysis
89601B7NC 3G modulation analysis
89601B7RC Wireless connectivity modulation analysis
89601BHFC Custom OFDM modulation analysis
89601BHGC LTE/LTE-A FDD modulation analysis
89601BHHC LTE/LTE-A TDD modulation analysis
89601BHMC DOCSIS modulation analysis
89601BHNC 89601BHNC 5G NR/5G-Advanced modulation analysis
89601BHPC FMCW radar analysis
89601BHQC Pulse analysis
89601BHTC IoT modulation analysis
89601BHXC High throughput WLAN modulation analysis
89601BVXC High throughput WLAN modulation analysis, limited
89601CSDC Stimulus response signal analysis
89601DVBC DVB Satellite Communications Analysis Option
89601EVMC 89601EVMC EVM improvement with cross-correlated EVM and IQ-NC
89601PSMC Power Suite Measurement
CV1117A Cover, Front Panel, Phantom Gray for 4U X-Series Signal Analyzers
MLP001A Minimum loss pad, 50 to 75 ohm
N6141EM0E EMI Measurement Application
N6171A MATLAB Software
N9030B-033 Measuring receiver connector accessory kit, 26.5GHz MMR
N9030B-034 Measuring receiver connector accessory kit, 50GHz MMR
N9030B-107 Audio input and digitizer
N9030B-503 Frequency Range, 2 Hz to 3.6 GHz
N9030B-508 Frequency Range, 2 Hz to 8.4 GHz
N9030B-513 Frequency Range, 2 Hz to 13.6 GHz
N9030B-526 Frequency Range, 2 Hz to 26.5 GHz
N9030B-544 Frequency Range, 2 Hz to 44 GHz
N9030B-550 Frequency Range, 2 Hz to 50 GHz
N9030B-ALV Auxiliary log video output
N9030B-B1X Analysis Bandwidth, 160 MHz
N9030B-B2X Analysis bandwidth, 255 MHz
N9030B-B40 Analysis bandwidth, 40 MHz
N9030B-B5X Analysis bandwidth, 510 MHz
N9030B-B85 Analysis bandwidth, 85 MHz
N9030B-BBA I/Q baseband inputs, analog
N9030B-C35 RF input Connector, 3.5 mm, male
N9030B-CR3 Connector rear, second IF output
N9030B-CRP Connector rear, programmable IF output
N9030B-EA3 Electronic attenuator, 3.6 GHz
N9030B-EP0 Enhanced phase noise, DDS LO
N9030B-EXM External mixing
N9030B-FBP Full Bypass Path
N9030B-LNP Low noise path
N9030B-MPB Microwave preselector bypass
N9030B-P03 Preamplifier, 3.6 GHz
N9030B-P08 Preamplifier, 8.4 GHz
N9030B-P13 Preamplifier, 13.6 GHz
N9030B-P26 Preamplifier, 26.5 GHz
N9030B-P44 Preamplifier, 44 GHz
N9030B-P50 Preamplifier, 50 GHz
N9030B-RTR Real-time spectrum recorder and analyzer application example
N9030B-RTS Real time data streaming
N9030B-SF1 Security features, exclude launching programs
N9030B-SF2 Security features, prohibit saving results
N9030B-SF3 Security feature, secure RAM disk boot
N9030B-SS2 Additional Solid state drive, Win10, for PC8
N9030B-SS3 Additional M.2 NVMe SSD, Win10, for PCA
N9030B-SS7 Additional M.2 NVMe SSD, Win11, for PCA/PCB
N9030B-YAV Screen video, log video and linear video
N9030RT1B Real-time analysis up to maximum available BW, Basic Detection
N9030RT2B Real-time analysis up to maximum available BW, Optimum Detection
N9054EM0E Vector Modulation Analysis Digital Demodulation Measurement Application
N9054EM1E Vector Modulation Analysis Custom OFDM Application
N9055EM0E Power Amplifier Measurement Application
N9056EM0E Channel Quality for Group Delay Measurement Application
N9056PC1E Channel Quality for Noise Power Ratio Measurement Application, PC License
N9061EM0E Remote Language Compatibility Measurement Application
N9062EM0E SCPI Language Compatibility Measurement Application
N9063EM0E Analog Demodulation Measurement Application
N9067EM0E Pulse Analysis Measurement Application
N9068EM0E Phase Noise Measurement Application
N9069EM0E Noise Figure Measurement Application
N9071EM0E GSM/EDGE/Evo Measurement Application
N9072EM0E cdma2000 measurement application, remote control only
N9073EM0E W-CDMA/HSPA+ Measurement Application
N9076EM0E 1xEV-DO measurement application, remote control only
N9077EM0E WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application
N9077EM1E WLAN 802.11ac/ax Measurement Application
N9077EM2E WLAN 802.11be and 802.11bn Measurement Application
N9077EM3E WLAN 802.11ac/ax Measurement Application, limited
N9077EM4E WLAN 802.11be/bn Measurement Application, limited
N9079EM0E TD-Scdma/HSPA measurement application, remote control only
N9080EM0E LTE and LTE-Advanced FDD Measurement Application
N9080EM3E NB-IoT and eMTC FDD Measurement Application
N9080EM4E LTE V2X measurement application
N9081EM0E Bluetooth (TM) Measurement Application
N9082EM0E LTE and LTE-Advanced TDD Measurement Application
N9083EM0E Multi-Standard Radio (MSR) Measurement Application
N9084EM0E Short Range Communications and IoT Measurement Application
N9085EM0E 5G NR Measurement Application
N9085EM4E NR V2X Measurement Application
N9091EM0E Measuring Receiver Application
N9092EM0E Avionics Measurement Application
N90EMEDPB Enhance Display Package
N90EMEMCB Basic EMC Functionality
N90EMESCB External Source Control
N90EMFP2B Fast power
N90EMPSMB Power Suite Measurement Application
N90EMRBEB Resolution Bandwidth Extended
N90EMTDSB Time Domain Scan









N9030B Service Manual
N9030B Technical Specifications
Description Option Number Additional Information
User guides Standard US – English – Electronic
Power cord Standard Depends on the region of use
Adapter, 2.4 mm (f) to 2.4 mm (f) Standard Only for PXA with Option 544 or 550
Adapter, 2.4 mm (f) to 2.92 mm (f) Standard Only for PXA with Option 544 or 550
Receiver calibration (RCal) module U9361C/F/G/M Enables magnitude and complex corrections; see U9361C/F/G/M configuration guide (3120-1408EN) for details
Rack mount 1CM113A Adds rack mount flanges to the PXA
Front handles 1CN103A Adds front handles to the PXA
Rack mount with handles 1CP105A Adds rack mount flanges and handles to the PXA
Rack slide 1CR014A Adds a non-tilting rack slide to the PXA
USB DVD-ROM/CD-R/RW drive 1DVR001A Enhances the usability of the Windows operating system
Mouse, USB interface 1MSE001A Enhances usability of the 89600 VSA software
Minimum loss pad, 50 to 75 Ω (type-N to BNC) MLP001A 50 Ω type-N male to 75 Ω BNC female adapter
Frequency range: 9 MHz to 2 GHz
Input/output return loss: 20 and 11 dB
Insertion loss: 5.7 dB
Front panel cover CV1117A Protective cover for front panel
V-band waveguide harmonic mixer, 50 to 75 GHz M1970V-001 Requires Option EXM; USB mixer with smart features
Extended V-band waveguide harmonic mixer, 50 to 80 GHz M1970V-002 Requires Option EXM; USB mixer with smart features
E-band waveguide harmonic mixer, 60 to 90 GHz M1970E Requires Option EXM; USB mixer with smart features
W-band waveguide harmonic mixer, 75 to 110 GHz M1970W Requires Option EXM; USB mixer with smart features
E-band waveguide harmonic mixer, 60 to 90 GHz M1971E-001 Requires Option EXM; USB mixer with smart features and 3 signal paths
