Description
Accurate characterization is achieved with clean signals from the pattern generator, which features exceptionally low jitter and extremely fast transition times. Built-in and calibrated jitter source allow accurate jitter tolerance testing of receivers.
Test set-up is simplified significantly, because the J-BERT N4903B is designed to match serial bus standards optimally with its differential I/Os, variable voltage levels on most outputs, built-in jitter and ISI, pattern sequencer, reference clock outputs, tunable CDR, pattern capture and bit recovery mode to analyze clock-less and non-deterministic patterns.SER/FER analysis allows jitter tolerance testing of devices using retimed loopback. A second data output with independent pattern memory and PRBS can be used as an aggressor channel for crosstalk tests, or when adding channels externally for OOB timing tests or emulation of 3-level signals or signal de-emphasis.
Faster test execution is possible with J-BERT’s automated jitter tolerance tests fast total jitter measurements.
The J-BERT N4903B is a long-term investment which is configurable for today’s test and budget requirements but also allows upgrades from the N4903A model, and later retrofit of all options and full speed when test needs change
Keysight’s N4900 serial BERT series offers key benefits:
– Excellent precision and sensitivity for accurate measurements
– Choice of feature set and frequency classes to tailor to test needs and budget
– State-of-the-art user interfaces with color touch screen
– Remote control via LAN, USB and GPIB interfaces, compatible with existing command set
Keysight 71612, 81630A Series, N4900 Series
– Small form factor saves rack or bench space

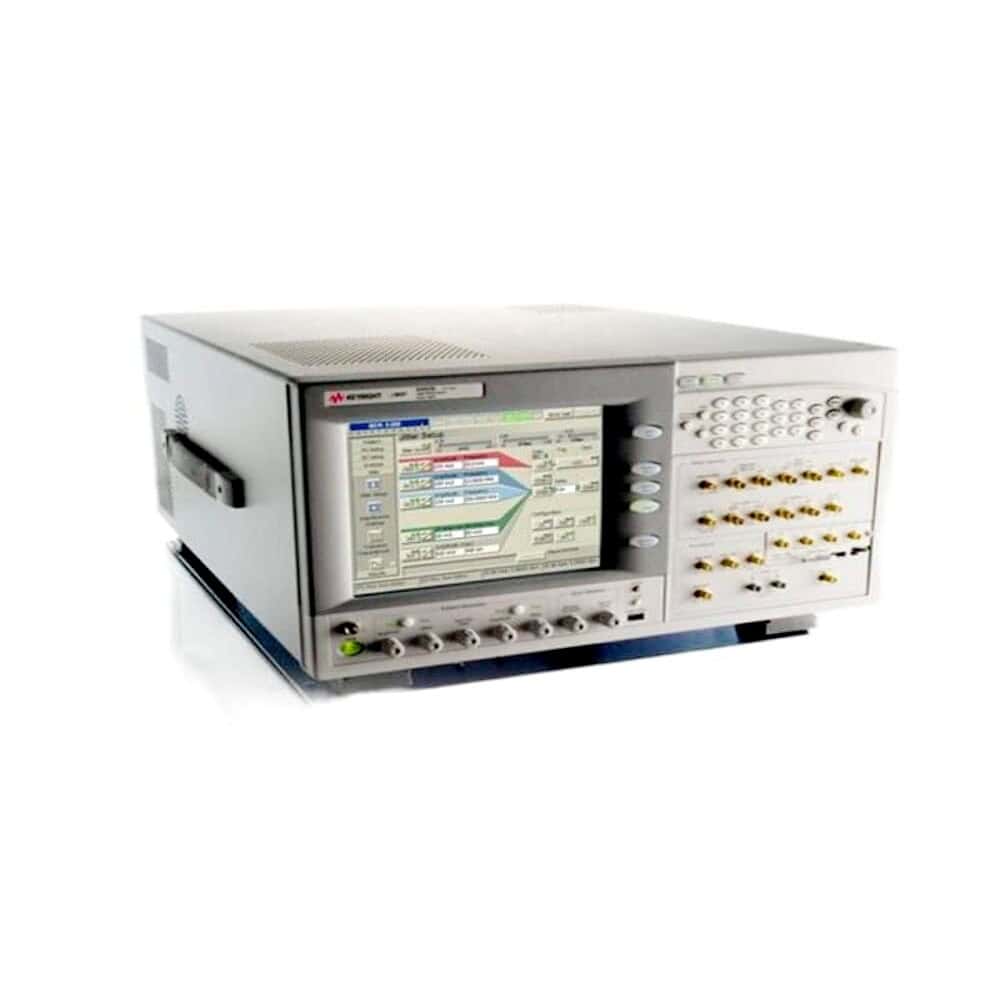

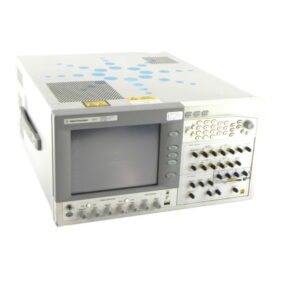

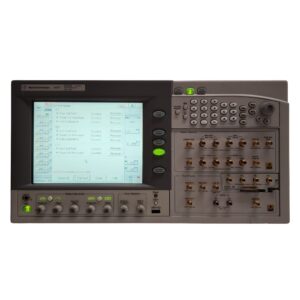

Keysight N4903B High-Performance Serial BERT, 12.5 GB/s
