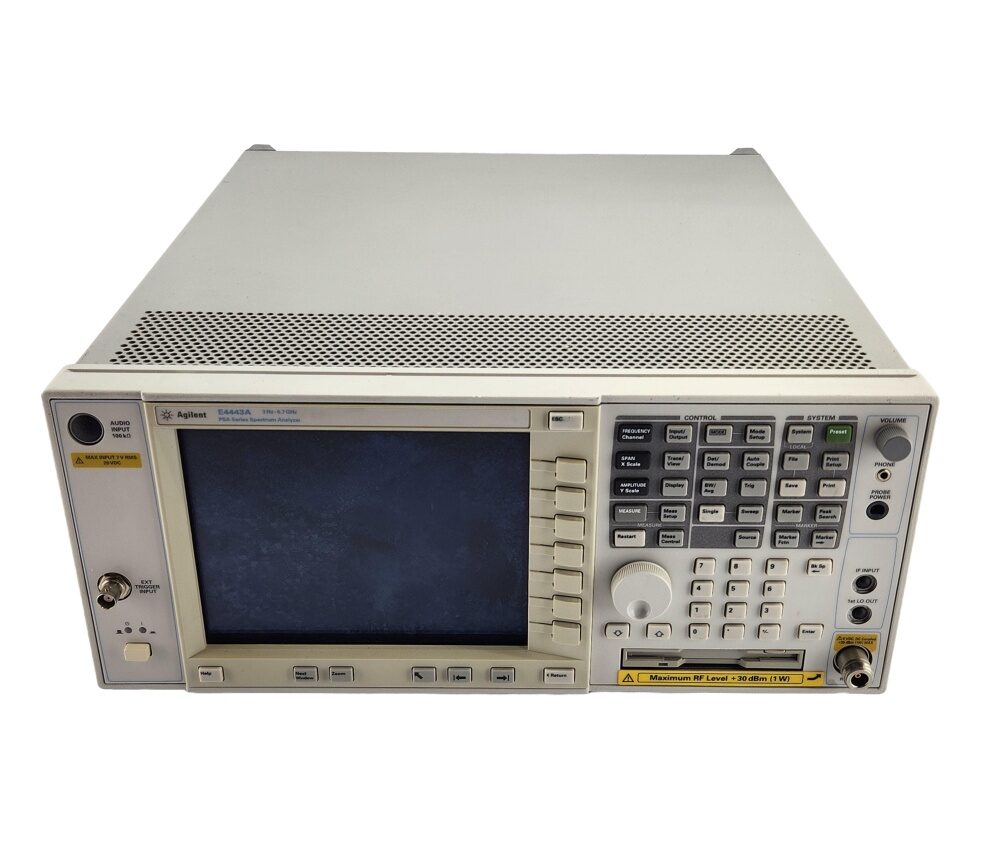

Keysight E4443A-111/115/1DS/219/226/241 PSA Series Spectrum Analyzer, 3Hz-6.7GHz
Keysight E4443A-111/115/1DS/219/226/241 PSA Series Spectrum Analyzer, 3Hz-6.7GHz
Keysight E4443A-111/115/1DS/219/226/241 PSA Series Spectrum Analyzer, 3Hz-6.7GHz
Keysight E4443A-111/115/1DS/219/226/241 PSA Series Spectrum Analyzer, 3Hz-6.7GHz
Keysight E4443A-111/115/1DS/219/226/241 PSA Series Spectrum Analyzer, 3Hz-6.7GHz

Keysight E4443A-111/115/1DS/219/226/241 PSA Series Spectrum Analyzer, 3 Hz – 6.7 GHz


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

Original price was: $10,295.00.Current price is: $9,000.00.

1 in stock

Keysight E4443A-111/115/1DS/219/226/241 PSA Series Spectrum Analyzer, 3 Hz – 6.7 GHz

The HP/Agilent E4443A PSA high-performance spectrum analyzer measures and monitors complex RF signals up to 6.7 GHz. Agilent E4443A Key Specifications Dynamic Range -155 dBm displayed average noise level (DANL) +17 dBm third order intercept (TOI) (+19 dBm typical) -116 dBc/Hz phase noise at 10 kHz offset (-118 dBc/Hz typical) Accuracy ±0.62 dB absolute amplitude accuracy (±0.24 dB typical) ±0.38 dB frequency response (±0.11 dB typical) ±0.07 dB log amplification linearity Speed Fast low-level spur search < 30 ms fast ACP measurement 50 measurements per second local update rate (45 for remote operation)

SKU: KEYE4443A-111/115/1DS/219/226/241 Categories: , , Tag:
Brand:

Description

Keysight E4443A-111/115/1DS/219/226/241 PSA Series Spectrum Analyzer, 3 Hz – 6.7 GHz

  • All-digital IF with auto-ranging capability
  • Phase noise optimization
  • Full detector suite
  • 160 resolution bandwidth settings (10% steps)
  • 2 dB step attenuator
  • FFT and swept measurement modes
  • Gated sweep
  • Power Suite one-button power measurements
  • EMI measurements with CISPR compliant bandwidths and detectors

Options

Option Description
111 USB device side I/O interface
115 512 MB user memory
1DS Internal Preamplifer
219 Noise Figure Measurement Personality
226 Phase Noise Measurement Personality
241 Flexible Digital Modulation Analysis

Additional information

Weight 50 lbs
Dimensions 22 × 17 × 8 in
Bandwidth

1 Hz-80 MHz
Condition

Model Number

E4443A
Frequency High Khz

6700000
Frequency Low Khz

0
High Frequency

6700000
High Power

6700000
Input Signal Range

-154 dBm +30 dBm
Low Frequency

0.003
Manufacturer

HP/Agilent
Noise Level

-156 dBc/Hz
Type
