Description

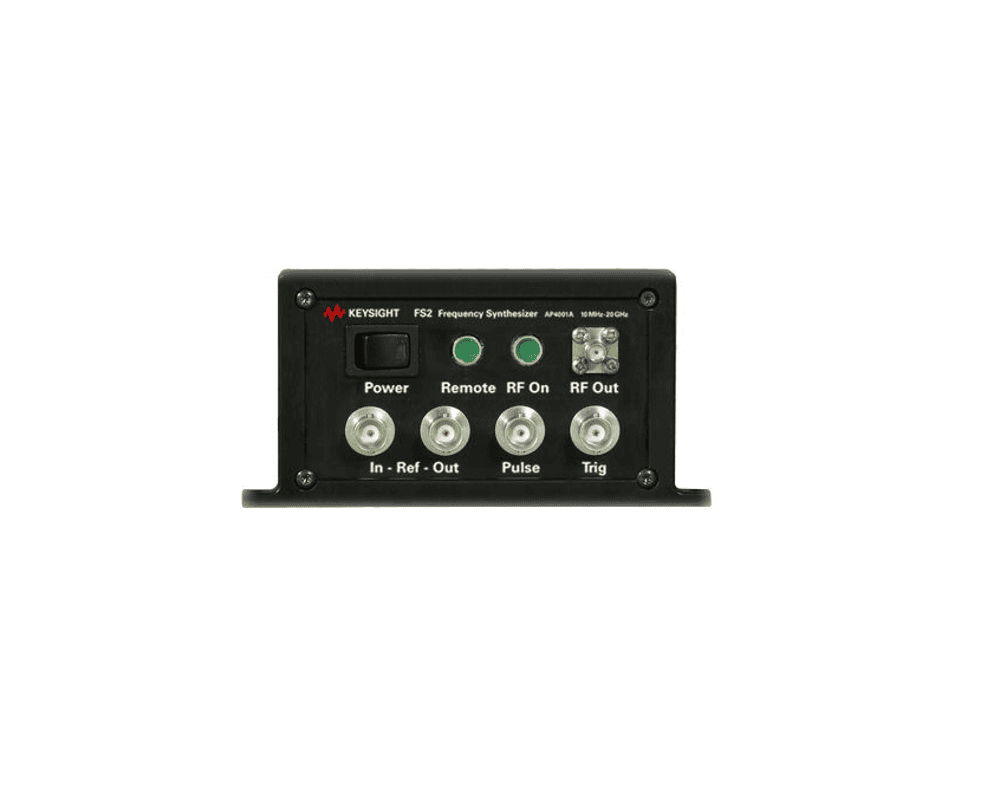

Keysight AP4001A Frequency Synthesizer, 20 GHz
With output power of up to +23 dBm, the AP4001A frequency synthesizer offers dedicated sweeping capabilities with switching speeds of 25 μs. It boasts frequency modulation as well as pulse modulation and is suitable for automated test equipment (ATE), telecom/satcom, and local oscillator (LO) applications.
- Phase-lock the high-stability internal reference to a programmable external reference
- Reduce switching speed below 25 μs with an optional fast-switching feature
- Control using USB or LAN interface and the SCPI-1999 command set
- Consume less than 10 W power with an external 6 V DC supply
