The 81553SM is a 1550 nm, single-mode, Laser Source Module that offers very good short-term and long-term stability. The high output power can be internally attenuated by up to 6 dB.
Read More

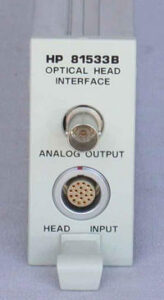

The Agilent 81533B Optical head interface allows older generation optical sensors to be used with newer generation mainframes. The 81533B can used to connect the following modules and mainframed together.
Read More
For serial applications, the 8118A offers two data channels with full pulse-generator capability so that limiting parametric conditions can be measured during functional test. The channels can be added in order to simulate multilevel codes, such as HDB3 or 2B1Q. 16-kb memory in each channel gives plenty of space for ISDN data frames. In addition to the built-in editor, a non-supported BASIC program is available for setting up data.
Read More
The Tektronix 80C10 module provides integrated and selectable reference receiver filtering, enabling conformance testing at either 1310 nm or 1550 nm for 39.813 Gb/s (OC-768/STM-256) and 43.018 Gb/s (43 Gb/s ITU-T G.709 FEC) rates. In addition to the filter rates, the user may also choose selectable bandwidths of 30 GHz, 65 GHz and 80 GHz for 80C10 for optimal noise vs. bandwidth performance for accurate signal characterization. The 80C10 is optionally available in a bundled ordering configuration which includes a 70+ GHz electrical sampling channel.
Read More
The Tek 80A06 PatternSync Trigger Module is programmable to pattern lengths of up to 223 bits and accepts a user supplied clock signal from 150 MHz to 12.75 GHz. The DSA8200 UI/PI for the 80A06 module offers pattern lengths from 2 to 223 bits and programs the module to within it’s hardware range (a pre-scaler followed by a counter with minimum count of 30) for the least-common-multiple count. The 80A06 PatternSync Trigger module is required for the DSA8200 Series when using 80SJNB advanced Jitter, Noise, and BER Analysis software package. When this module is used with the 82A04 Phase Reference module, the jitter floor is ≤200 fsRMS
Read More
The Giga-Tronics 80700A series power sensors provides system bandwidth up to 10 MHz to measure peak and avaerage power of wide band, third generation CDMA signals over an 80 dB range.
Read More
The Giga-tronics 80600A Series Modulated Power Sensors provide bandwidth up to 1.5 MHz to measure the peak and average power of CDMA signals.
Read More
The Giga-Tronics 80350A Peak Power Sensor can be used to directly measure the instantaneous peak power level of a pulse modulated signal.
Read More

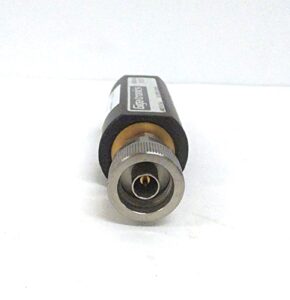

The Giga-Tronics 80301A CW power sensor allows you to measure CW power at more than 1,750 readings per second over GPIB. This sensor provides a wide 90 dB of range for maximum application flexibility.
Giga-Tronics 80301A Power Sensor, 10 MHz to 18 GHz, –70 to +20 dBm, 200mW CALIBRATED
Read More
