Tektronix DPO7254 Digital Oscilloscope, 4-Channel, 2.5 GHz with Options DDRA/DJA

May 30, 2023

The Tektronix DPO7254 is part of Tektronix’s new generation of real-time digital phosphor oscilloscopes and are the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging and testing sophisticated electronic designs.

Unit includes:

DDRA – DDR Memory Technology Analysis Package

DJA  –    Jitter and Eye-Diagram Analysis – Advanced

Read More

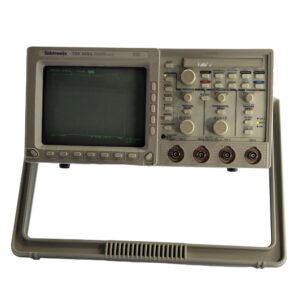

Tektronix TDS3054B Digital Phosphor Oscilloscope, 500 MHZ, 4-channel

Tektronix TDS3054B Digital Phosphor Oscilloscope, 500 MHZ, 4-channel with TDS3GM Module

July 10, 2018

Includes TDS3GM.   Unit is calibrated. If calibration expiration is less than 6 months, unit will be re-calibrated.

Re-Calibration can take up to 10 days.

The Tektronix TDS3054B packs the power of a DPO, digital real-time (DRT) sampling technology, WaveAlert waveform anomaly detection, OpenChoice documentation and analysis solutions, and five application-specific modules into a lightweight, battery-capable design. The TDS3054B DPO delivers 3,600 wfms/s continuous waveform capture rate to capture glitches and infrequent events three times faster than comparable oscilloscopes. Some oscilloscope vendors claim high waveform capture rates for short bursts of time, but your oscilloscope needs to deliver these fast waveform capture rates on a continuous basis – saving minutes, hours, or even days by quickly revealing the nature of faults so advanced triggers can be applied to isolate them. In addition, the TDS3054B DPO’s real-time intensity grading highlights the details about the “history” of a signal’s activity, making it easier to understand the characteristics of the waveforms you’ve captured.

Read More

Tektronix TDS3054B Digital Oscilloscope, 4-Channel, 500 MHz

December 23, 2022

The Tektronix TDS3054B packs the power of a DPO, digital real-time (DRT) sampling technology, WaveAlert waveform anomaly detection, OpenChoice documentation and analysis solutions, and five application-specific modules into a lightweight, battery-capable design. The TDS3054B DPO delivers 3,600 wfms/s continuous waveform capture rate to capture glitches and infrequent events three times faster than comparable oscilloscopes. Some oscilloscope vendors claim high waveform capture rates for short bursts of time, but your oscilloscope needs to deliver these fast waveform capture rates on a continuous basis – saving minutes, hours, or even days by quickly revealing the nature of faults so advanced triggers can be applied to isolate them. In addition, the TDS3054B DPO’s real-time intensity grading highlights the details about the “history” of a signal’s activity, making it easier to understand the characteristics of the waveforms you’ve captured.

Tektronix TDS3054B Digital Phosphor Oscilloscope, 500 MHZ, 4-channel

Read More

Tektronix TDS460A Digital Storage Oscilloscope, 400 MHz

July 10, 2018

-41.5% Accuracy
-100 MS/s Sample Rate
-2 and 4 Channels
-Record Lengths to 120 K (Opt. XL)
-Floppy Disk Storage
-Roll Mode Allows You to See Acquired Data Points Without Waiting for the Acquisition of the Complete Waveform
-Use the Video Trigger Mode to See NTSC, PAL, SECAM Signals or Your Own Custom Video Signals
-Capture Those Glitches with the 10 ns Peak Detect Mode

Read More
Tektronix  TDS1001B

Tektronix TDS1001B 40MHz 2 Channel Oscilloscope

July 10, 2018

With up to 100 MHz bandwidth and 1 GS/s sample rate, the TDS1000B Oscilloscope Series provides you with affordable performance in a compact design. Packed with standard features – including USB connectivity, 12 automated measurements, context-sensitive help, Probe Check Wizard and a Lifetime Warranty – the TDS1000B Oscilloscope Series helps you get more done, in less time.

Read More
Tektronix TDS2014C

Tektronix TDS2014C 100MHz 4 Channel Digital Storage Oscilloscope

July 10, 2018

The TDS2000C Oscilloscope Series provides you with affordable performance in a compact design. Featuring Tektronix proprietary technology, the digital real-time sampling architecture means you can accurately see small signal details. Every model is packed with standard features, including USB connectivity, 16 automated measurements, limit testing, built-in help menu and a Lifetime Warranty**. Get more done in less time with the TDS2000C Oscilloscope Series.

Read More
Tektronix DPO2004B

Tektronix DPO2004B Digital Phosphor Oscilloscope, 4-Channel, 70 MHz

July 10, 2018

Offering up to 200 MHz bandwidth and 1 GS/s sample rate, the MSO/DPO2000B Mixed Signal Oscilloscope Series provides advanced debug features at an entry-level price. With as many as 20 channels, you can analyze analog and digital signals with a single instrument. Combine that with automated serial and parallel bus analysis, FilterVu low-pass filter and innovative Wave Inspector® controls, and the MSO/DPO2000B Series provides the feature-rich tools you need to simplify and speed debug of your complex design.

Read More
Tektronix DPO3032

Tektronix DPO3032 300MHz 2 Channel Digital Phosphor Oscilloscope

July 10, 2018

With up to 500 MHz bandwidth and 2.5 GS/s sample rate, the MSO/DPO3000 Mixed Signal Oscilloscope Series provides the performance you need for many of today’s mainstream applications. With as many as 20 channels, you can analyze analog and digital signals with a single instrument. Combine that with automated serial and parallel bus analysis, innovative Wave Inspector® controls, and automated power measurements, and the MSO/DPO3000 Series provides the feature-rich tools you need to simplify and speed debug of your complex design.

Read More
Tektronix DPO3014

Tektronix DPO3014 100MHz 4 Channel Digital Phosphor Oscilloscope

July 10, 2018

With up to 500 MHz bandwidth and 2.5 GS/s sample rate, the MSO/DPO3000 Mixed Signal Oscilloscope Series provides the performance you need for many of today’s mainstream applications. With as many as 20 channels, you can analyze analog and digital signals with a single instrument. Combine that with automated serial and parallel bus analysis, innovative Wave Inspector® controls, and automated power measurements, and the MSO/DPO3000 Series provides the feature-rich tools you need to simplify and speed debug of your complex design.

Read More
