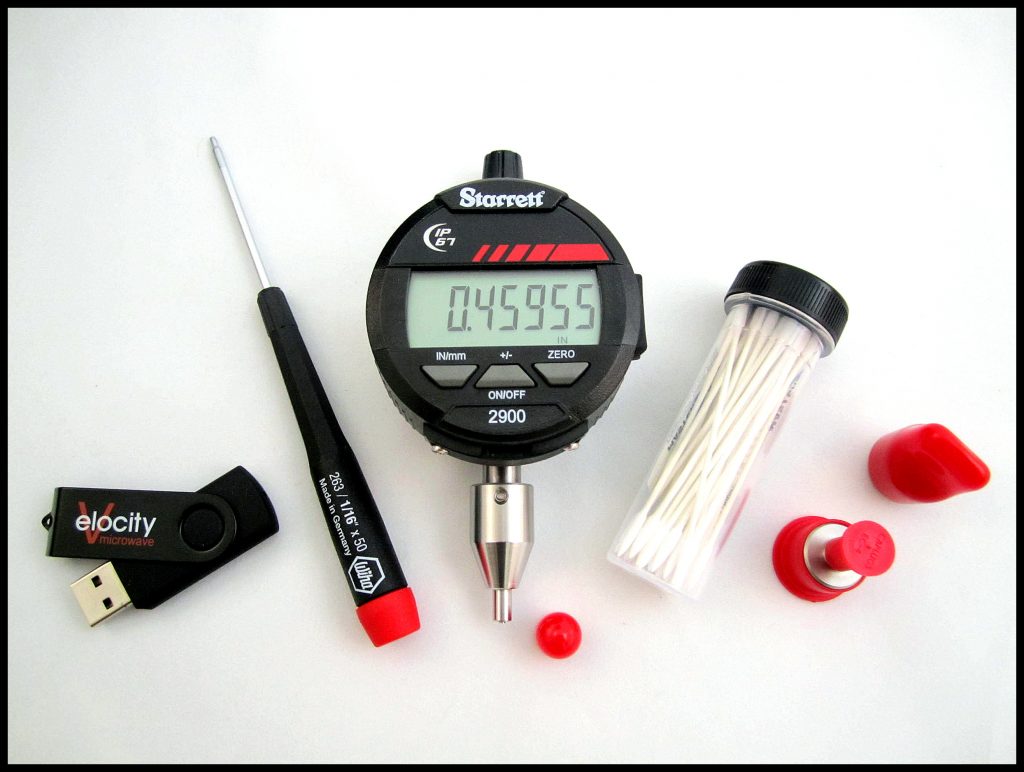

Velocity Microwave Datum Type-N Digital Gage Kit

Velocity Microwave offers a revolutionary, new gage family! The patented design allows both male and female connectors to be measured with a single gage saving both time and money.

Velocity Microwave Gage Family
• One gage/one bushing for male and female connectors
• Type N gages (all series) only need a single master gage.
• Modular Design: Reduces calibration expense.

DATUM Series
• Digital indicator with data port for computer interface
• Dual battery drive for long life
• Custom rear metal plate with compliance data for relevant standards
• Packaged in crush, water and dust-proof case
• +/- .00012 Accuracy
• A2LA compliant calibration certificate on a thumb-drive

SKU: VMDATUM-N Category: Tag: Brand:

Description

The Datum series of microwave connector gages is built on a field tested Mitutoyo digital indicator
featuring data output for computer interface, CE compliance, positive tactile feel for button
activation, intuitive layout and design, dual battery drive for long life, Absolute Sensor Technology that
remembers position and zero set point even after battery replacement, and best of breed +/-
0.00012 accuracy with A2LA cal certification.

The Datum series features a single bushing/rack patent pending design for the measurement of both
genders – and in the case of Type N connectors for the measurement relative to all Standards –
without any changes in master gage or underlying instrument. The series further features a custom
metal plate on the rear with permanently inscribed compliance data related to IEEE287LPC and
GPC, MIL-C-39012, and MIL-STD-348 as an aid in compliance evaluation.

All Datum gages are housed in a crush, water and dust proof NK-7 resin case featuring all stainless
hardware, an automatic pressure release valve, a Powerclaw latching system with soft grip handle
and die cut interior with accessories. The case is carry on compliant.



Additional information

Weight 5 lbs
Dimensions 10 × 8 × 6 in
Condition

Model Number

Datum SMA-D Dielectric Gage

Data Sheet

https://4gte.com/index.php/filemanager/datasheet/download/id/557/

Manual

Gage Instructional Manual https://4gte.com/index.php/filemanager/datasheet/download/id/547/

Manufacturer

Velocity Microwave

Type
