2 in stock

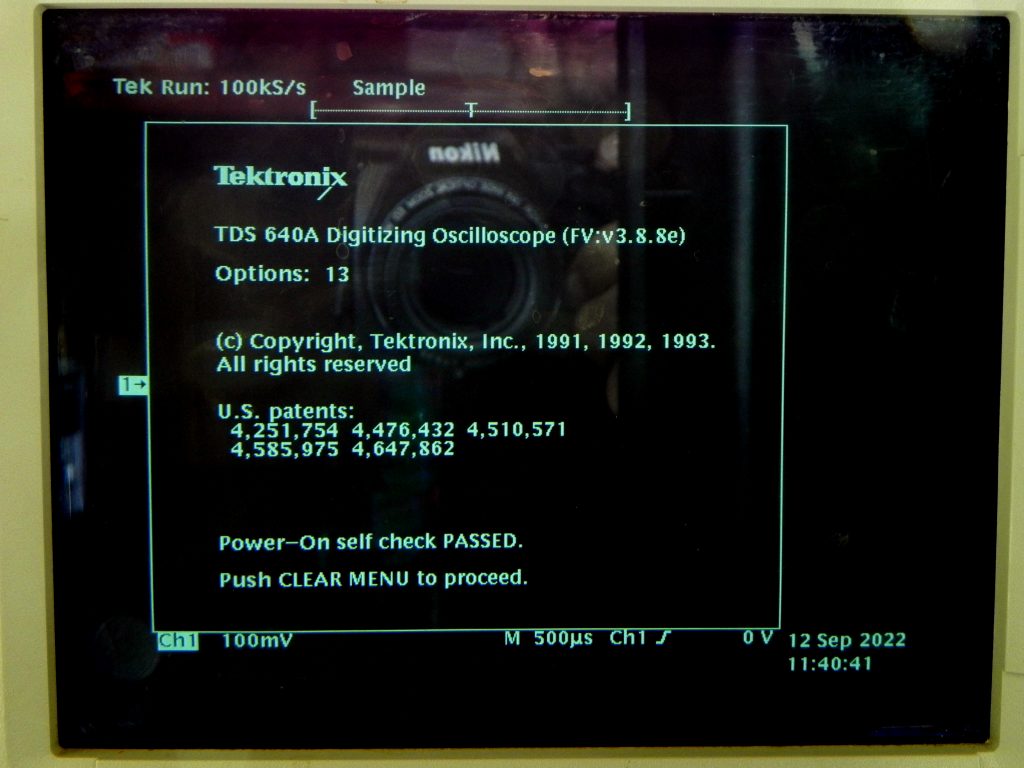

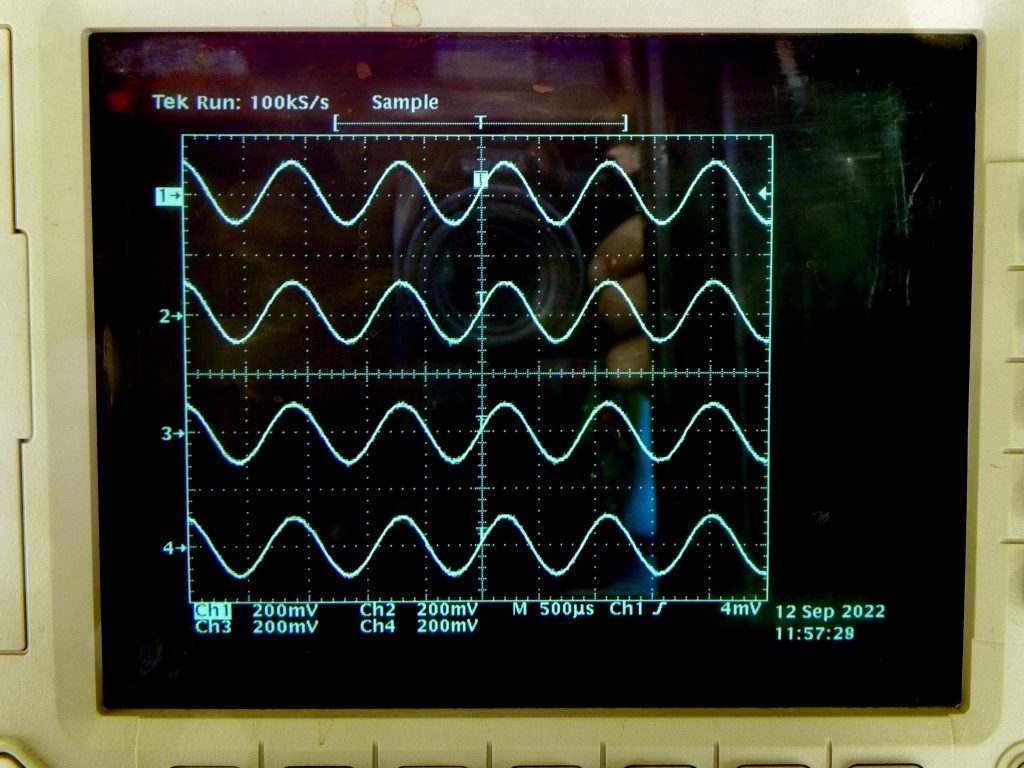

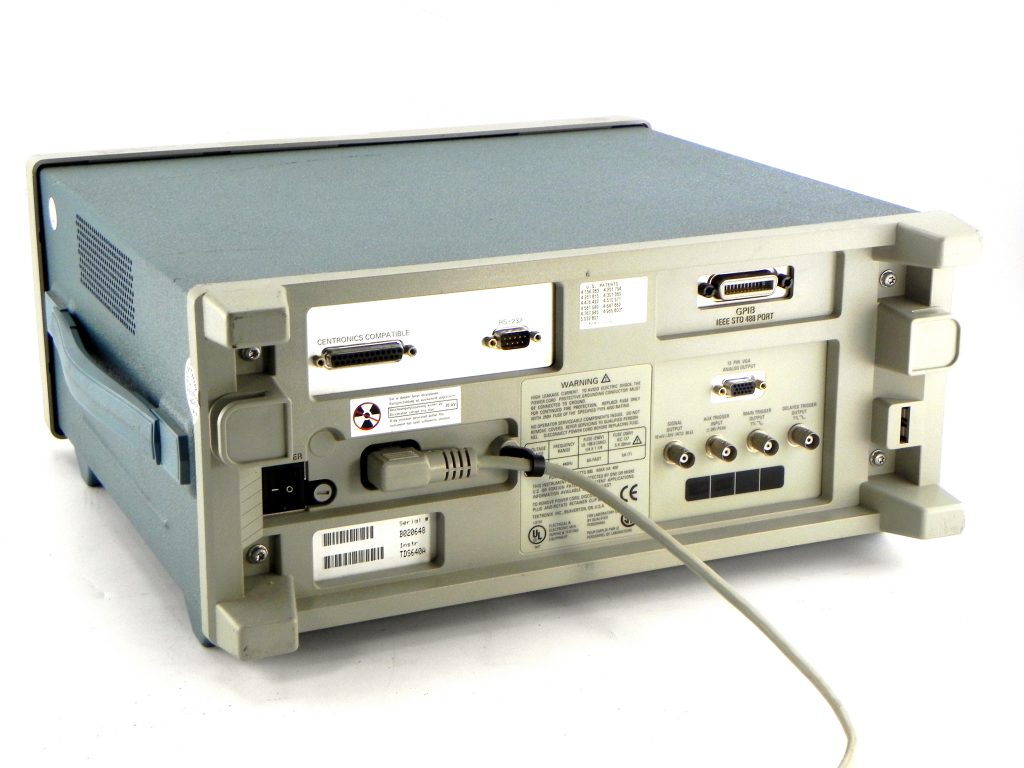

Tektronix TDS640A -013 4-Channel Digitizing Oscilloscope 500 Mhz 2 GS/s with Option 13
The TDS640A is a 500 MHz, 4 channel digital oscilloscope from Tektronix. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc.
Applications include troubleshooting, production test, and design.
Tektronix TDS640A -013 4-Channel Digitizing Oscilloscope 500 Mhz 2 GS/s with Option 13
| Bandwidth | 500ย MHz |
|---|---|
| Sampling rate | 2ย GS/s on all 4 channels |
| Time base | 500ย ps/Div to 5ย s/Div |
| Deflection | 1ย mV/Div to 10ย V/Div |
| Resolution | 8 bits |
| Record length | 500 to 2000 points |
| Input impedance | 1ย Mฮฉ // 10ย pF, or 50ย ฮฉ |
| Interface | GPIB standard |
| Weight | 29 lbs |
|---|---|
| Dimensions | 10 × 18 × 18 in |
