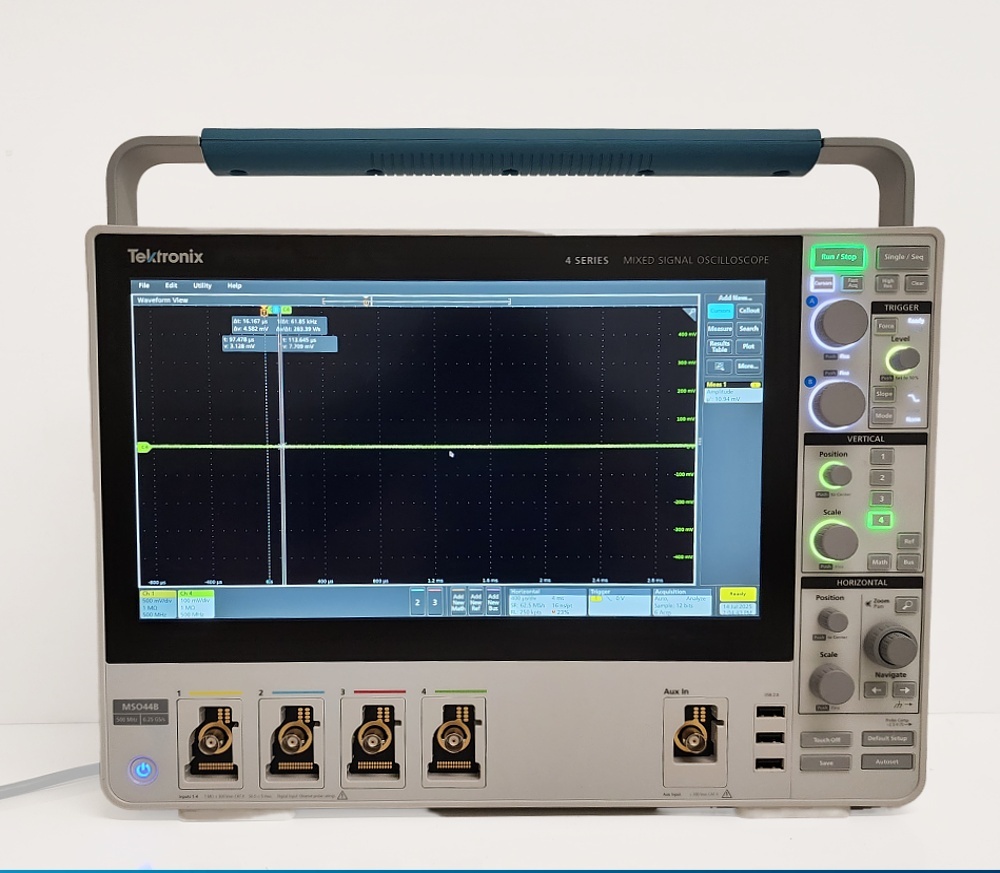

Tektronix MSO44B-4-BW-500 Mixed Signal Oscilloscope, 4/32 CH, 500 MHz, 6.25 GS/s, 4 Series B MSO includes (2 Sets) TTP0500B Probes

$14,800.00

Tektronix MSO44B-4-BW-500 Mixed Signal Oscilloscope, 4/32 CH, 500 MHz, 6.25 GS/s, 4 Series B MSO includes (2 Sets) TTP0500B Probes

1 in stock

Already own one?

Description

Tektronix MSO44B-4-BW-500 Mixed Signal Oscilloscope, 4/32 CH, 500 MHz, 6.25 GS/s, 4 Series B MSO includes (2 Sets) TTP0500B Probes

  • Analog Channels: 4

  • Digital Channels: 32
    Probe required to utilize digital channels (TLP058 sold separately)

  • Bandwidth: 350 MHz

  • Sampling Rate: 6.25 GS/s on all channels

  • Record Length: 31.25 Mpoints per channel (62.5 Mpoints optional)

  • Display Type: 13.3-inch TFT color, full HD (1920 x 1080) resolution,
    capacitive (multi-touch) touchscreen with gesture support

  • Resolution: 12-bit; up to 16-bit in Hi-Res mode

  • Waveform capture rate: >500,000 waveforms/s

  • Ports: 3 x USB2 and 2 x USB3 Host, 1 USB Device, 1 Etherne

Additional information

Dimensions 8 × 17 × 14 in
