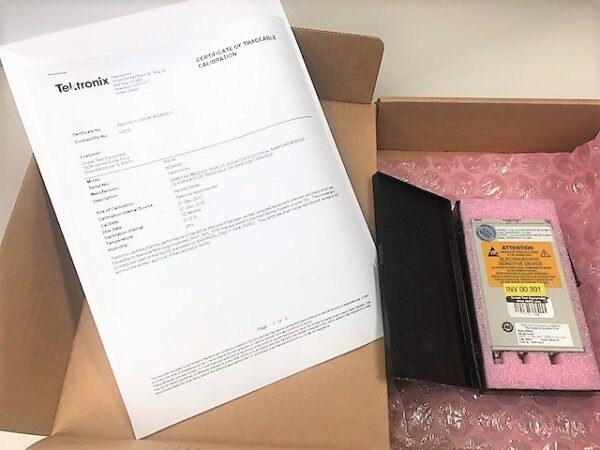

Tektronix 80E04 20 GHz 2Ch TDR Sampling Module, Includes Tektronix Calibration

Request Quote

The Tektronix 80E04 is a dual-channel Time Domain Reflectometry (TDR) sampling module. This sampling module provides an acquisition rise time of 17.5 ps or less, with a typical 20 GHz equivalent bandwidth. Each channel of the Tektronix 80E04 is capable of generating a fast step for use in TDR mode and the acquisition portion of the sampling module monitors the incident step and any reflected energy. The reflected rise time of the TDR step is 35 ps or less and the polarity of each channel’s step can be selected independently. This allows for differential or common-mode testing of two coupled lines, in addition to the independent testing of isolated lines. The Tektronix 80E04 characterizes crosstalk by using the TDR step to drive one line while monitoring a second line with the other channel. The “filter” function on the CSA8000/TDS8000 can be used with TDR or crosstalk measurements to characterize expected system performance with slower edge rates.

Request Quote

SKU: TEK80E04 Categories: , Tag:
Contact us today with your questions or to request a quote on this item.




Additional Information:

[Jump to Full Description]

Brand:

Description

Tektronix 80E04 Features & Benefits

20 GHz Bandwidth

Dual Channel

35 ps TDR Reflected Rise Time

True Differential TDR



Applications

Transmission Line Quality, Impedance Measurements, Crosstalk Measurements

Accessories

Part Number Description
Qty
004-5091-xx Transit Case
1
015-1022-xx SMA male 50-ohm termination
2
071-0434-04 User Manual
1

Options

Additional information

Weight 1 lbs
Dimensions 4 × 12 × 8 in
Channels

2

Condition

Model Number

8.00E+05

Frequency Low Khz

20000000

Low Frequency

20000000

Manufacturer

Tektronix

Type
