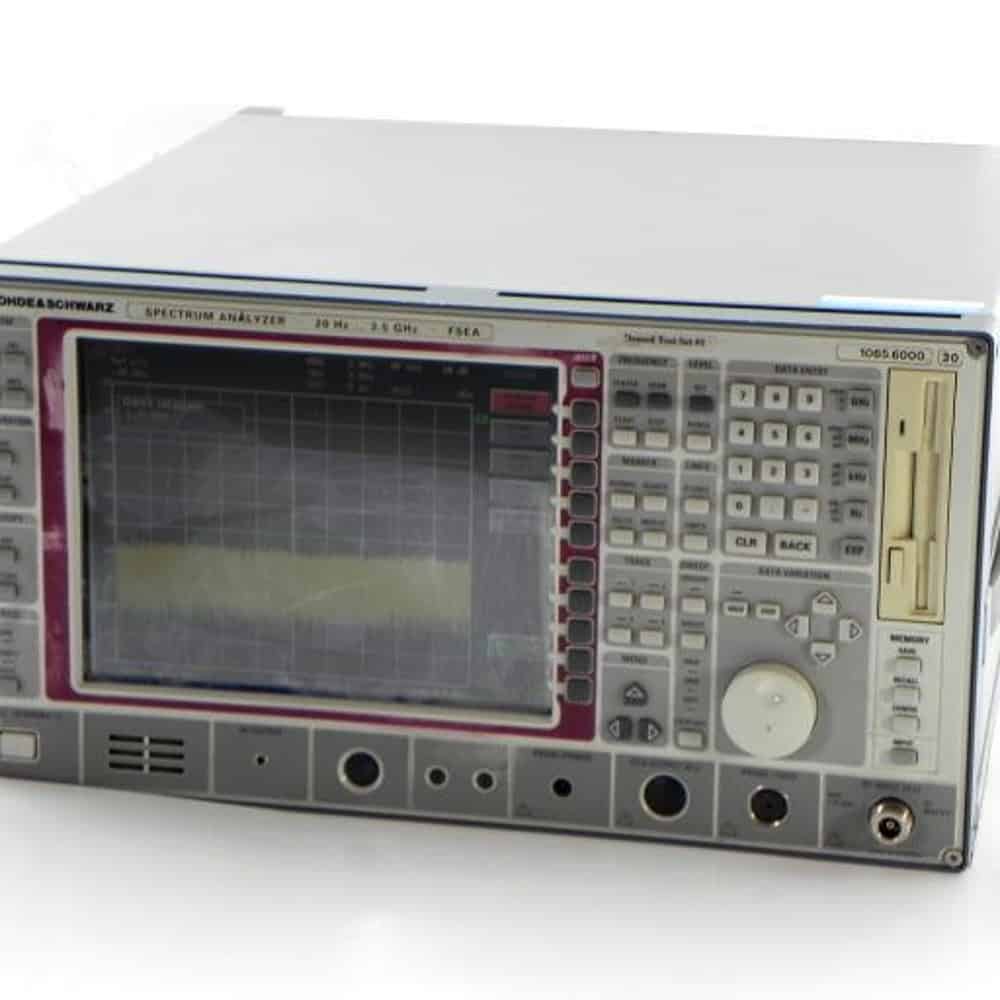

Rohde & Schwarz FSEA30 20 Hz to 3.5 GHz 1065.6000.30 Spectrum Analyzer, Options B4/B7/B15/B17


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

$3,950.00

1 in stock

Rohde & Schwarz FSEA30 20 Hz to 3.5 GHz 1065.6000.30 Spectrum Analyzer, Options B4/B7/B15

-Combines the following functions: spectrum analysis and analysis of digitally modulated signals (option)

– Spectrum analysis with maximum dynamic range

– Adaptation of all models to your specific requirements by means of a wide range of options

SKU: R&SFSEA30 - B4/B7/B15/B17 Category: Tag:
Brand:

Description

Rohde & Schwarz FSEA30 Spectrum Analyzer

โ—† Resolution bandwidths
1 Hz to 10 MHz,
adjustable in steps of 1/2/3/5/10
โ—† Displayed noise floor โ€“150 dBm (typ.)
in 10 Hz bandwidth
โ—† 3rd-order intercept point
+20 dBm typ.
โ—† 1 dB compression point of RF input
+10 dBm
โ—† Phase noise at 10 kHz from carrier:
โ€“123 dBc (Hz) (typ.) (FSEA 30)
โ—† Total level measurement uncertainty
up to 1 GHz <1 dB, up to 7 GHz 1.5 dB
โ—† AM/FM audio demodulator (with
built-in loudspeaker and headphones
connector)
โ—† Internal RF trigger (trigger threshold
approx. โ€“20 dBm)
โ—† 5 ms full-span sweep time with fully
synchronized sweep (FSEA, FSEB),
150 ms with FSEM, 230 ms with FSEK
โ—† 1 ยตs zero-span sweep time
โ—† Pretrigger and trigger delay
โ—† Gated sweep

Accessories

Options

Additional information

Weight 54 lbs
Dimensions 9 × 18 × 21 in
Condition

Model Number

FSEA30

Manufacturer

Rohde & Schwarz
