$21500.00
The E8362C provides advanced performance and measurement capabilities, and is specifically designed for more demanding applications such as high-accuracy mixer/converter test including absolute group delay, and antenna, pulsed-RF, and mm-wave measurements.
All E8362C’s are provided with NIST Traceable calibration and a one year warranty. Please contact us if Z540 or 17025 calibration is required.
| Image | Quantity | Price | Description | Add to Cart Button |
|---|---|---|---|---|
|

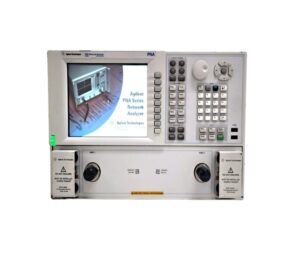

0 | Keysight E8362C-010/014/UNL/080/081/083 PNA Microwave Network Analyzer, 20 GHz | ||
|

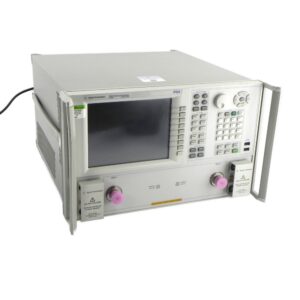

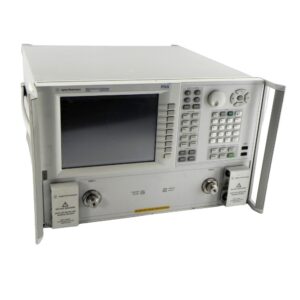

0 | $21500.00 | Keysight E8362C-010/014/UNL PNA Microwave Network Analyzer, 20 GHz | |
|
0 | Keysight E8362C-010/014 PNA Microwave Network Analyzer, 20 GHz |
– 10 MHz to 20 GHz
– 123 dB dynamic range and <0.006 dB trace noise
– <26 usec/point measurement speed, 32 channels, 20,001 points
– TRL/LRM calibration, on-wafer, in-fixture, waveguide, and antenna measurements
– Mixer conversion loss, return loss, isolation, and absolute group delay
– Amplifier gain compression, harmonic, IMD, and pulsed-RF
| Weight | 65 lbs |
|---|---|
| Dimensions | 8 × 12 × 20 in |
| KEYE8362C | KEYE8362C-010/014/UNL, KEYE8362C-010/014, KEYE8362C-010/014/UNL/080/081/083 |
| 014 | Configurable test set |
| UNL | Extended power range and bias-tees |
| 016 | Add receiver attenuators |
| 022 | Extended memory |
| 080 | Frequency offset |
| 081 | Reference receiver switch |
| 083 | Frequency-converter measurement application |
| H11 | IF access (for antenna and pulsed-RF measurements) |
| H08 | Pulsed-RF measurement capability |
| 010 | Time-domain capability |
| 550 | 4-port measurement application |
| 1CM | Rack mount kit without handles |
| 1CP | Rack mount kit with handles |
| N4688A | USB CD R/W drive |
| N4689A | USB Hub |
| GTE Standard Accessories: |
| Power cord |
| Manuals |
