Sale!

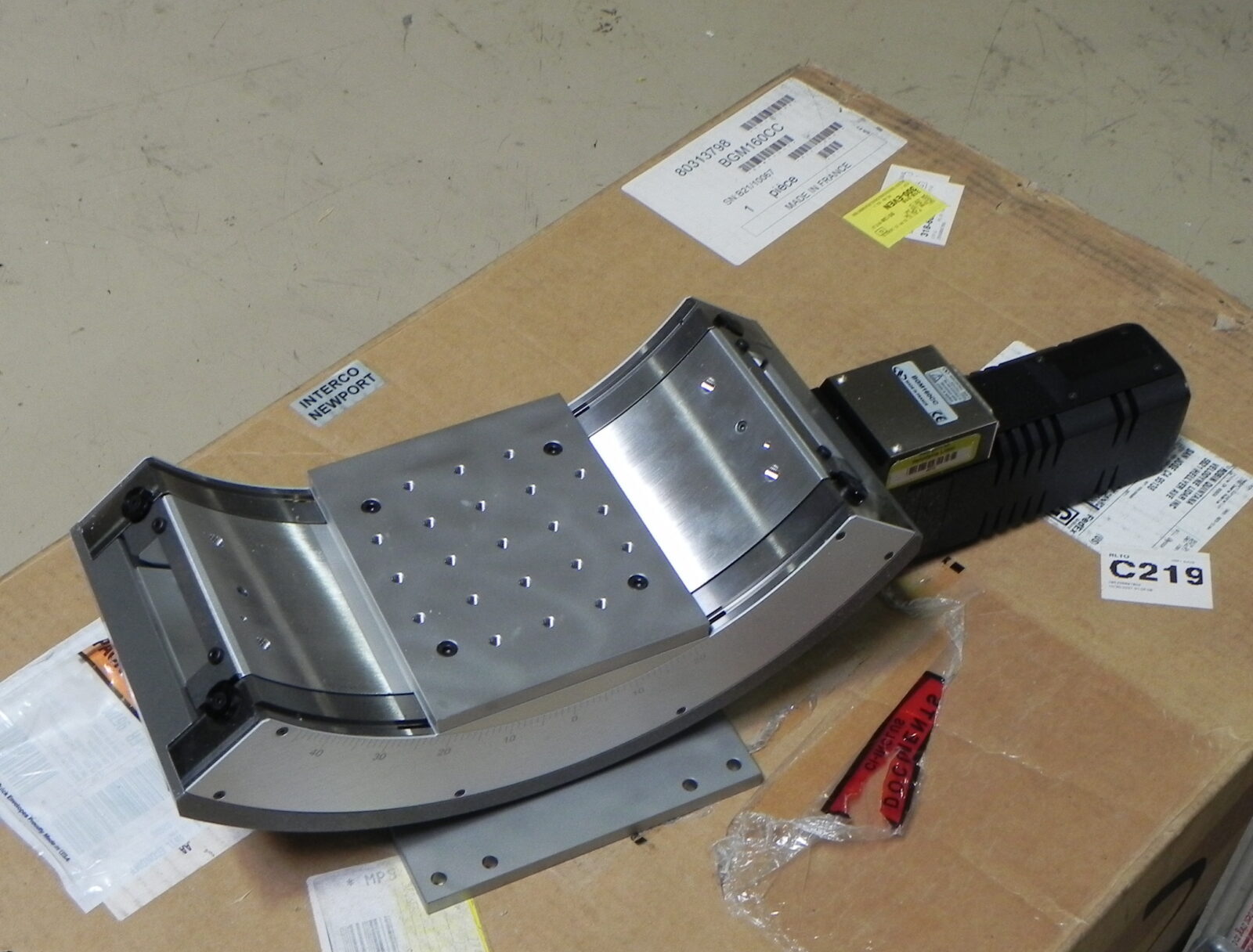

Newport BGM160CC Motorized Goniometer Cradle. New – Open Box


General Inquiries/Quote Request

Original price was: $21,500.00.Current price is: $19,350.00.

1 in stock

Newport BGM160CC Motorized Goniometer Cradle. New – Open Box

SKU: NEWBGM160CC-NOB Categories: ,
Brand:

Description

Newport BGM160CC Motorized Goniometer Cradle. New – Open Box

The M-BGM120CC Metric Goniometer uses a high torque DC motor. This motor also features a built-in tachometer to provide superior speed stability. BG Series goniometric cradles rotate on a transverse axis above the platform. Compared to full 360ยฐ rotation stages, they offer maximum free access to the rotating part and allow construction of very compact multi-axis rotation assemblies. BG cradles are designed so that orthogonal mounting of two adjacent-size cradles (e.g., BGS50 and BGS80) provides two perpendicular rotational axes intersecting at about the same point in space. Mounting a rotation stage under the assembly adds a third orthogonal rotation axis through the same point. Precision rotation is ensured by a precision ground, hardened worm gear drive. Single row ball bearings and precision ground tool-steel races ensure smooth rotation with minimal wobble and eccentricity. A home switch, conveniently located at the center of travel, facilitates the return of the platform to a level position.

Additional information

Weight 53 lbs
Dimensions 31 × 21 × 14 in
