Description

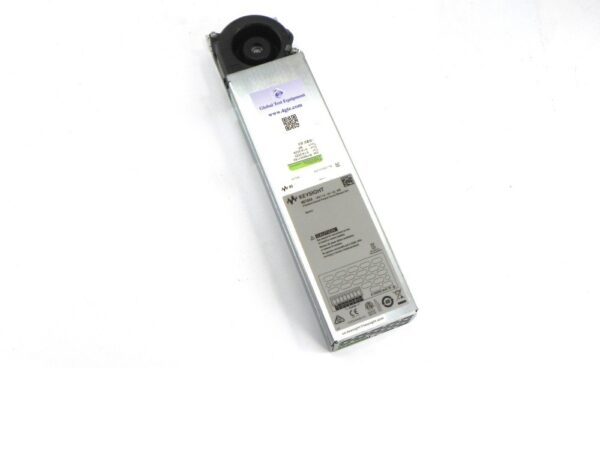

Keysight N6784A 4-Quadrant General-Purpose Source/Measure Unit, ±20 V, ±1 A or ±6 V, ±3 A, 20 W
Output Ratings:
- Voltage: Up to ±20 V
- Current: Up to ±3 A
- Power: 20 W
Programming Accuracy (at 23°C ± 5°C after 30-minute warm-up. Applies from min. to max. program):
- Voltage, 20 V range: 0.025% + 1.8 mV
- Voltage, 6 V range: 0.025% + 600 µV
- Current, 3 A and 1 A ranges: 0.04% + 300 µA
- Current, 10 mA range: 0.25% + 5 µA
Output Programming Speed:
- The output voltage can change in 10 µs or at 100 kHz into a resistive load.
Measurement Accuracy (at 23°C ± 5°C):
- Voltage, 20 V range: 0.025% + 1.2 mV
- Current, 3 A range: 0.03% + 250 µA
- Current, 100 mA range: 0.025% + 10 µA
- Current 10 µA range: 0.025% + 8 nA
