Description

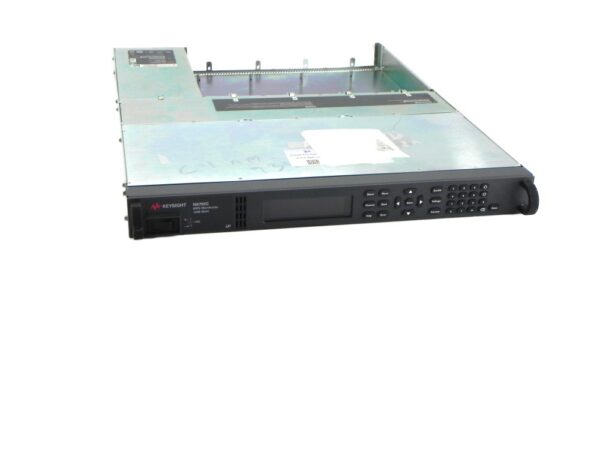

Keysight N6702C Low-Profile Modular Power System Mainframe, 1200W, 4 Slots
Maximum Total Output Power (= Sum of Total Module Output Power)
- 1200 W when operating from 200 – 240 VAC input
- 600 W when operating from 100 – 120 VAC input
AC Input
- Nominal Input Ratings: 100 VAC – 240 VAC; 50/60/400 Hz
- Input Range: 86 VAC – 264 VAC
- Power Consumption: 3000 VA typical
- Fuse Internal fuse (not customer accessible)
Protection Response Characteristics
- INH input: 5 µs from receipt of inhibit to start of shutdown
- Fault on coupled outputs: < 10 µs (from receipt of fault to start of shutdown)
