Description

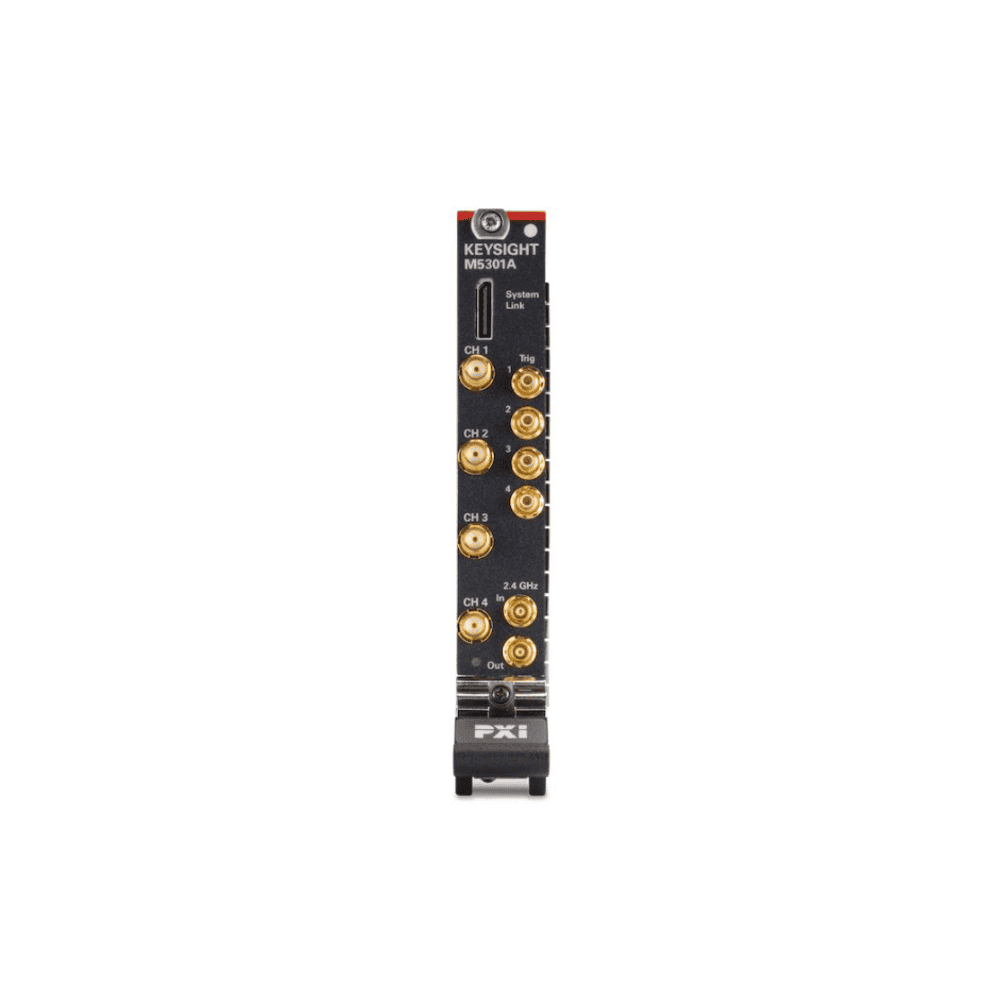

The M5301A is a single-slot PXIe module with four baseband AWG outputs, clock input and output, and four triggers. It provides high performance with easy-to-use programming libraries, real-time sequencing technology, and FPGA programming.
The M5301A baseband AWG module supports analog waveforms from 0 to 400 MHz with 400 MHz of bandwidth. The waveforms can be played from onboard memory as part of an HVI sequence.
- Single PXIe slot with 4 channels
- Creation of analog waveforms from 0 to 400 MHz
- Waveform memory of 1 GSa per channel
- PathWave FPGA with user-customizable accessible area
