Description

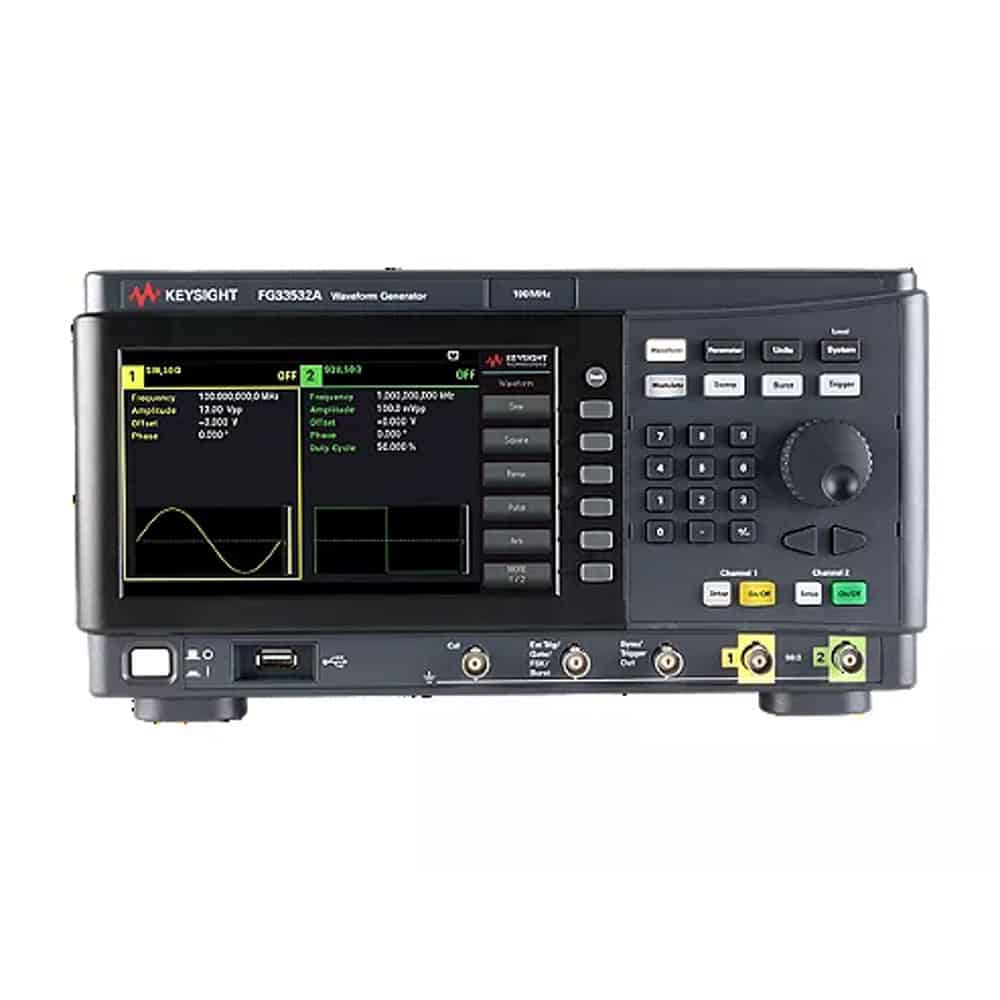

Perform accurate hardware design validation using Keysight FG33532A function / waveform generators, equipped with pro-level technology from advanced models. Trueform technology employs a virtual variable clock with advanced filtering techniques to track the waveform’s sample rate. The technology gives you predictable low jitter, low harmonic distortion, and high signal integrity to deliver a true representation of your programmed waveform. The FG33532A also comes with built-in 16-bit arbitrary waveform generation capabilities and waveform builder software.
- View and edit signal, or set up parameters simultaneously on a 7-inch color display.
- Achieve jitter of less than 50 ps.
- Maintain total harmonic distortion of less than 0.06%.
- Enable 16-bit arbitrary waveform capability with up to 16 M samples per channel memory.
- Simulate typical test applications with six built-in modulation types and 17 popular waveforms.
