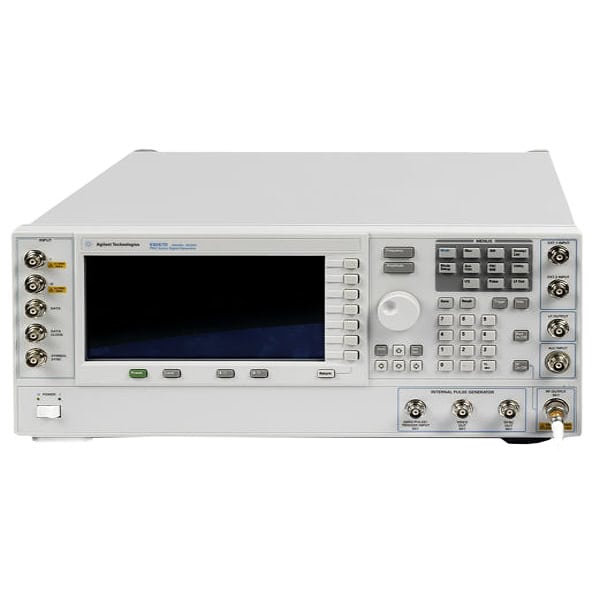

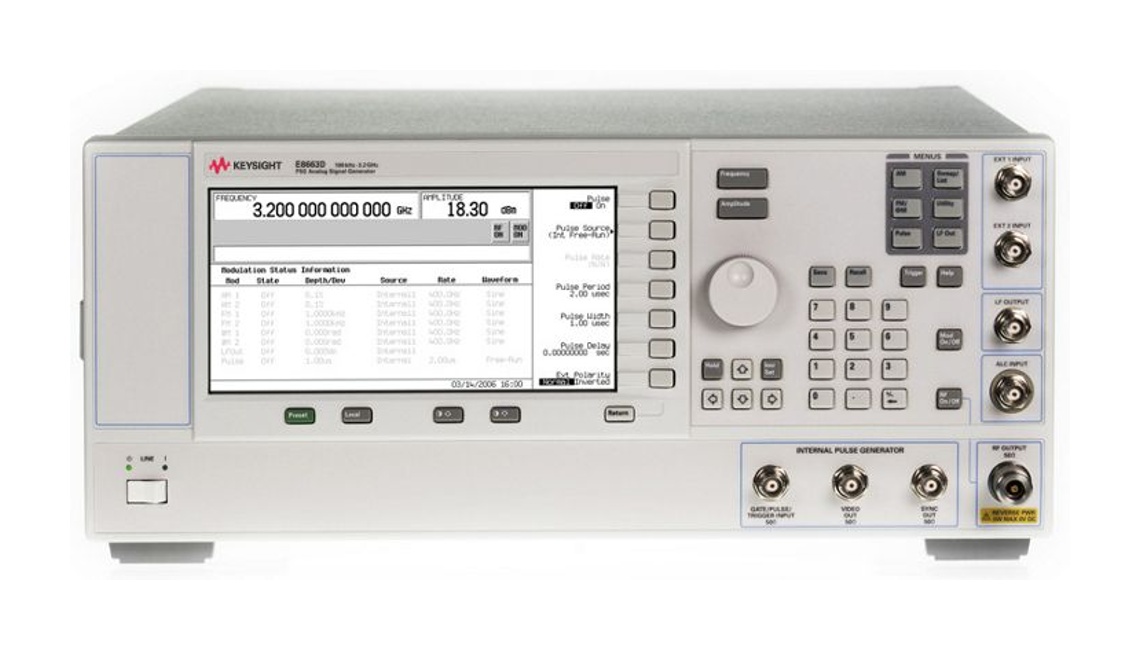

Keysight E8663D PSG Analog Signal Generator 100 kHz to 9 GHz
All E8663D’s are provided with NIST Traceable calibration and a one year warranty. Please contact us if Z540 or 17025 calibration is required.
Please give us to call at 866-409-0400 to discuss when you can expect this product back in stock.
| Image | Stock | Price | Action | Description |
|---|---|---|---|---|
|

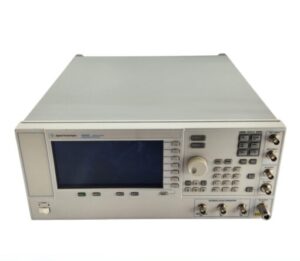

0 | $ | Keysight E8663D-503/UNX 100kHz-3.2GHz PSG Analog Signal Generator | |
|
0 | $ | Keysight E8663D-509/007/1E1/UNT/UNX 100 kHz to 9 GHz PSG Analog Signal Generator | |
|

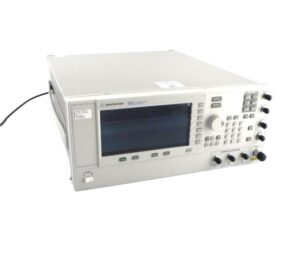

1 | $ 13950.00 | Keysight E8663D-503/UNU/UNX 100kHz-3.2GHz PSG Analog Signal Generator |
Keysight E8663D PSG Analog Signal Generator 100 kHz to 9 GHz
| Weight | 40 lbs |
|---|---|
| Dimensions | 11 × 21 × 24 in |
| Option Sets | 503/UNU/UNX, 509/007/1E1/UNT/UNX, 503/UNX |
| Option | Description |
| 503 | Frequency range: 100 kHz to 3.2 GHz |
| 509 | Frequency range: 100 kHz to 9.0 GHz |
| 063 | E8663B backwards compatibility option bundle |
| UNM | Standard front and rear panel connector configuration |
| UNT | AM, FM, Phase modulation, and LF output |
| UNW | Narrow pulse modulation (20 ns minimum pulse width) |
| UNX | Ultra low phase noise |
| UNY | Enhanced ultra-low phase noise performance |
| 1SM | Scan Modulation |
| 1E1 | Step attenuator (-135 dBm to max power) |
| 1EH | High output power |
| 007 | Analog ramp sweep |
| 008 | Removable flash memory (8 GB) |
| 1CP | Rackmount flange with front handle kit |
| 1EM | Moves all front panel connectors to the rear panel |
| U02 | Aeroflex 2040 programming language compatibility |
| Part Number | Description |
Qty
|
| Power Cord | 1 |
