$19,500.00

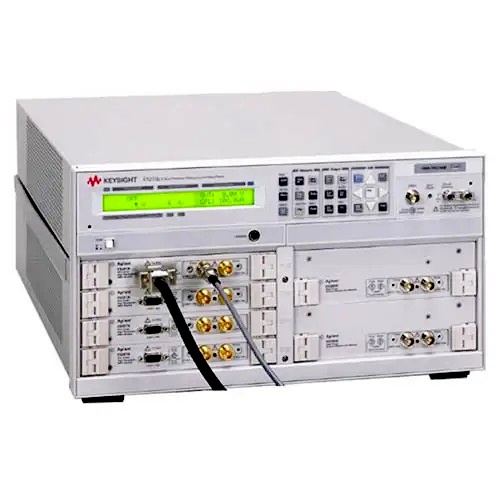

Keysight E5270B Precision IV Analyzer is the complete solution for current-voltage characterization of a wide range of materials and devices with the current measurement performance as low as 0.1 fA.
All E5270B’s are provided with NIST Traceable calibration and a one year warranty. Please contact us if Z540 or 17025 calibration is required
| Image | Stock | Price | Action | Description |
|---|---|---|---|---|
|

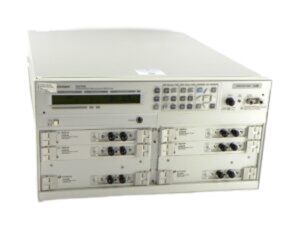

1 | $ 19500 | Keysight E5270B-030-060 Precision IV Analyzer / 8 Slot Precision Measurement Mainframe Includes (2)-A10 (4)-A11 OEM CAL | |
|
-1 | $ 19500 | Keysight E5270B-(2) A10's and (3) A11's Precision IV Analyzer / 8 Slot Precision Measurement Mainframe |
Keysight E5270B Precision IV Analyzer is the complete solution for the current-voltage characterization of a wide range of materials and devices. The E5270B supports multiple SMUs (Source/Monitor Units) for voltage/current sourcing and voltage/current measurement with the current measurement performance as low as 0.1 fA. Its modular architecture allows you to configure or upgrade SMU modules for available eight slots. The EasyEXPERT group+ GUI based characterization software is furnished and available on your PC to support all the tasks required in the characterization from the measurement setup to the data analysis. Powerful integration of SMU’s versatile measurement capabilities and GUI based characterization software makes the E5270B the best solution for characterization and evaluation of devices, materials, semiconductors, active/passive components, or virtually any other type of electronic device with uncompromised measurement reliability and efficiency.
| Weight | 60 lbs |
|---|---|
| Dimensions | 9 × 18 × 26 in |
| E5270B | KEYE5270B-030/060/A10(2)/A11(4) JP10M00450, KEYE5270B-E5280B/E5280B/E5281A/E5281A/E5281B |
| Option | Description |
| A02 | Two Mid Power Sourced/Monitor Unit – 2 Cables |
| A03 | Four High Power Source/Monitor Unit – 4 Cables |
| A10 | Add one High Resolution Source/Monitor Unit – 1 Cable (E5280B |
| A11 | Add one Mid Power Source/Monitor Unit – 1 Cable (E5281B |
| A17 | Add one High Resolution Source/Monitor Unit – 1 Cable (E5287A) |
| A28 | Add Atto sense and switch unit (ASU) (E5288A ASU) |
| 050 | 50Hz Line Frequency |
| 060 | 60Hz Line Frequency |
| Power cord |
