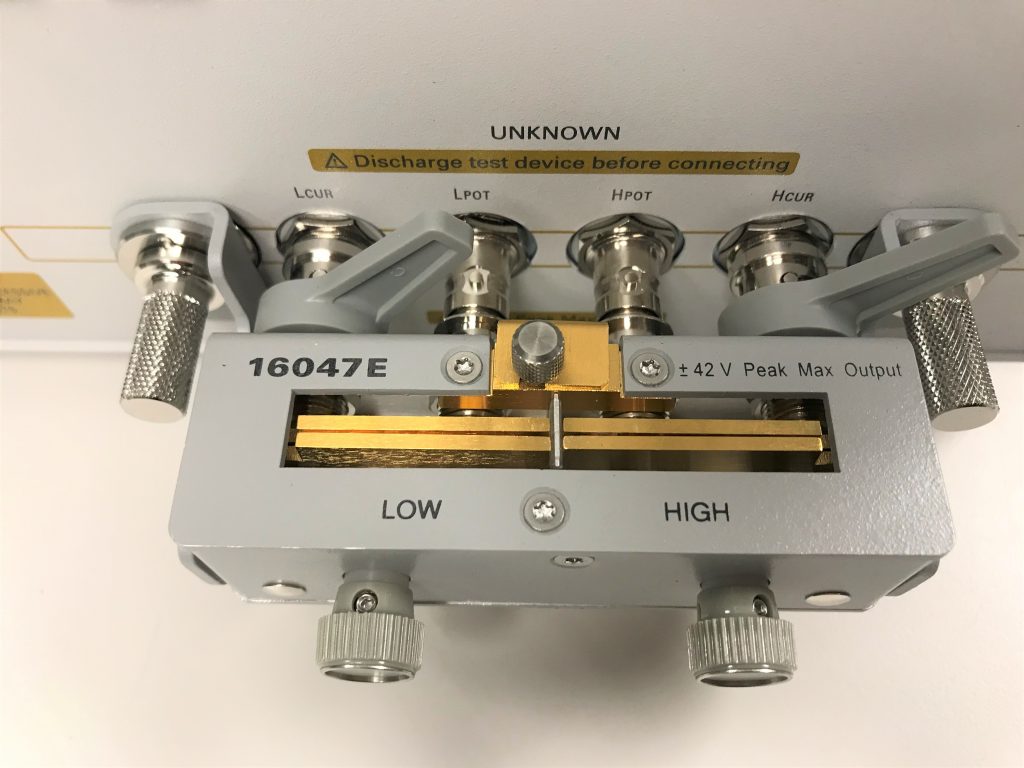

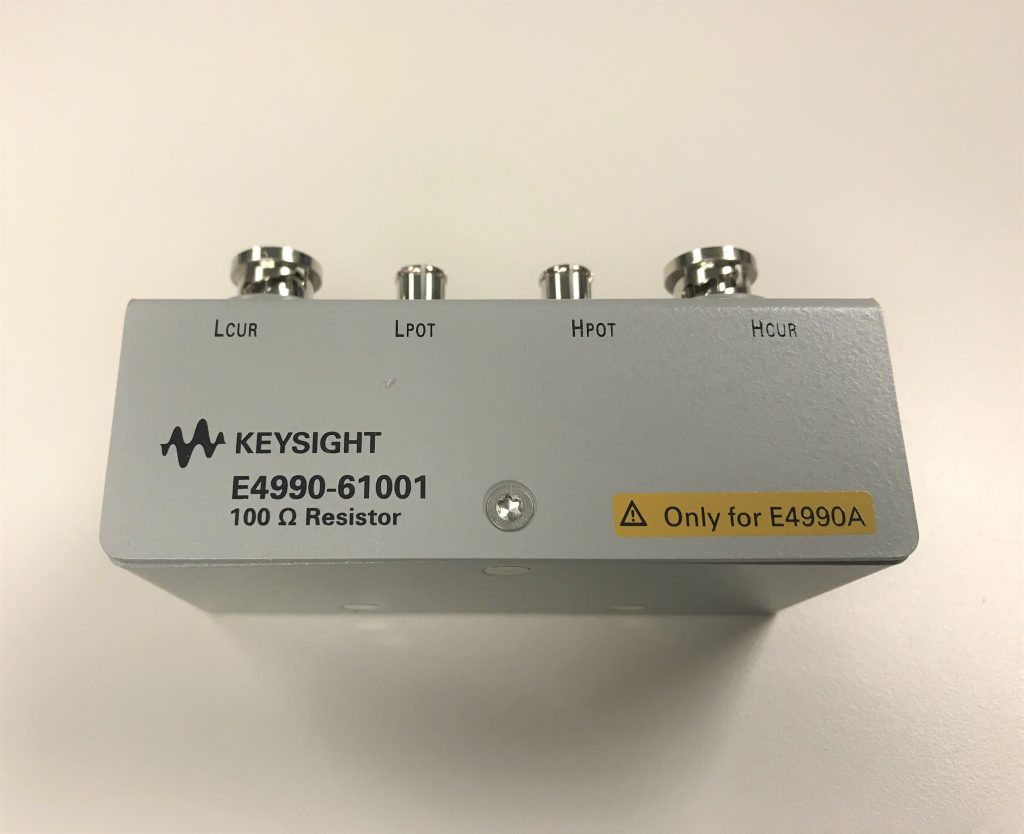

Keysight E4990A 20 MHz Impedance Analyzer, Includes Options 001/020, 16047E and E4990-61001


General Inquiries/Quote Request
Rental/Lease Information Request

Keysight E4990A 20 MHz Impedance Analyzer, Includes Options 001/020, 16047E and E4990-61001

Option 001 – Enhance Measurement Speed

Option 020 –  20 Hz to 20 MHz

SKU: KEYE4990A-001-020 Categories: , Tag:
Brand:

Description

Keysight E4990A 20 MHz Impedance Analyzer, Includes Options 001/020, 16047E and E4990-61001

  • Five frequency options; 20 Hz to 10/20/30/50/120 MHz, upgradable
  • ±0.08% (typical ±0.045%) basic impedance measurement accuracy
  • 25 mΩ to 40 MΩ wide impedance measurement range (10% measurement accuracy range)
  • Measurement parameters: |Z|, |Y|, θ, R, X, G, B, L, C, D, Q, Complex Z, Complex Y, Vac, Iac, Vdc, Idc
  • Built-in DC bias range: 0 V to ±40 V, 0 A to ±100 mA
  • Enhanced measurement speed option (option 001. For 10M/20M/30M/50M options only)
  • 4-channel & 4-trace on 10.4 inch color LCD with touch screen
  • Data analysis function: Equivalent circuit analysis, limit line test

Additional information

Weight 35 lbs
Dimensions 12 × 22 × 26 in
