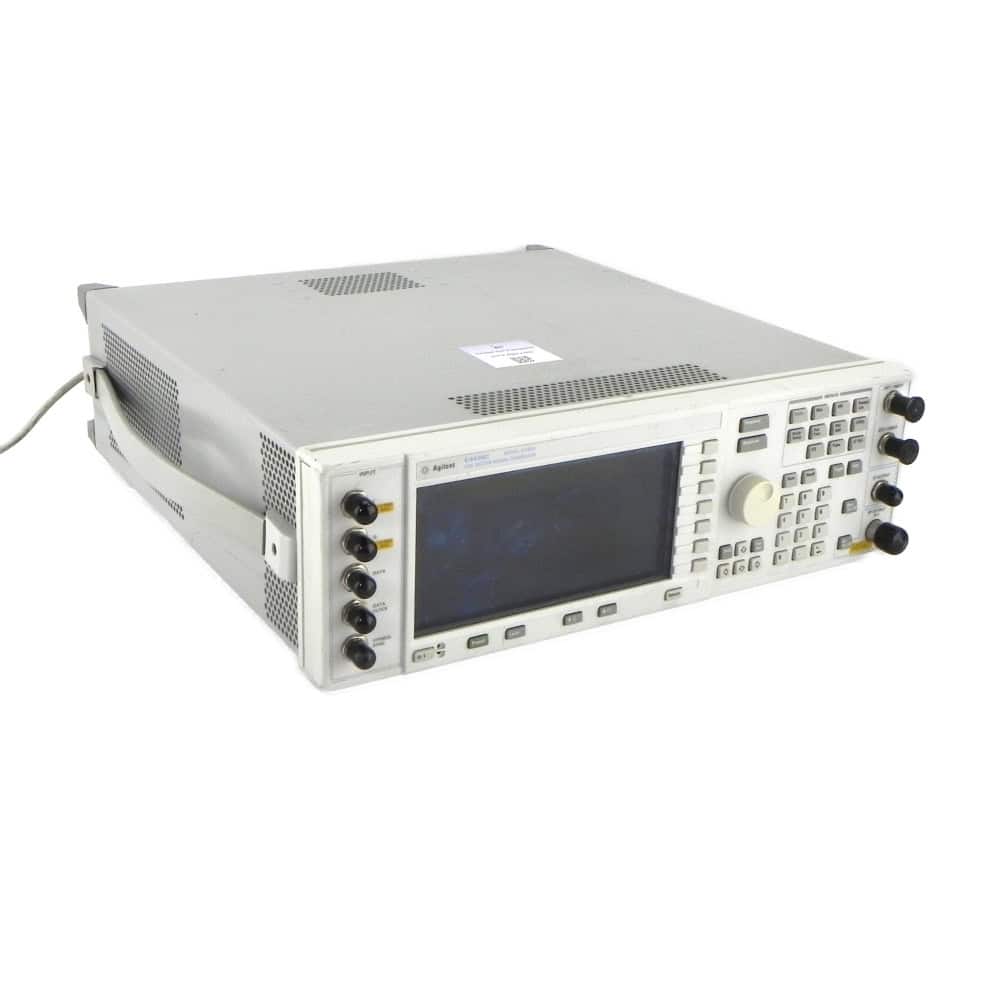

Keysight E4438C ESG Vector Signal Generator for RF testing and measurement.

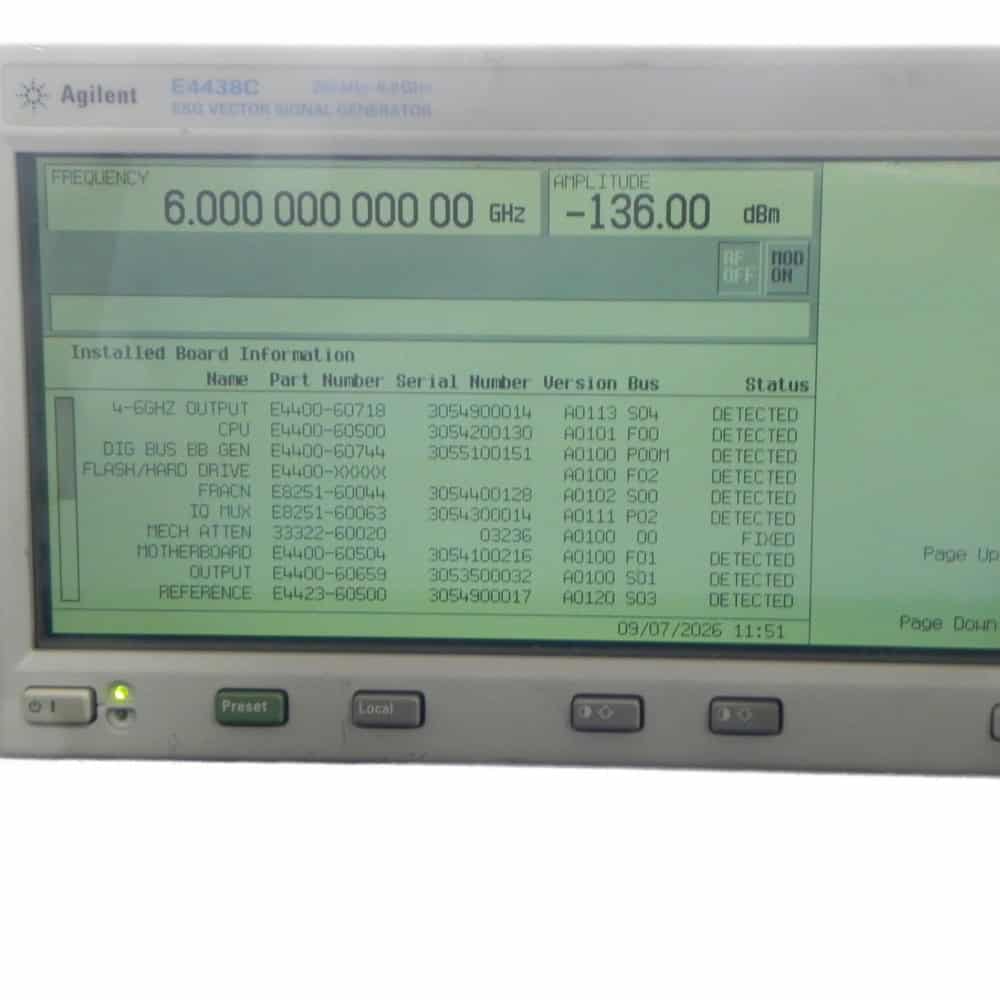

Screen display of Keysight E4438C vector signal generator with 6 GHz frequency setting.

Test equipment screen showing frequency 6 GHz and successful self-test results.

Test equipment front panel with various ports and controls for signal testing.

Keysight E4438C- ESG Vector Signal Generator, 250 kHz to 6 GHz with Options 005/417/506/602/UNB/UNJ

Name: Keysight E4438C- ESG Vector Signal Generator, 250 kHz to 6 GHz with Options 005/417/506/602/UNB/UNJ
Brand: Keysight
SKU: KEYE4438C-005/417/506/602/UNB/UNJ
Price: 7999.00 USD
Availability: InStock

$7999.00

Agilent Keysight E4438C- ESG Vector Signal Generator, 250 kHz to 6 GHz with Options 005/417/506/602/UNB/UNJ CALIBRATED

All E4438C’s are provided with NIST Traceable calibration and a one year warranty. Please contact us if Z540 or 17025 calibration is required.

005: Adds a 6 GB internal hard drive for storing waveforms
506: Sets the frequency range from 250 kHz to 6 GHz
602: Adds an internal baseband generator with 64 MSa memory and digital bus capability
UNB: Adds high output power with a mechanical attenuator
UNJ: Enhances phase noise performance

1 in stock

Already own one?

Get Repairs

CALIBRATION

Services

Description
Specifications

Description

Keysight E4438C- ESG Vector Signal Generator, 250 kHz to 6 GHz with Options 005/417/506/602/UNB/UNJ

Unit Calibrated

Frequency range 250 kHz to 1, 2, 3, 4, or 6 GHz Output power up to +17 dBm RF modulation bandwidth up to 160 MHz Flexible FSK, MSK, PSK, QAM, custom I/Q, AM, FM, ØM, and pulse Step & list sweep frequency and power Internal baseband generator (80 MHz RF BW) Arbitrary I/Q waveform playback (up to 100 MSa/s) Up to 64MSa playback memory and 1 GSa storage Real-time I/Q symbol generation (up to 50 Msym/s) Generate 802.11 WLAN, W-CDMA, cdma2000, 1xEV, TD-SCDMA, GSM, EDGE, cdmaOne, multitone, and more Digital I/O, fading, and PC HDD waveform streaming with Baseband Studio Remote control over 10BaseT LAN and GPIB SCPI and IVI-COM drivers.
