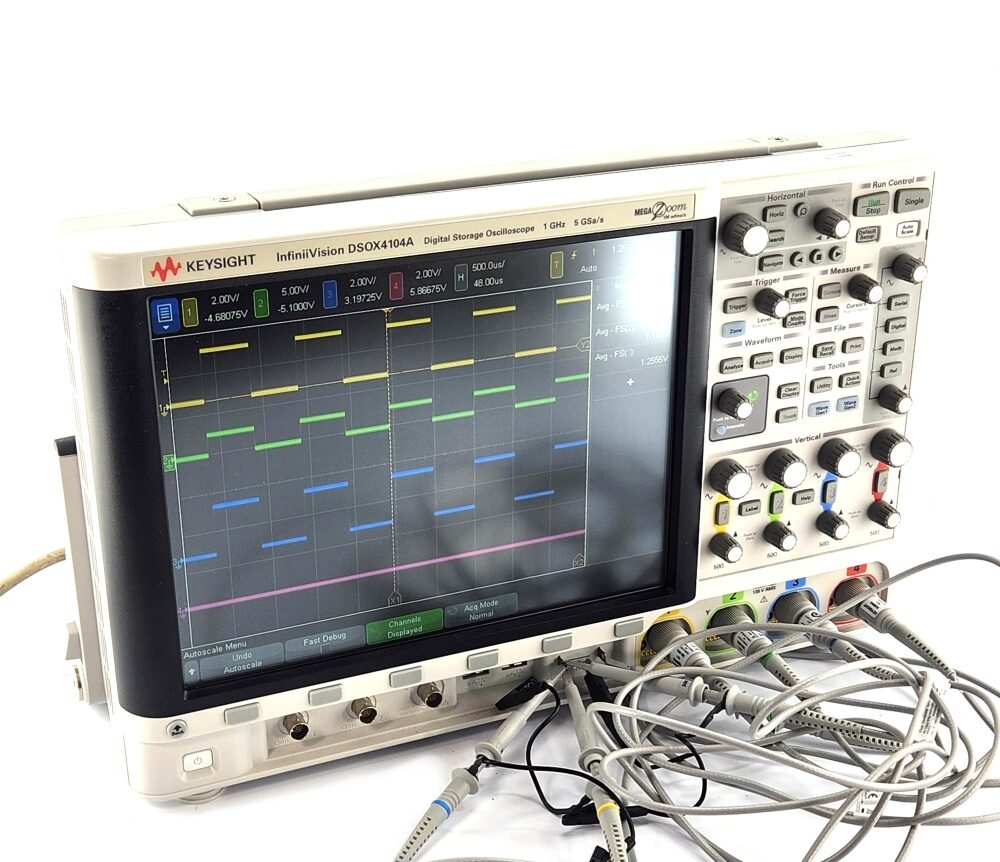

Keysight DSOX4104A Oscilloscope: 1 GHz, 4 Analog Channels

Original price was: $17500.00.Current price is: $16500.00.

Keysight DSOX4104A Oscilloscope: 1 GHz, 4 Analog Channels

Includes four N2894A Passive Probes: 700 MHz, 10:1, 1.3m



1 in stock

Description

Keysight DSOX4104A Oscilloscope: 1 GHz, 4 Analog Channels

The 4000 X-Series boasts 12.1-inch display, capacitive touch screen technology, InfiniiScan Zone touch triggering, 1-million-waveforms/sec update rate, MegaZoom IV smart memory technology and standard segmented memory.

Additional information

Weight 15 lbs
Dimensions 18 × 12 × 7 in
Option Description
10076B High-voltage passive probe 250 MHz 4 kV Optional
1147B AC/DC current probe 50 MHz 15 A with AutoProbe Optional
D4000AERB Aero Software Package: MIL-STD 1553 and ARINC 429 serial trigger & decode, plus Measurement Limit Testing, Mask Limit Testing (standard mask files available to download), Frequency Response Analysis (Bode plots), and Enhanced Video Analysis
D4000AUTB Automotive Software Package: CAN (symbolic with .dbc file), CAN FD (symbolic with .dbc file), LIN (symbolic with .ldf file), FlexRay, SENT, CXPI, PSI5 (user-definable Manchester), and User-definable NRZ serial trigger & decode, plus Measurement Limit Testing, Mask Limit Testing (CAN/CAN FD mask files available to download) and Frequency Response Analysis (Bode plots)
D4000BDLB Ultimate Bundle Software Package: I2C, SPI, UART, I2S, CAN, CAN FD, LIN, FlexRay, CXPI, PSI5 (User-definable Manchester), User-definable NRZ, USB 2.0 low-, full-, & hi-speed1, USB PD, MIL-STD 1553, and ARINC 429 serial trigger & decode, plus USB 2.0 Signal Quality Test2, Power Analysis, Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), Enhanced Video Analysis
D4000GENB Embedded Software Package: (Standard on G models, option on A models). I2C, SPI, UART (RS232/422/485), I2S, and USB PD serial trigger & decode, plus Measurement Limit Testing, Mask Limit Testing, Frequency Response Analysis (Bode plots), and Enhanced Video Analysis
D4000PWRB Power Software Package: Power quality, current harmonics, switching loss, transient response, turn-on/off time, output ripple, efficiency, loop response, PSRR, etc., plus Measurement Limit Testing, Mask Limit Testing and Frequency Response Analysis (Bode plots), and USB PD serial trigger & decode
D4000USBB USB Software Package: 12 USB 2.0 Low-, Full-, & Hi-speed, USB PD trigger & decode, plus USB 2.0 Signal Quality Test, Jitter & Real-time Eye Analysis, Measurement Limit Testing, Mask Limit Testing, and Frequency Response Analysis (Bode plots)
DSOX4SECA Enhanced Security Option Disable non-volatile memory, USB, LAN, and/or firmware upgrade
DSOX4WAVEGEN2 WaveGen Built-in dual-channel 20 MHz function/AWG waveform generator
DSOXBODE Bode plot training kit
N2733B Soft carrying case
N2750A InfiniiMode differential probe 1.5-GHz 700-fF 200-kΩ with AutoProbe Optional
N2756A 16 digital channel MSO cable
N2763A Rack mount kit (for 4000A X-Series Models)
N2763B Rack mount kit (for 4000G X-Series Models)
N2790A Differential active probe 100 MHz, ± 1.4 kV with AutoProbe Optional
N2791A Differential active probe 25 MHz, ± 700 V Optional
N2795A Active single-ended probe 1-GHz 1-pF 1-MΩ with AutoProbe Optional
N2796A Active single-ended probe 2-GHz 1-pF 1-MΩ with AutoProbe Optional
N2797A Extreme temperature active probe 1.5-GHz 1-pF 1-MΩ with AutoProbe Optional
N2804A High voltage differential probe, 300 MHz, ± 300 V (DC + peak AC), 100:1, 4-MΩ, 4 pF Optional
N2805A High voltage differential probe, 200 MHz, ± 100 V (DC + peak AC), 50:1, 4-MΩ, 4 pF Optional
N2818A Differential active probe 200 MHz, ± 20 V Optional
N2819A Differential active probe 800 MHz, ± 15 V Optional
N2820A 2-channel high-sensitivity current probe 50 uA to 5 A Optional
N2893A AC/DC current probe 100 MHz 15 A with AutoProbe Optional
N2894A Passive probe 700 MHz, 10:1, 10 MΩ
N6455A Hard copy manual
N7020A Power rail probe 2-GHz, 1:1, 50 kΩ, ± 24 V offset range Optional
N7026A 150 MHz, 40 Apk, AC/DC high-sensitivity current probe with AutoProbe Optional
N7040A 23 MHz, 3 kA, AC current probe Optional
N7041A 30 MHz, 600 A, AC current probe Optional
N7042A 30 MHz, 300 A, AC current probe Optional



Global Test Equipment pdf icon
DSOX4104A Service Manual
Global Test Equipment image for pdf downloads
DSOX4104A Product Overview
