Description

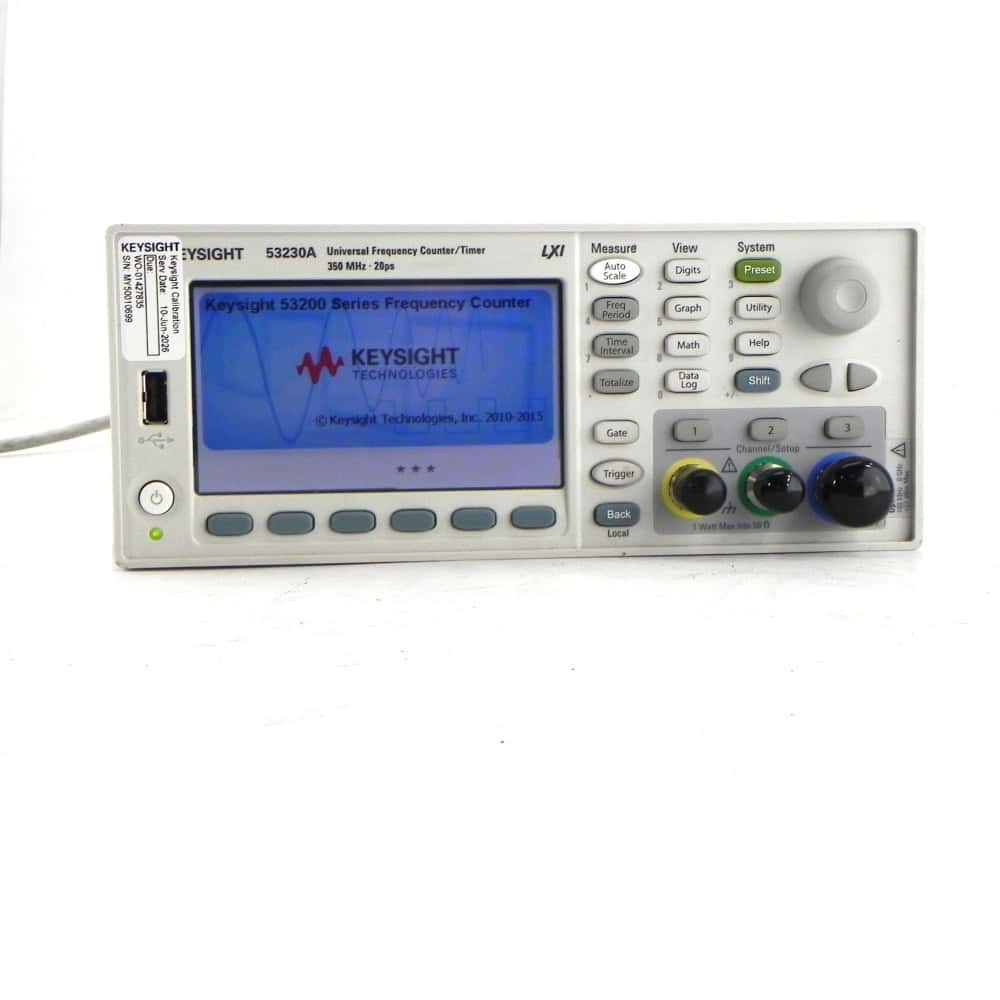

Keysight 53230A-010/106/150/202/400 350 MHz Universal Frequency Counter/Timer, 12 digits/s, 20 ps
Includes OEM Calibration
The 53230A is a 2 channel frequency counter with the ability to make frequency and time interval measurements as well as continuous and gap-free measurements. The Keysight 53230A universal frequency counter/timer serves all your frequency and time interval measurement needs. In addition to the typical frequency and time interval measurements, continuous/gap-free measurements are available for basic modulation domain analysis. The burst measurement software is available. An optional microwave channel can be added to measure 6 or 15 GHz.
Option 010: Ultra-high-stability oven-controlled crystal oscillator
Option 106: Add Channel 3 for a 6 GHz continuous wave (CW) microwave input
Option 150: Pulse microwave measurements software to measure parameters like pulse width, PRF, and PRI without external triggering
Option 202: Front-panel Type-N connector for the optional microwave channel
Option 400: GPIB (IEEE-488) interface for legacy instrument control and automated test systems
- Two 350 MHz input channels, plus optional third channel (6 GHz or 15 GHz)
- 12 digits/second resolution, 20 psec time interval resolution
- Built-in math analysis and color, graphical display (trend and histogram)
- Continuous, gap-free measurements and timestamps for basic modulation domain analysis
- LXI-C/LAN, USB, GPIB
- Optional: Lithium Ion Battery
- A BenchVue software license (BV0011B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences
