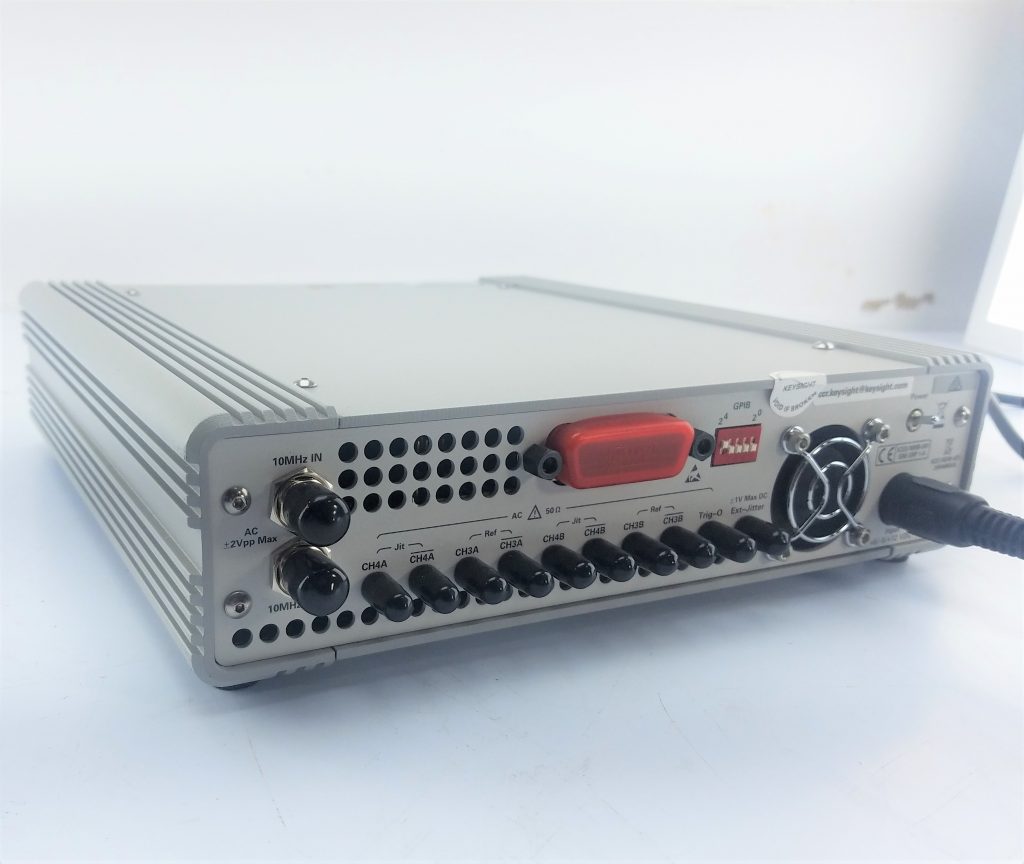

HP/Agilent N4963A Clock Synthesizer 13.5 GHz

INCLUDES: 4 – 11724-001, 4 – 11724-002, 4 – 9135-6169 and 4 – 9135-6197 High Pass Filters

 N4960-90001 CD Manual

 N495x4 Connector Care Reference Guide

 8120-1378 Power Cord and Safety Booklet.

Description

HP/Agilent N4963A Clock Synthesizer 13.5 GHz

INCLUDES: 4 – 11724-001, 4 – 11724-002, 4 – 9135-6169 and 4 – 9135-6197 High Pass Filters

 N4960-90001 CD Manual

 N495x4 Connector Care Reference Guide

 8120-1378 Power Cord and Safety Booklet.

  • Frequency range: 100 kHz to 18 GHz
  • Low trace noise: 0.002 dBrms (Typical, at 8 MHz to 4.35 GHz, IFBW = 70 kHz, transmission measurement.)
  • Wide dynamic range: 122 dB (Typical, at 100 MHz to 4.35 GHz, IFBW = 10 Hz.)
  • High temperature stability: 0.01 dB/C (Typical, at 300 kHz to 6 GHz)
  • Test port – 2-port S-parameter, 50 ½, Type-N connectors
  • Sweep type – Linear and log frequency, Segment sweep
  • Calibration Capabilities: Short-Open-Load-Thru (SOLT), TRL, Unknown thru, Waveguide, ECal, Adapter removal/insertion
  • Analysis: Time domain / Test wizard, Wireless power transfer analysis (Optional), mixedmode S-parameters, test fixture de-embedding, pass/fail limit testing, Equation editor. Materials measurement (External software (N1500A) required.)
  • Upgradability: Frequency, software options
  • Connectivity: USB (6 ea), LAN, GPIB (Optional), 24-bit Handler I/O (Optional)

Additional information

Weight 15 lbs
Dimensions 9 × 12 × 15 in
