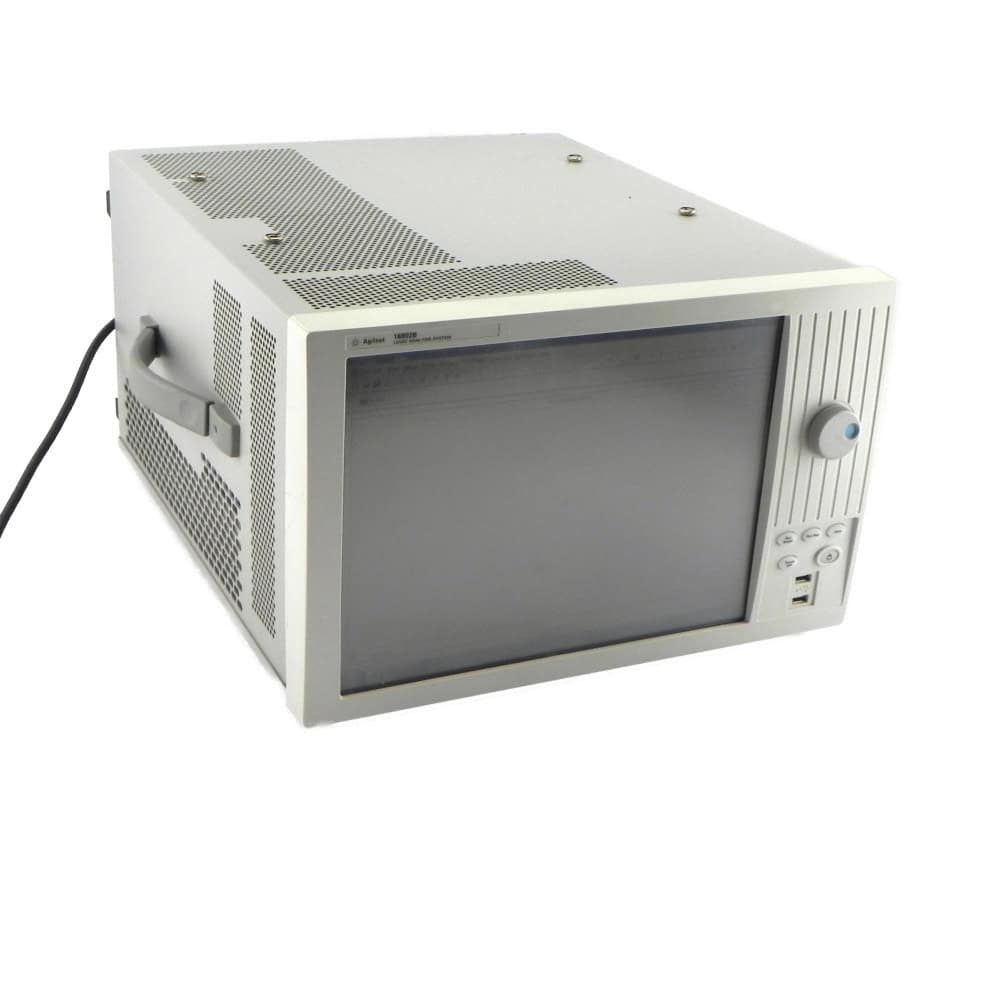

HP/Agilent 16902B Logic Analysis System 6-Slot Color Touch Screen Mainframe


General Inquiries/Quote Request
Rental/Lease Information Request

The Agilent 16902B logic analysis system provides high-performance, system-level debugging of digital designs. Expandability is the key to the system’s long-term value. Customize this system for your specific needs with innovative probing, high-performance measurement modules, and post-processing analysis tools.

SKU: KEY16902B Categories: , Tag: Brands: ,

Description

Measurement Flexibility (Configuration)

  • 6-Slot Modular System
  • Supports timing/state analyzers and pattern generator
  • PCI Expansion Slot: 1 Full Profile
  • Use Frame Individuality or Connect Together for Complex, Multi-Bus Analysis

User Interface

  • 15 Inch Color Touch Screen Display, 1024 x 768 Resolution
  • Intuitive User Interface and Familiarity of Windows
  • Data Views’ Waveform/Chart Listing, Packet Viewer, Source Code, Compare
  • Dedicated Hot Keys, Knob, Keyboard and Mouse

Connectivity

    • Gbit LAN:  10/100/1000 BaseT
    • I/O Ports:  Six USB 2.0, Parallel, Serial, External Video, Calibration BNC, Clock in BNC
    • Interface to other Instruments
    • View Scope Integrates Time-Correlated Logic Analyzer & Scope Waveforms into Single Waveform Display

Accessories

Part Number Description
Qty
Power Cord
1
PS/2 Mouse
1
PS/2 Keyboard
1

Options

Additional information

Weight 50 lbs
Dimensions 18 × 24 × 31 in
Condition

Model Number

16902B

Manual

HP/Agilent 16902B Service Manual https://4gte.com/index.php/filemanager/datasheet/download/id/516/
