HP/Agilent Keysight 8722ES S-parameter Vector Network Analyzer, 50 MHz to 40 GHz with Options 1D5/010/089/400.

The Agilent 8722ES vector network analyzer allows complete characterization of RF and microwave components. The Agilent 8722ES includes an integrated synthesized source, test set and tuned receiver. The built-in S-parameter test set provides a full range of magnitude and phase measurements in both the forward and reverse directions. Built-in vector accuracy enhancement techniques include full two-port, adapter-removal, and optional TRL calibration. The Agilent 8720E family includes three T/R and three S-parameter network analyzers, covering 13.5, 20 and 40 GHz.

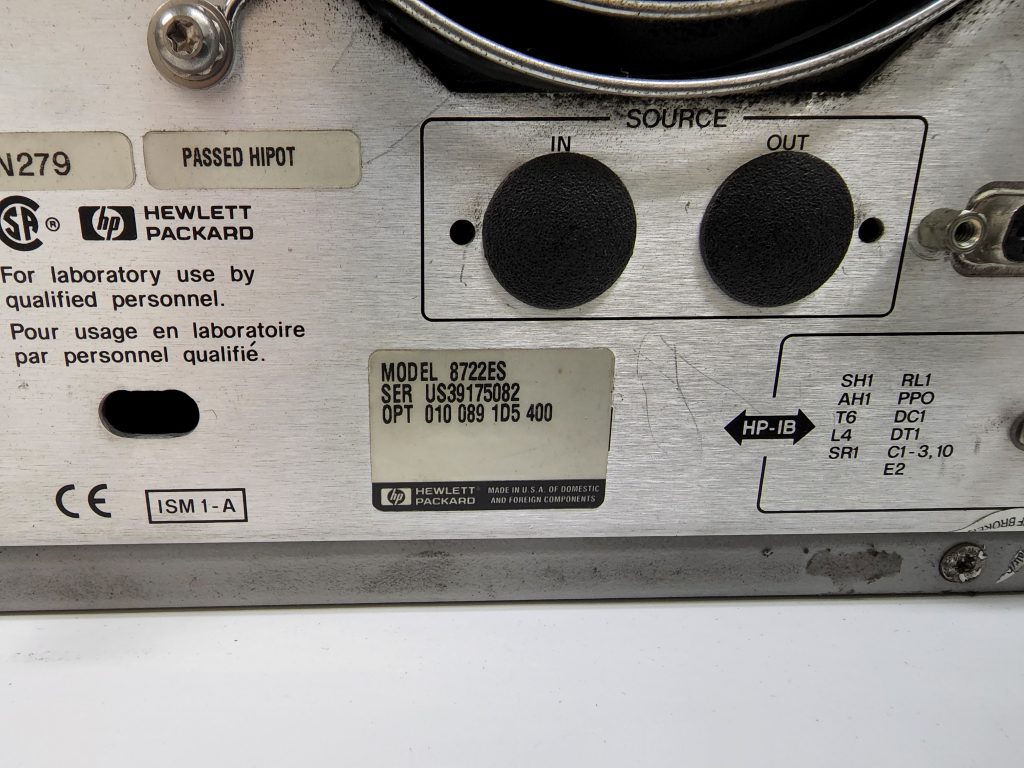

1D5 High Stability Frequency Reference
010 Time Domain Capability
089 Frequency off-set mode
400 Adds fourth Sampler and TRL calibration firmware



SKU: KEY8722ES-1D5/010/089/400 Categories: , Tag: Brand: , ,

Description

50 MHz to 40 GHz
100 dB of dynamic range
Excellent measurement accuracy
Two measurement channels
Four display channels
Frequency and power sweeps
Fast sweep and data transfer speed
Pass/Fail testing, powerful marker functions
Electronic calibration (ECal)
Internal automation with test-sequencing
Optional time-domain, high power test set, four samplers and TRL calibration,
direct sampler access, frequency-offset mode

HP/Agilent Keysight 8722ES S-parameter Vector Network Analyzer, 50 MHz to 40 GHz with Options 1D5/010/089/400

Additional information

Weight 55 lbs
Dimensions 10 × 18 × 20 in
