HP/Agilent 8714ES RF Economy Vector Network Analyzer (S-parameter), 300 kHz to 3 GHz


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

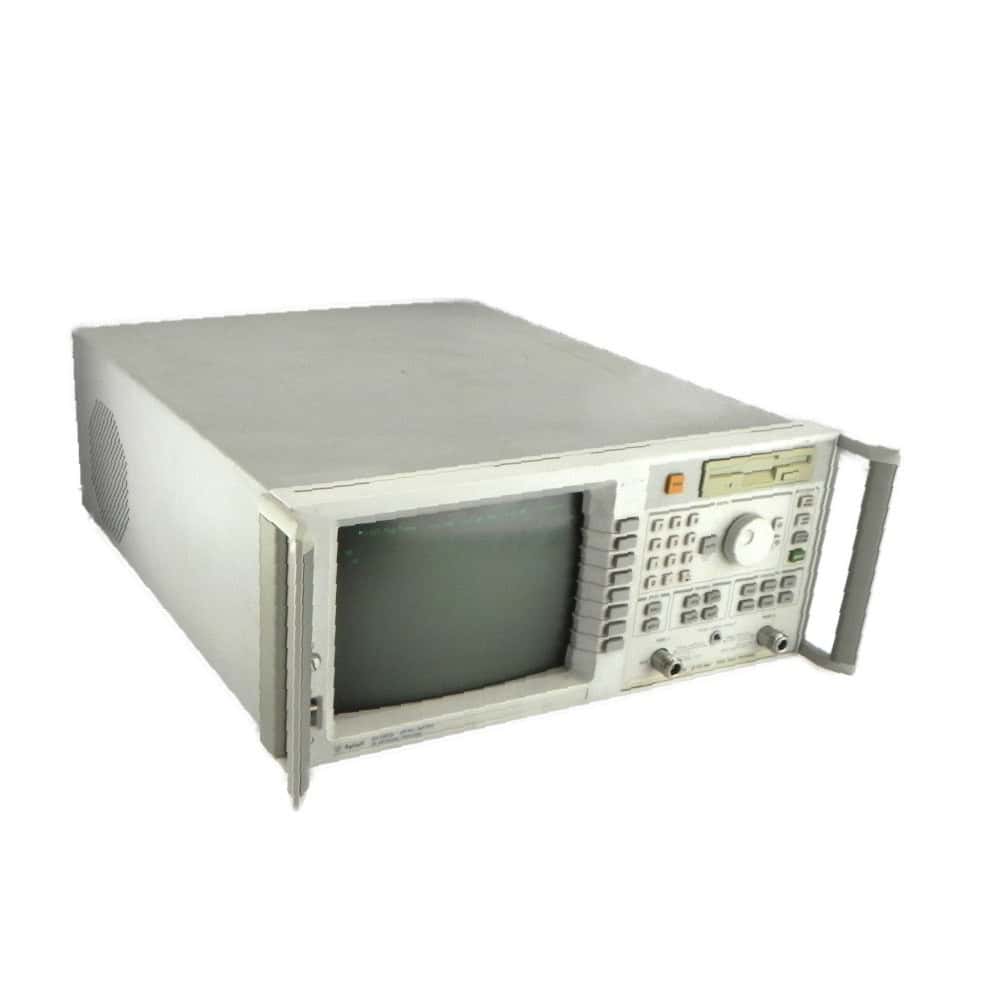

The Agilent 8714ES RF economy network analyzer provides speed, accuracy and automation features in a compact, integrated instrument for RF component manufacturing, inspection and maintenance.
The Agilent 8714ES features an S-parameter test set with full two-port vector-error correction, providing complete and accurate measurements of device S-parameters. Two independent channels can measure and display two parameters such as S21 (transmission) and S11 (reflection) in a variety of formats including delay and SWR, on retangular, polar or Smith-chart displays. The Agilent 8714ES has a frequency range of 300 kHz to 3 GHz.
The ES models contain a 60-dB source attenuator as a standard feature, giving 70-dB of power-level control for testing active and passive devices. Both 50-ohm and 75-ohm versions are available.

SKU: KEY8714ES Categories: , Tag:
Brand:

Description

  • Narrowband and broadband detection
  • 100 dB dynamic range
  • Real-time sweep speeds (40 ms/sweep)
  • Integrated S-parameter test set
  • Synthesized source with 1-Hz resolution
  • Standard LAN interface
  • Standard Internal Agilent Instrument BASIC (IBASIC)
  • Standard 2, 6, and 12-port switching test sets available

Accessories

Part Number Description
Qty
08714-90012 User’s Manual
1
08714-90017 Service Guide
1
6C608714-90022 Cellular Antenna Quick Start Guide
1
08714-90021 CATV Quick Start Guide
1
08714-90019 BASIC User Guide Supplement
1
08714-90016 Example Programs
1
08714-90015 Programmer’s Guide
1
08714-90014 Automating Measurements User’s Supplement
1
08714-90013 LAN Interface User’s Supplement
1
  Power Cord
1

Options

Option Description
0B0 Delete Manual Set
0B1 Standard Docmentation Set
0BV Clip Set
1EC 75-Ohm Input Impedance
100 Add Fault Location / SRL
101 Add Fault Location / SRL and Transport Case
1CL Add Keyboard
1CM Rackmount KIt
1FP Recalibration Software
B20 Precision 50-Ohm Cable
B21 Precision 75-Ohm Cable

Additional information

Weight 30 lbs
Dimensions 31 × 24 × 18 in
Condition

Model Number

8714ES

Manufacturer

HP/Agilent

Ports

2

Power

-105 dBm – +10 dBm

Type
