Keysight 81110A with 81112A/81112A Pulse Pattern Generator, 330 MHz


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

$4,500.00

1 in stock

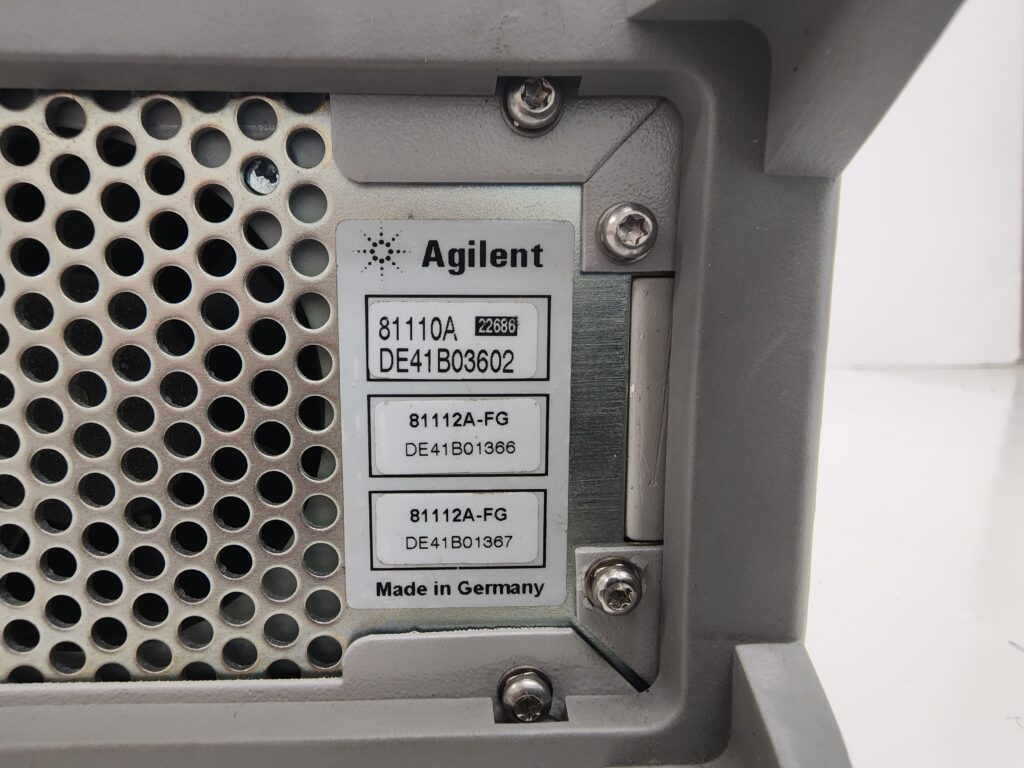

This unit includes two 81112A output modules.

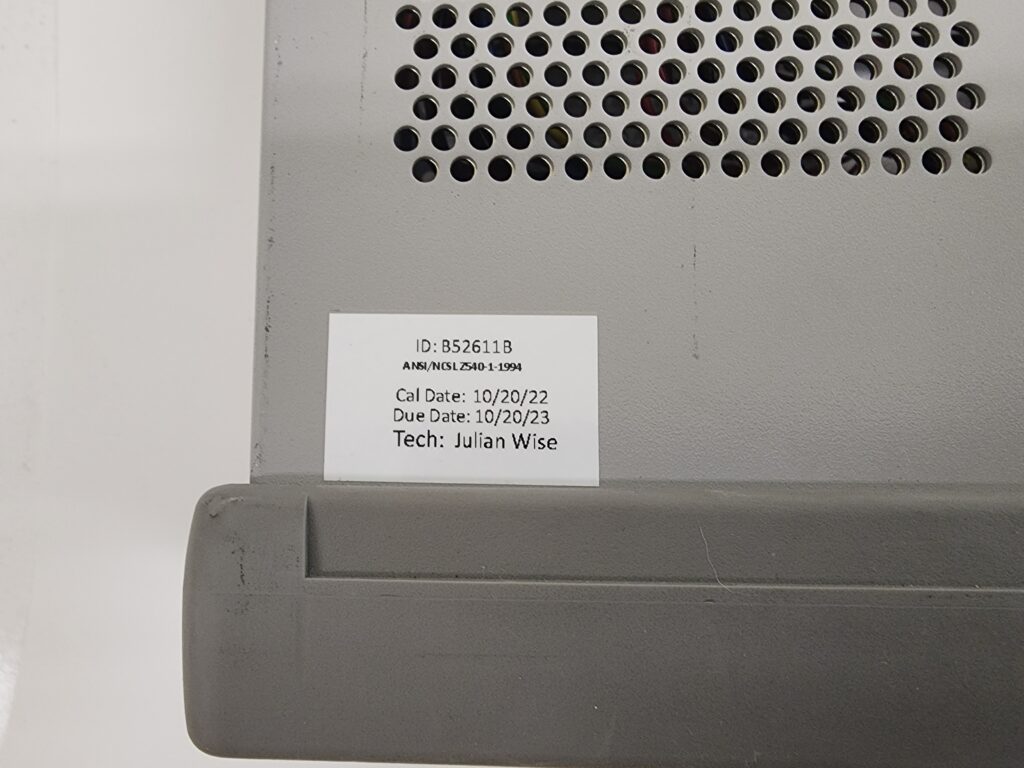

Unit come calibrated, if current calibration date is less than 6 months until expiration, unit will be re-calibrated prior to shipping.

The Agilent 81110A is a 330 MHz single-/dual-channel Pulse Pattern Generator.

The alternative 81112A Output modules allow the 81110A to be used in applications up to 330 MHz. Instead of variable transitions, 800 ps or 1.6 ns edges can be selected. The source impedance is 50-ohm and supplies up to 3.8 Vpp into 50 ohms. Internal channel addition is not implemented.

NOTE:

Each Agilent 81110A 165/330 MHz single- or dual-channel Pulse Pattern Generator requires 1 or 2 of the following output channels:

– Agilent 81111A 165 MHz, 10 V, 50 Ohm into 50 Ohm

– Agilent 81112A 330 MHz, 3.8 V, 50 Ohm into 50 Ohm

Note: Only add together output modules of the same module number. A combination of the Agilent 81111A and Agilent 81112A in one Agilent 81110A is not possible.

SKU: KEY81110A-81112A/81112A Categories: , Tag:
Brand:

Description

HP/Agilent Keysight 81110A with 81112A/81112A Pulse Pattern Generator, 330 MHz

Single-/dual-channel Pulse Pattern generator.

330 MHz, 3.8 V, 50 Ohm into 50 Ohm (81112A)
Triggerable / PLL operation selectable
Pulse / burst / pattern modes selectable
Self-cal for improved timing accuracy

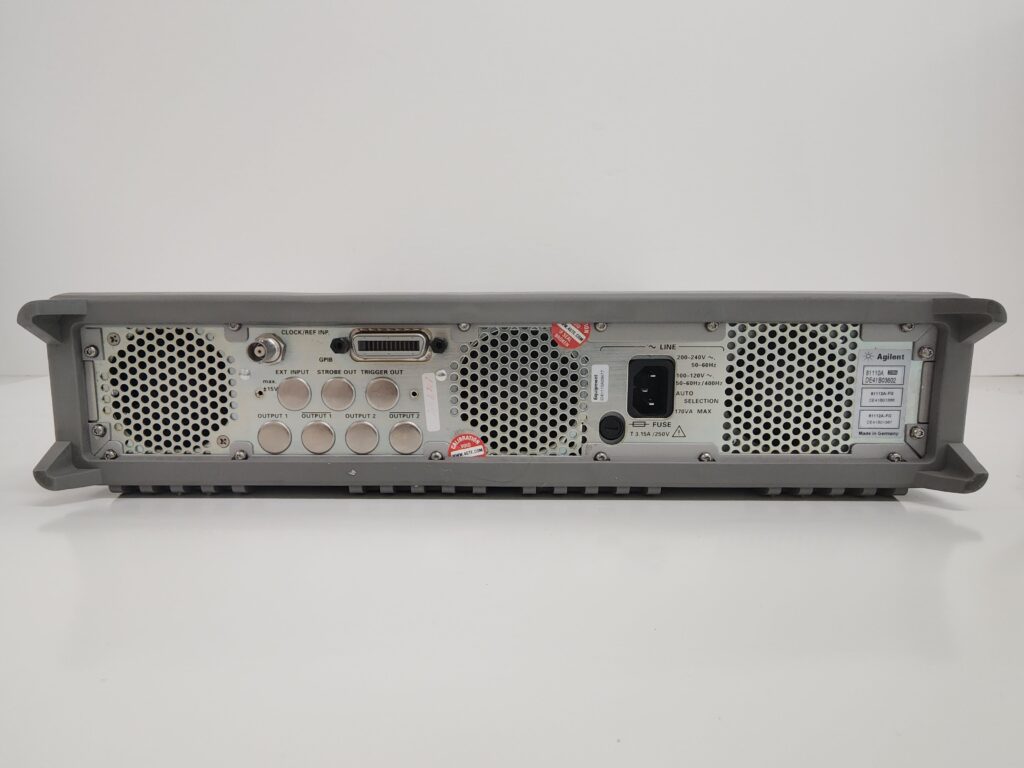

BNC outputs: single-ended (81111A) // differential (81112A)

Additional information

Weight 22 lbs
Dimensions 4 × 17 × 20 in
