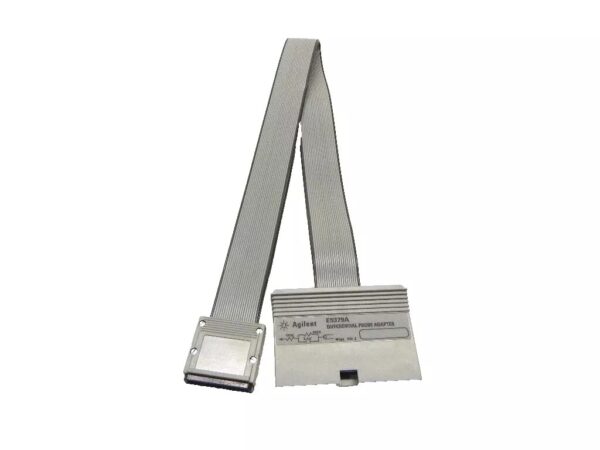

HP/Agilent E5379A Samtec Probe – Differential, with 90-pin Cable Connectors



General Inquiries/Quote Request Rental/Lease Information Request

$399.00

Keysight (Agilent / HP)

The Agilent E5379A Samtec probe provides a convenient and reliable connection to your target through a Samtec connector designed into your target. This connector based probe improves upon previous generation connector based logic analyzer probes and offers low loading in a small, surface mount footprint. These probes can be used with a support shroud in environments where accidental unplugging of the probe is a concern. This probe can be used with any Agilent logic analyzer with a 90-pin cable connector.

2 in stock

Description

  • 17 channels, differential or single-ended clock and data, compatible with LVDS signals
  • Low, 1.5pf, capacitive loading
  • Capable of data rates up to 1.5Gb/s (maximum rate dependent on analyzer used)
  • 200mV Vmax-Vmin minimum signal amplitude
  • Small, surface mount connector is easy to incorporate into your design, Agilent number 1253-3620
  • Support shrouds available for board thickness to 0.120 inches
  • Accessories

    Options

    Additional information

    Weight 2 lbs
    Dimensions 3 × 8 × 9 in
    Condition

    Model Number

    Manufacturer

    Pre Owned
