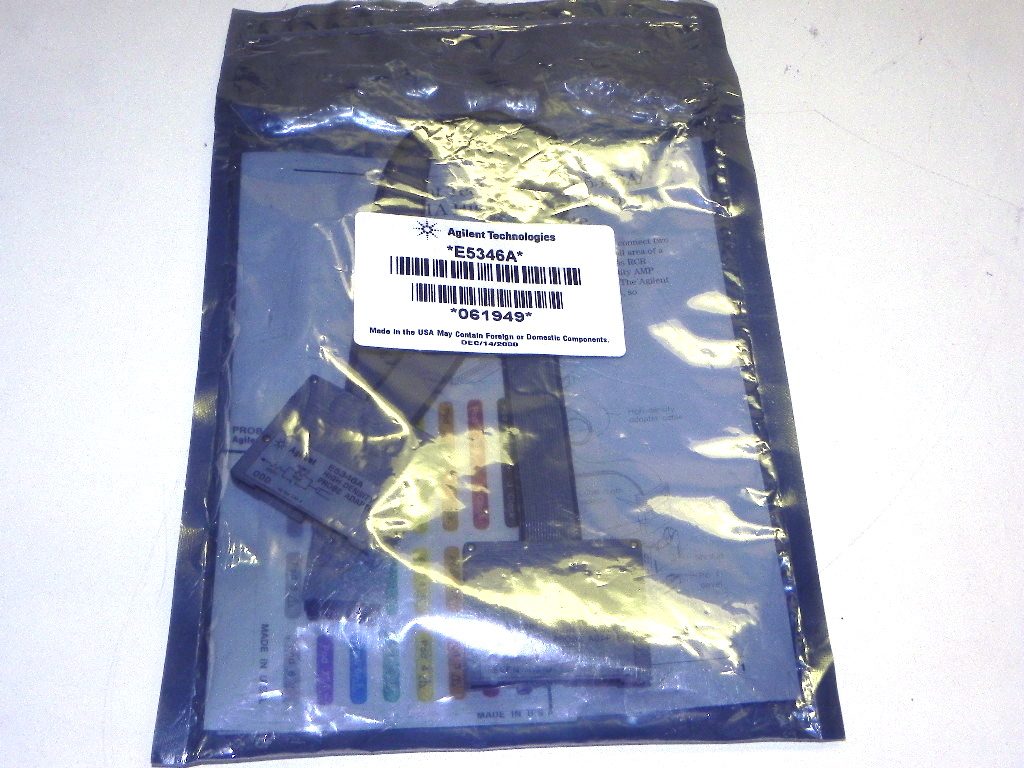

HP/Agilent E5346A Mictor Probe-Single-ended, with 40-pin Cable Connectors - NEW
HP/Agilent E5346A Mictor Probe-Single-ended

HP/Agilent E5346A Mictor Probe-Single-ended, with 40-pin Cable Connectors, NEW


General Inquiries/Quote Request
Rental/Lease Information Request

The Agilent E5346A Mictor probe provides a convenient and reliable connection to your target through a Mictor connector designed into your target. Route your signals of interest to the location containing the Mictor connector and when you are ready to measure these signals simply plug-in the Mictor probe. These probes can be used with a support shroud in environments where accidental unplugging of the probe is a concern. This probe can be used with any Agilent logic analyzer with a 40-pin cable connector.

SKU: KEYE5346A-N Categories: , , , Tag: Brand: ,

Description

  • 34 channels, single-ended clock and data
  • Small, 3.0pf, equivalent load capacitance
  • Capable of data rates up to 600Mb/s (maximum rate dependent on analyzer used)
  • 500 mV p-p minimum signal amplitude
  • Small connector is easy to incorporate into your design Agilent number 1252-7431 or AMP number 2-767004-2
  • Support shrouds available for board thickness to 0.120 inches

Accessories

Part Number Description Qty
01650-94312 Cable labels 1
E5346-94304 Probe cable 1
E5346-92010 Installation Note 1

Options

Additional information

Weight 2 lbs
Dimensions 12 × 12 × 12 in
Condition

Model Number

E5346A New
Manufacturer

HP/Agilent
