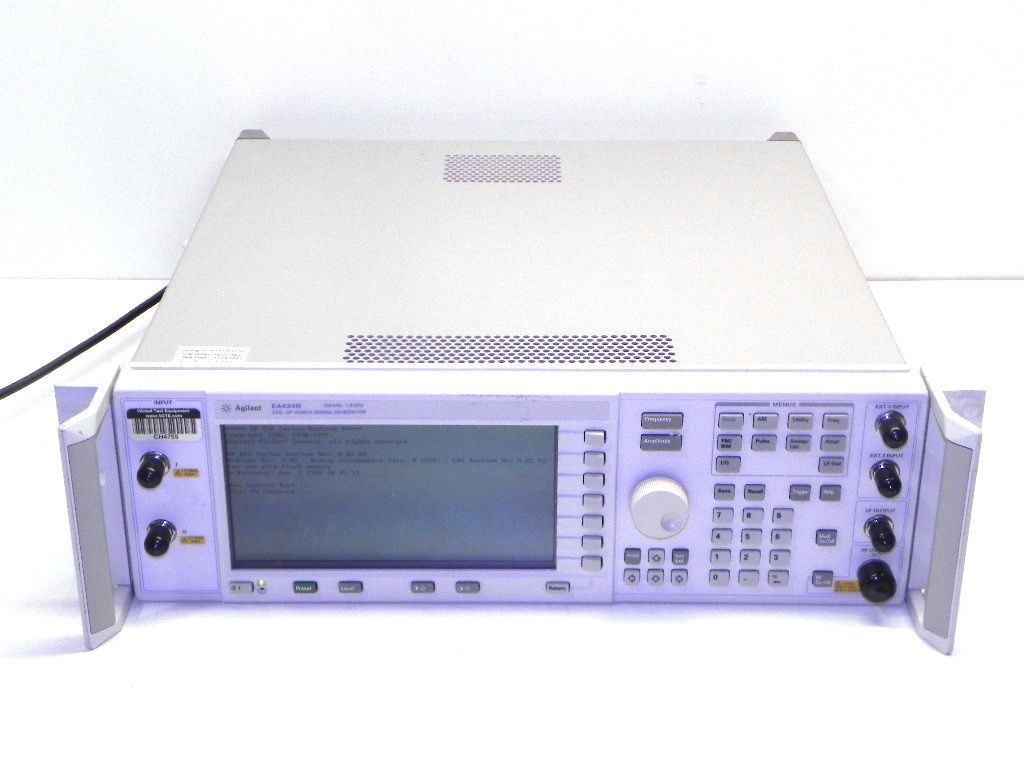

Keysight E4434B ESG-DP Series Digital RF Signal Generator, 1 GHz with Options 1CP / UNB


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The Agilent E4434B RF signal generator sets a new price-performance level by offering excellent spectral purity and digital modulation capabilities that are ideal for general-purpose research and development, manufacturing or troubleshooting applications. Providing a comprehensive feature set, it generates standard and custom digital modulation formats, filtering and burst shapes, as well as versatile analog modulation, with superior quality, reliability and worldwide support — at an affordable price.

SKU: KEYE4434B-1CP/UNB Categories: , Tag:
Brand:

Description

  • 250 kHz to 1 GHz frequency range with enhanced phase noise performance
  • RF modulation bandwidth up to 35 MHz
  • Optional dual arbitrary waveform generator and/or real-time I/Q baseband generator
  • 40 MHz sample rate and 14-bit I/Q resolution
  • 1 Msample (4 MB) memory for waveform playback and 1 Msample (4 MB) memory for waveform storage
  • Custom digital modulation (>15 variations of FSK, MSK, PSK, and QAM), AM, FM, phase modulation, pulse modulation, and step/list sweep (frequency
    and power)
  • GPIB and RS-232 connectivity

Accessories

Part Number Description
Qty
  Power Cord
1
E4400-90323 User’s Guide
1
E4400-90324 Programming and Syntax Guide
1
E4400-90325 Calibration Guide
1
E4400-90326 Quick Start Guide
1
E4400-90333 Error Messages
1
E4400-90335 Service Guide
1

Options

Option Description
1CN Front Handle Kit (5063-9227)
1CM Rack Mount Kit without Handles (5063-9214)
1CP Rack Mount Kit with Handles (5063-9221)
1EM Rear Panel Connectors
100 Multichannel W-CDMA
101 Multichannel CDMA2000
200 3GPP W-CDMA
201 Real Time CDMA2000
300 Base Station BERT Extension for UN7
UN5 IS-95 CDMA
UN7 Bit Error Rate Testing
UN8 Real Time I/Q Baseband Generator
UN9 Add 7 Mb RAM
UNA Alternate Timeslot Power Level Control
UNB High Power with Mechanical Attenuator
UND Internal Dual Arbitrary Generator

Additional information

Weight 42 lbs
Dimensions 12 × 22 × 26 in
Condition

Model Number

E4434B – 1CP , UNB

Frequency Low Khz

1000000

Low Frequency

1000000

Manufacturer

HP/Agilent

Max Output

+17 dBm

Modulation Type

AM, FM, Phase, Pulse

Type
