The Agilent E4419B is a low-cost, high-performance, dual-channel, programmable power meter. It is fully compatible with the 8480 series and the E-series power sensors (except the E9320A family). Depending upon which sensor is used, the E4419B can measure from -70 dBm to +44 dBm at frequencies from 9 kHz to 110 GHz.

Designed for bench and automatic test equipment use (ATE), the E4419B makes fast (up to 100 readings per second with E-series sensors), accurate and repeatable power measurements.

The E4419B is a true dual-channel power meter, which means that you get two simultaneous power readings on the display.

SKU: KEYE4419B-908 Categories: , Tag:
Brand:

Description

  • Fast measurement speed (up to 100 readings per second, over the GPIB,
    with E-series sensors)
  • Speed improvement of x2 using the 8480 series power sensor (compared
    to the 437B)
  • No range-switching delays with 8480 series sensors, and only one fast-range
    switching point with E-series sensors

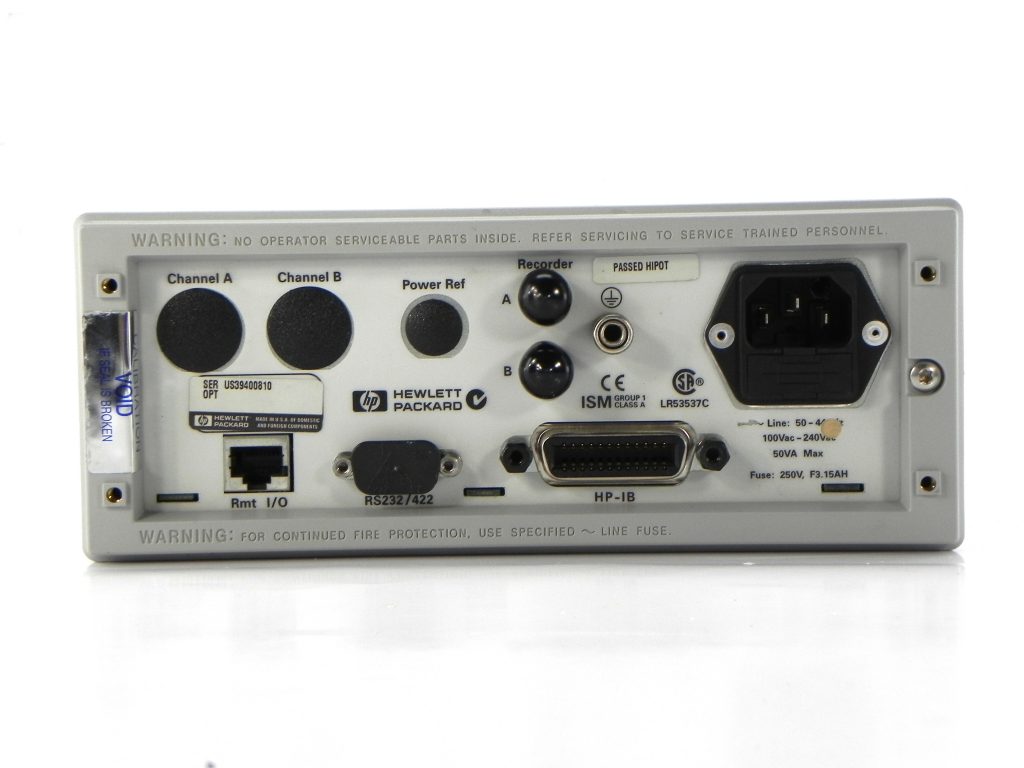

  • RS 232/422 serial interfaces as standard
  • GPIB connector for remote control of all functions
  • Internal rechargeable battery option provides up to 3 hours continuous
    use (option 001)
  • Code compatibility with 438A

Accessories

Part Number Description
Qty
Power Cord
1
11730A Power Sensor Cable
2
E4419-90006 User’s Guide
1
E4419-90059 Service Manual
1
E4418-90029 Programming Manual
1

Options

Option Description
001 Mains Power and internal rechargeable battery
002 Parallel Rear Sensor Input and Front Panel Reference Calibrator
003 Parallel Rear Sensor Input and Rear Panel Reference Calibrator
004 Delete Power Sensor Cable
006 Parallel Front and Rear Sensor Input and Calibrator
0B0 Delete Manual Set
908 Rackmount Kit (one instrument)
909 Rackmount Kit (two instruments)

Additional information

Weight 10 lbs
Dimensions 20 × 16 × 8 in
Channels

2

Condition

Model Number

E4419B

Frequency High Khz

100000000

Frequency Low Khz

9

High Frequency

110000000

High Power

110000000

Low Frequency

9

Manufacturer

HP/Agilent

Power Range

-70 – 20 dBm

Speed

100/s

Type
