The Agilent 8753ES vector network analyzer allows complete characterization of RF components. The 8753ES includes an integrated synthesized source, test set and tuned receiver. The built-in S-parameter test set provides a full range of magnitude and phase measurements in both the forward and reverse directions. Built-in vector accuracy enhancement techniques include full two-port calibration, adapter-removal and TRL*/LRM* calibration.
The 8753ET/ES family includes both T/R and S-parameter test sets, covering 3 and 6 GHz.

SKU: KEY8753ES -006/011 Categories: , Tag:
Brand:

Description

30 kHz to 3 or 6 GHz
Up to 110 dB of dynamic range
Excellent measurement accuracy

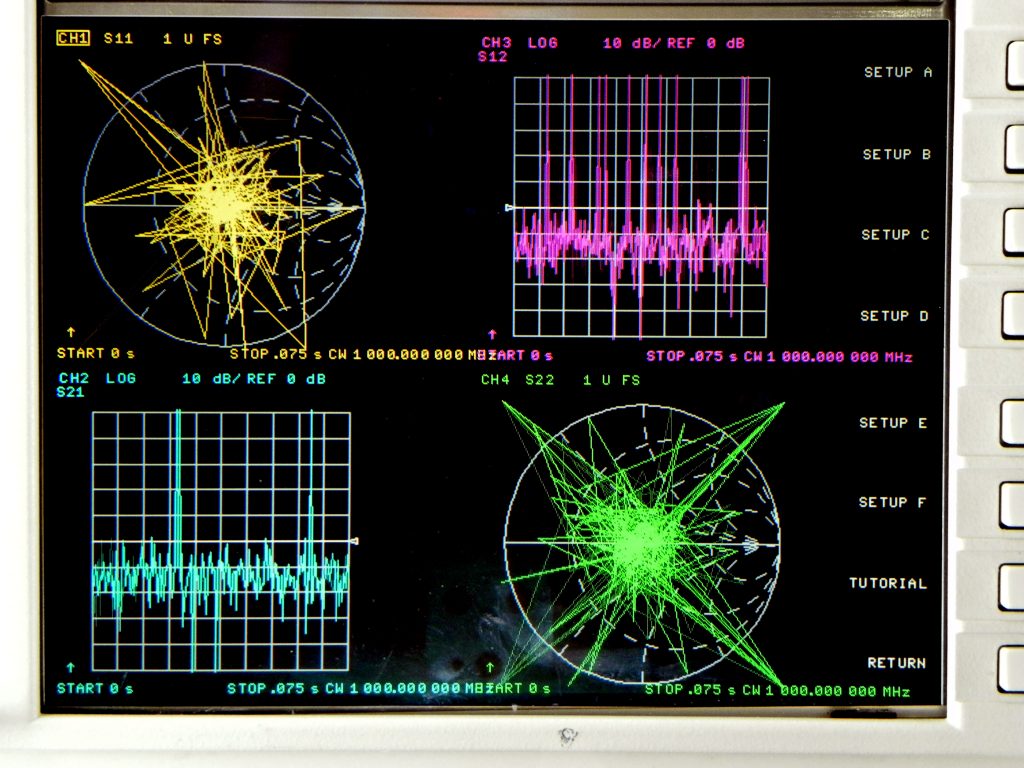

Two measurement channels
Four display channels
Frequency and power sweeps
Fast sweep and data transfer speed
Pass/Fail testing, powerful marker functions
Electronic calibration (ECal)
Internal automation with test-sequencing
Optional time-domain, harmonics measurement, configurable test set, delete
test set
Available in 50- and 75-ohm

Additional information

Weight 44 lbs
Dimensions 9 × 17 × 21 in
