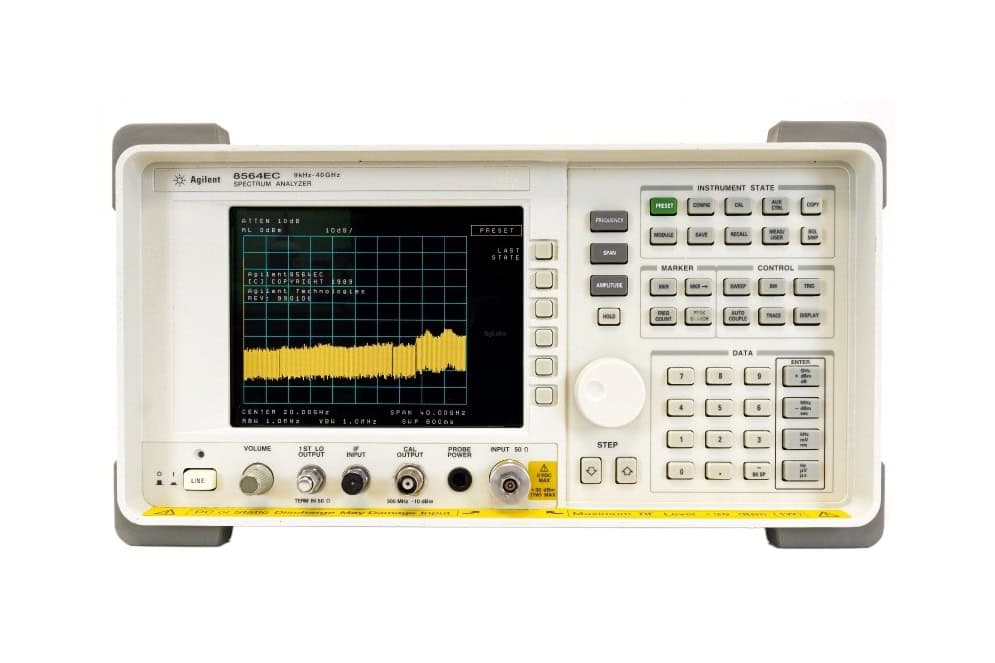

Keysight 8564EC Portable Spectrum Analyzer, 9 kHz to 40 GHz


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The Agilent 8564EC portable, color display millimeter wave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. You can measure signals from 30 Hz to 40 GHz (preselected above 2.75 GHz) with a single coaxial connection.

The 8564EC combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.

SKU: KEY8564EC Categories: , Tag:
Brand:

Description

Outstanding performance for sensitivity, phase noise, the 2nd and 3rd order dynamic range, and the voltage standing wave ratio (VSWR)
Color display
Continuous 30 Hz to 40 GHz sweep
Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
Precision timebase and 1 Hz counter resolution
MIL-PRF-28800 Class 3 rugged
Measurement personalities for digital radio and phase noise measurements

Additional information

Weight 26 lbs
