Keysight 8563E Portable Spectrum Analyzer, 9 kHz to 26.5 GHz with 85620A


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The Agilent 8563E portable microwave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer has a standard frequency range of 9 kHz to 26.5 GHz (preselected from 2.75 GHz to 26.5 GHz), with optional low-end frequency coverage to 30 Hz.

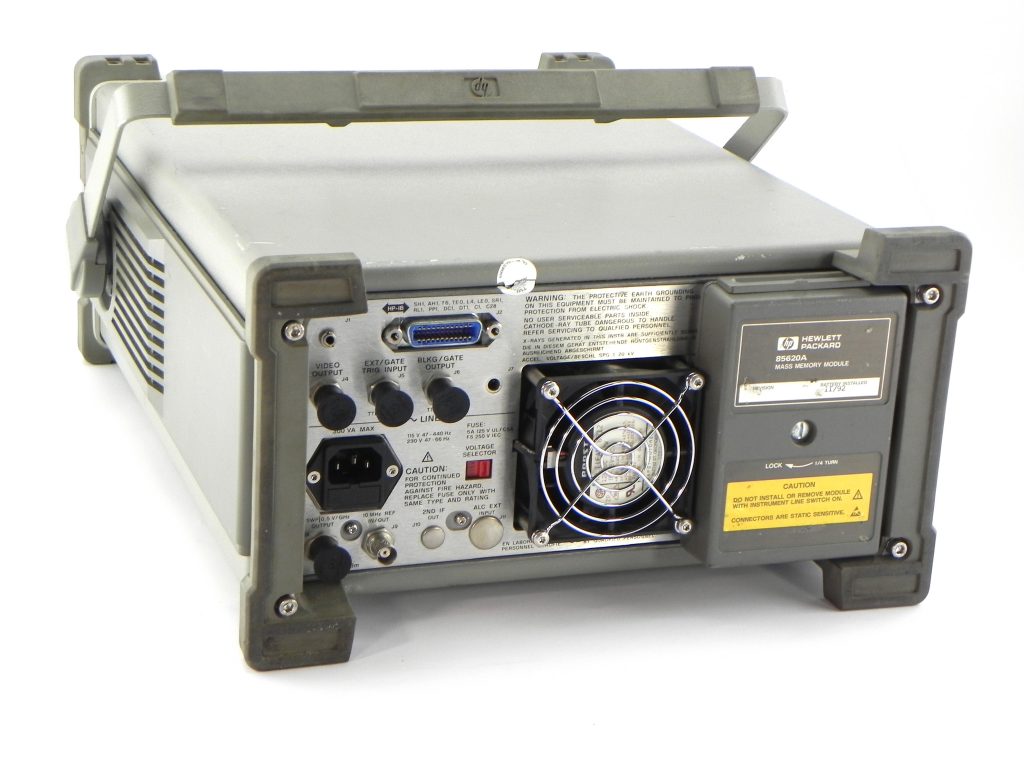

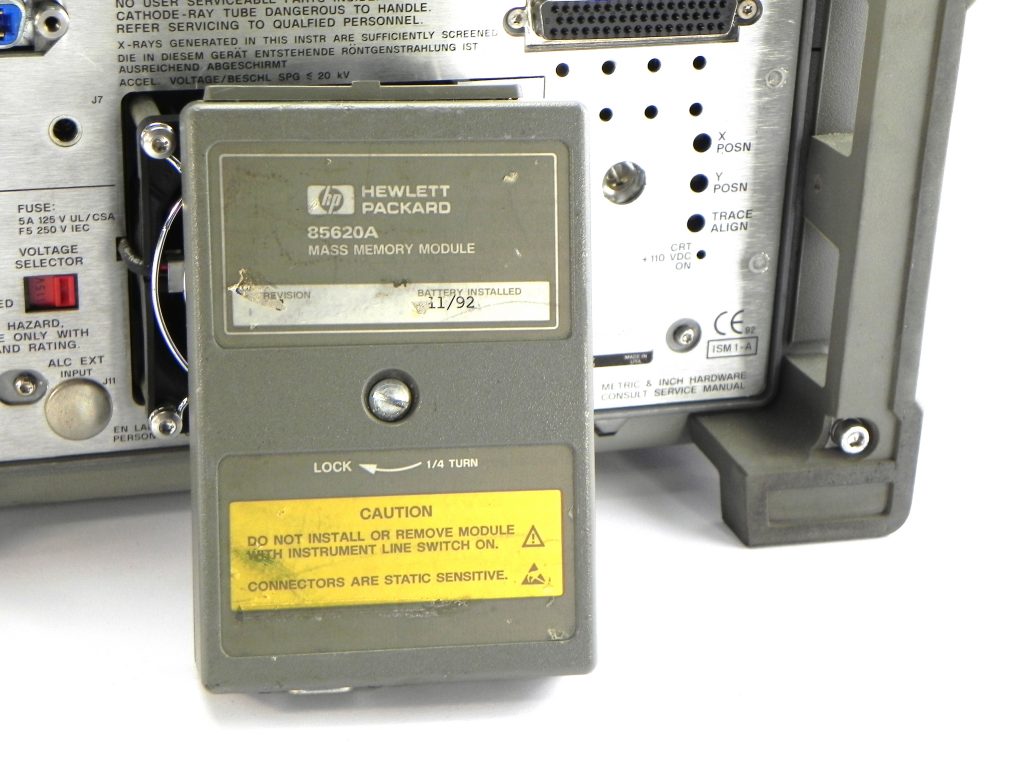

Includes 85620A – Mass Memory Module

The 8563E combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a MIL-rugged package built to withstand harsh environmental conditions.

SKU: KEY8563E-85620A Categories: , Tag:
Brand:

Description

Continuous 30 Hz to 26.5 GHz sweep
Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
Adjacent channel power, channel power, carrier power, occupied bandwidth
percentage and time-gated measurements standard
Precision timebase and 1 Hz counter resolution
MIL-T-28800 rugged
Measurement personalities for digital radio and phase noise measurements

Additional information

Weight 43 lbs
Dimensions 18 × 9 × 21 in
