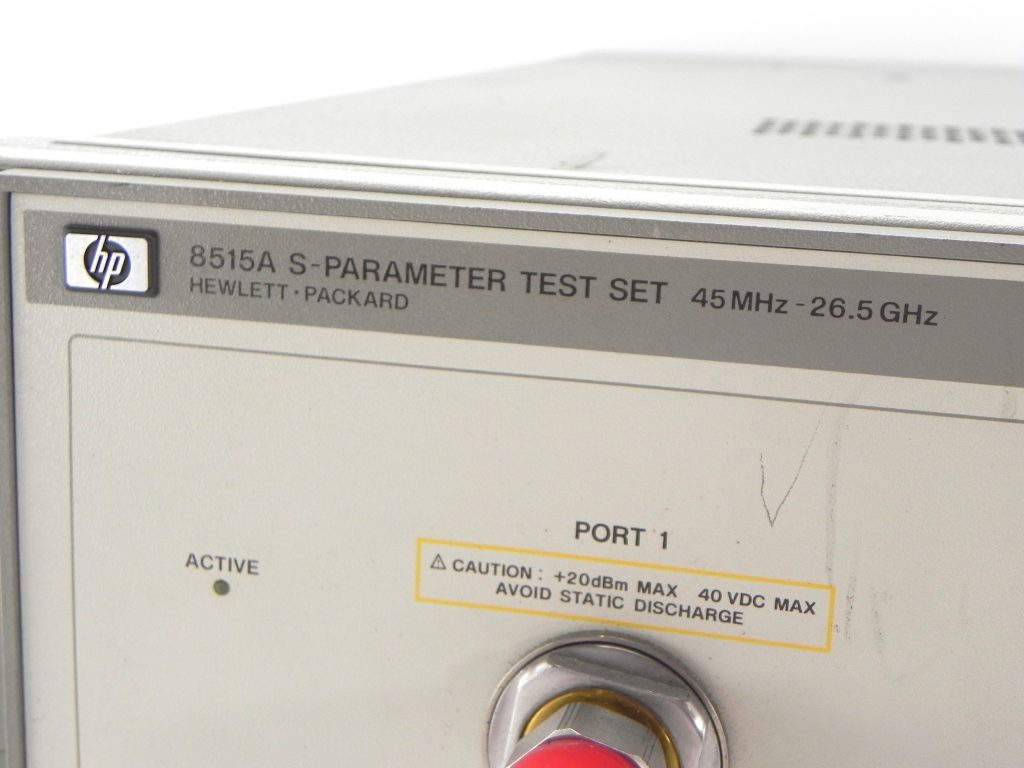

HP/Agilent 8515A S-Parameter Test Set, 45 MHz to 26.5 GHz, 3.5 mm Option 001


General Inquiries/Quote Request
Rental/Lease Information Request

The Agilent 8515A s-parameter test set is available for the Agilent 8510C network analyzer for broadband coaxial measurements from 45 MHz to 50 GHz. The Agilent 8515A test set has an architecture that develops a separate reference channel for each incident port. RF switching is done with a built-in electronic switch. For active device measurements, the test set includes the ability to apply dc bias (external) to the test port center conductors. Also available are two 90 dB step attenuators, which allow control of the port 1 and port 2 signal levels.

Description

45 MHz to 26.5 GHz
Separate reference channel for each incident port
Built-in electronic switch



With Option 001

Additional information

Weight 33 lbs
Dimensions 06 × 13 × 19 in
