HP/Agilent 85047A S-Parameter Test Set, 50 Ohms, 300 kHz to 6 GHz


General Inquiries/Quote Request
Rental/Lease Information Request

0 in stock

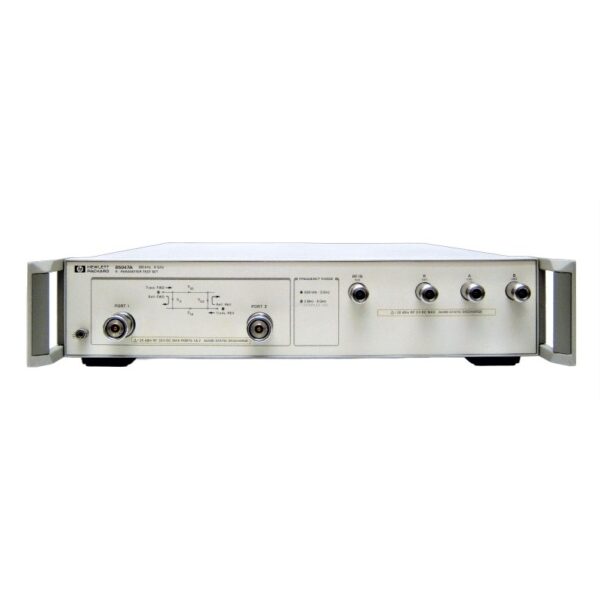

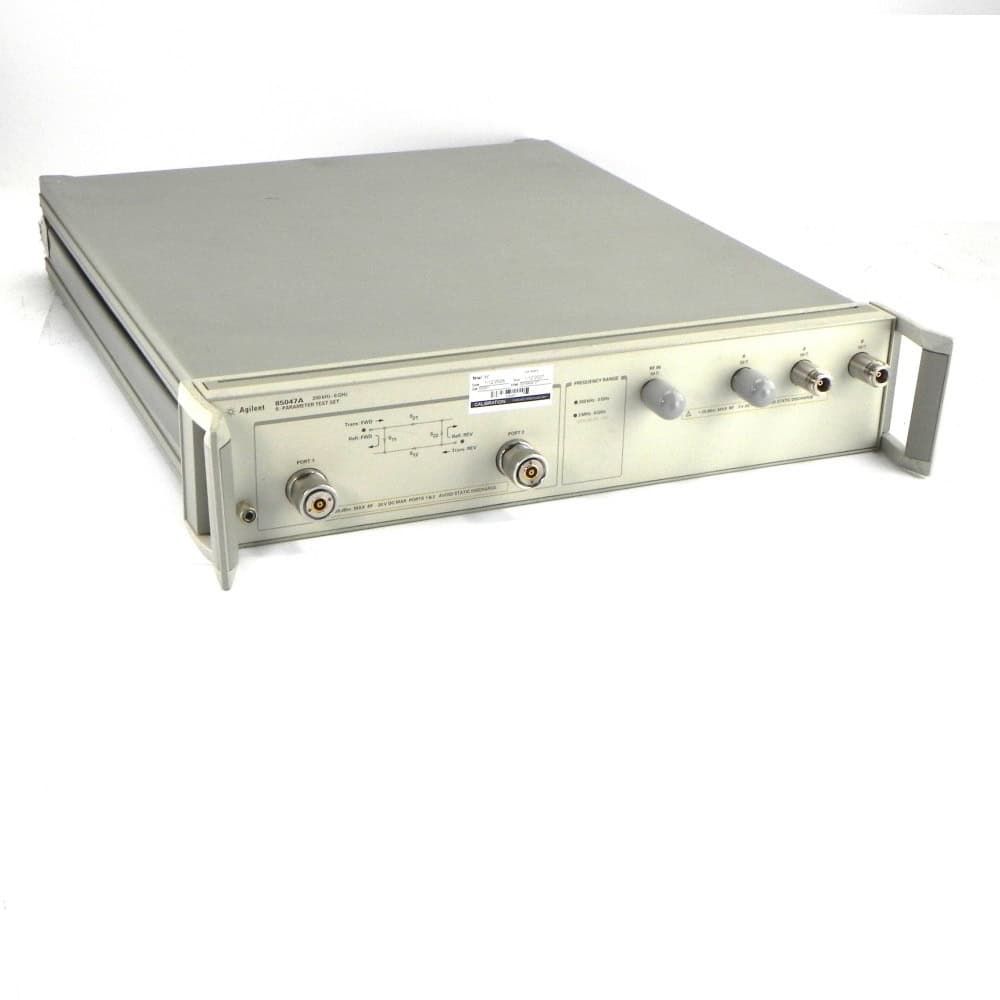

The Agilent 85047A test set provides the capability to measure transmission and reflection characteristics (including S-parameters) of two-port devices in either direction with a single connection. The test set is controlled from the analyzer and includes programmable step attenuators. It includes a frequency doubler that can be switched in to measure 3 MHz to 6 GHz in a single sweep or switched out to measure 300 kHz to 3 GHz in a single sweep. The Agilent 8753C network analyzers and selected 8702 lightwave component analyzer configurations control the frequency doubler. (The 8753D/E/ES and selected 8702 configurations with built-in 6 GHz source do not use the frequency doubler.) Option 006 (6 GHz receiver) is required to activate the 85047A.

SKU: AGT85047A Categories: , Tag:

Description

Measures reflection and transmission characteristics of two-port devices
in either direction with a single connection.
Includes a frequency doubler that can be switched in to measure 3 MHz
to 6 GHz in a single sweep
Full frequency range of 300 kHz to 6 GHz is available for 8753D/E/ES and
selected 8702 configurations
Exhibits <5 dB insertion loss between the RF input and the test ports
15 dBm at the test port
Includes a programmable step attenuator

Additional information

Weight 15 lbs
