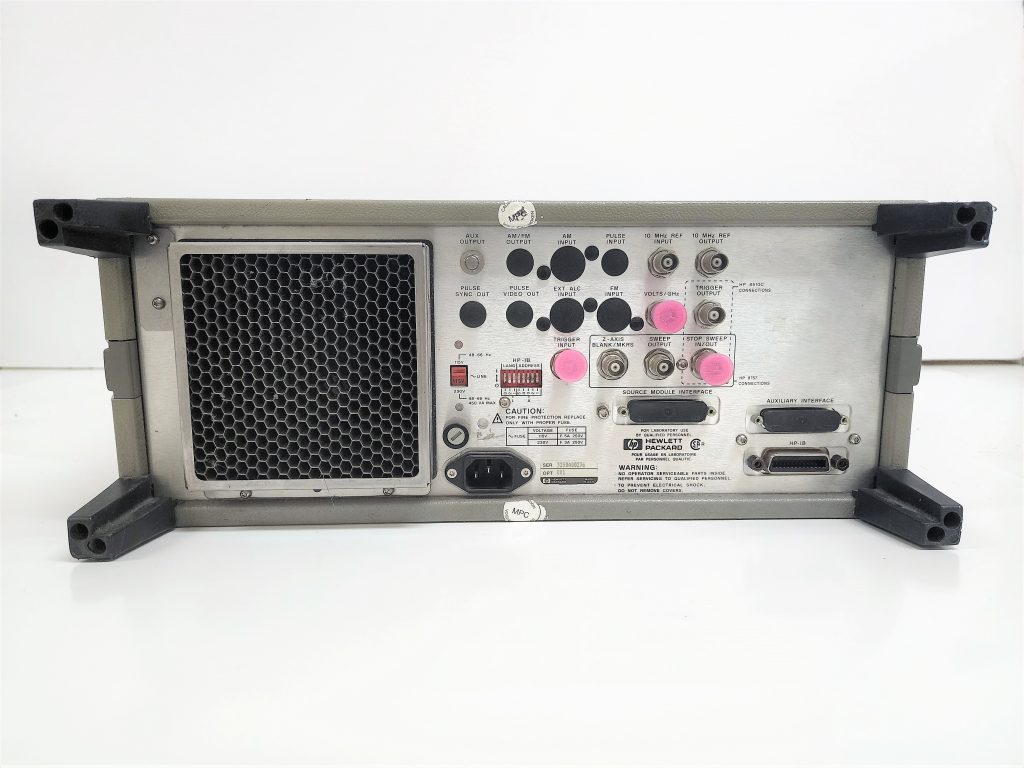

HP/Agilent 83622A Synthesized Sweeper, 2 to 20 GHz with Option 001 – Calibrated


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

$6,900.00

1 in stock

Unit Includes Option 001 – Step Attenuator and Calibration.

The Agilent Keysight 83622A synthesized sweeper is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83622A to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 20 GHz.

SKU: KEY83622A-001 Categories: , Tag: Brand: , ,

Description

Agilent  Keysight 83622A Synthesized Sweeper, 2 to 20 GHz with Option 001 Step Attenuator

Includes Calibration

Scan modulation to simulate antenna scan patterns
Accurate fixed and swept frequency offset for two-tone measurement
User flatness correction for leveling at remote points in the
test system
General purpose source for use in component test, receiver test
and for frequency conversion
Sweep Modes: Step, List, Ramp
Maximum Power: +13 dBm
Power Sweep Range: -20 dBm to maximum power
Phase Noise (20 GHz at 10 KHz): -76 dBc
Max FM Deviation (locked): ±8 MHz

Additional information

Weight 60 lbs
Dimensions 7 × 17 × 26 in
