HP/Agilent 70311A 3 GHz Signal Source Clock Module


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

$225.00

1 in stock

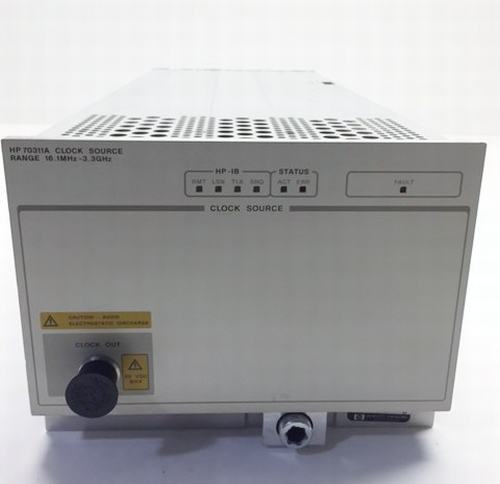

The HP Agilent 70311A is a 3GHz (16 to 3300 MHz) Signal Source Clock Module and occupies 4 MMS module slots. It provides a variable synthesized clock signal to the pattern generator.

Description

  • Frequency Range: 16 MHz to 3.3 GHz in 1 Hz steps.
  • Stability: ± 2 ppm/year after 1 year aging. ± 6 ppm over 0 to 40°C
  • Spectral Purity (harmonics): <-30 dBc.
  • SSB phase noise (3.3 GHz carrier): -75 dBc/Hz at 1 kHz offset; -115 dBc/Hz at 20 kHz offset
  • Output level: ±3 dBm.
  • Interface: ac coupled, 50 ohm, N-type female connector.

Accessories

Part Number Description
Qty
70311-90000 Operating and Calibration Manual
1

Options

Additional information

Weight 8 lbs
Dimensions 12 × 15 × 22 in
Condition

Model Number

70311A

Manufacturer

HP/Agilent

Type
