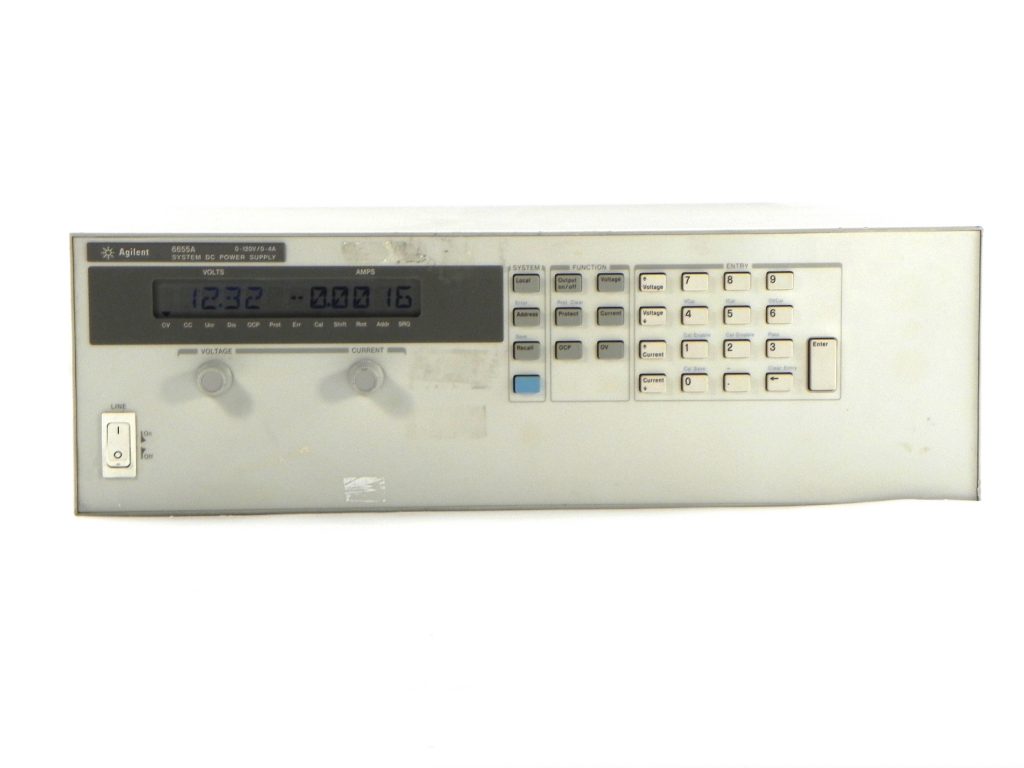

HP/Agilent 6655A 500 Watt System Power Supply, 120V, 4A


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The Agilent 6655A is one of the 665x series of 500 Watt, single output, series pass regulated power supplies, with an internal GPIB interface and SCPI programming. These models provide many talker/listener functions including remote programming of voltage and current with feedback of actual measured output values. 16 supplies can be connected to one GPIB interface via a serial link connection.

Description

  • Auto-parallel up to three units
  • Outputs can be connected in parallel or in series
  • Programmable over-voltage and over-current protection
  • Over-temperature protection
  • Discrete Fault Indicator/Remote Inhibit (DFI/RI)
  • Self-test occurs at power-on from an GPIB command
  • User definable power-on state
  • VXI plug&play drivers

Accessories

Part Number Description
Qty
Power Cord
1
5965-8267 Operating Manual
1
5959-3376 Service Manual
1
5964-8270 Programming Guide
1
1252-1488 4-Position Digital Connector
1
1252-3698 7-Position Analog Connector
1
0360-2191 Barrier Block Cover
1

Options

Option Description
0B0 Delete Manual Set
0B3 Service Manual
0L2 Additional Standard Documentation Package
100 100 Vac line input
101 Productivity Assistance
220 220 Vac Operation
240 240 Vac Operation
908 Rackmount Kit (5062-3974)
909 Rackmount Kit with Handles (5062-3975)
910 Service manual & extra operating manual
J05 Voltage increased to 150 V, current reduced to 3.2 A: 480 watts
J10 Voltage increased to 156 V, current reduced to 3 A, 468 Watts
S50 Non-latching remote inhibit.

Additional information

Weight 51 lbs
Dimensions 6 × 17 × 23 in
Condition

Model Number

6655A

Input Power

100,120,220,240

Manual

HP/Agilent 6655A Operating Manual 5959-3374 https://4gte.com/index.php/filemanager/datasheet/download/id/31/

Manufacturer

HP/Agilent

Type

Voltage

120

Watts

480
