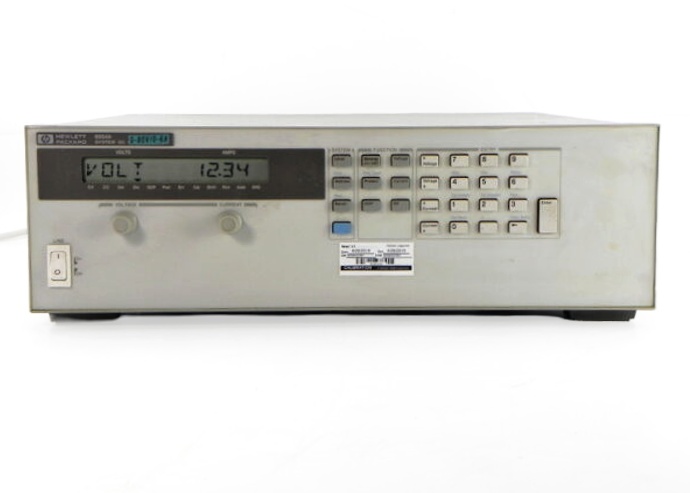

The Agilent HP Keysight 6654A is one of the 665x series of 500 Watt, single output, series pass regulated power supplies, with an internal GPIB interface and SCPI programming. These models provide many talker/listener functions including remote programming of voltage and current with feedback of actual measured output values. 16 supplies can be connected to one GPIB interface via a serial link connection.

SKU: KEY6654A Categories: , Tag:
Brand:

Description

  • Increase test throughput with fast, low-noise outputs
  • Perform remote programming using GPIB interface with SCPI command set (drivers available)
  • Utilize analog control of output voltage and current
  • Control up to 16 supplies through one GPIB address via serial link feature
  • Achieve greater output flexibility through parallel and series connections of multiple supplies
  • Simplify cabling with built-in measurements
  • Streamline tasks with front panel control and advanced programmable features
  • Ensure DUT safety with protection features



Accessories

Part Number Description
Qty
Power Cord
1
5965-8267 Operating Manual
1
5959-3376 Service Manual
1
5964-8270 Programming Guide
1
1252-1488 4-Position Digital Connector
1
1252-3698 7-Position Analog Connector
1
0360-2191 Barrier Block Cover
1

Options

Option Description
0B0 Delete Manual Set
0B3 Service Manual
0L2 Additional Standard Documentation Package
100 100 Vac line input
101 Productivity Assistance
220 220 Vac Operation
240 240 Vac Operation
908 Rackmount Kit (5062-3974)
909 Rackmount Kit with Handles (5062-3975)
910 Service manual & extra operating manual
J04 Voltage increased to 70V, current reduced to 7.5A: 525 watts
J05 Current increased to 10A, voltage reduced to 50V: 500 Watts
S50 Non-latching remote inhibit.

Additional information

Weight 50 lbs
Dimensions 6 × 17 × 20 in
Condition

Model Number

6654A

Input Power

100,120,220,240

Manual

HP Agilent 6654A Operating Manual https://4gte.com/index.php/filemanager/datasheet/download/id/63/

Manufacturer

HP/Agilent

Type

Voltage

60

Watts

500
