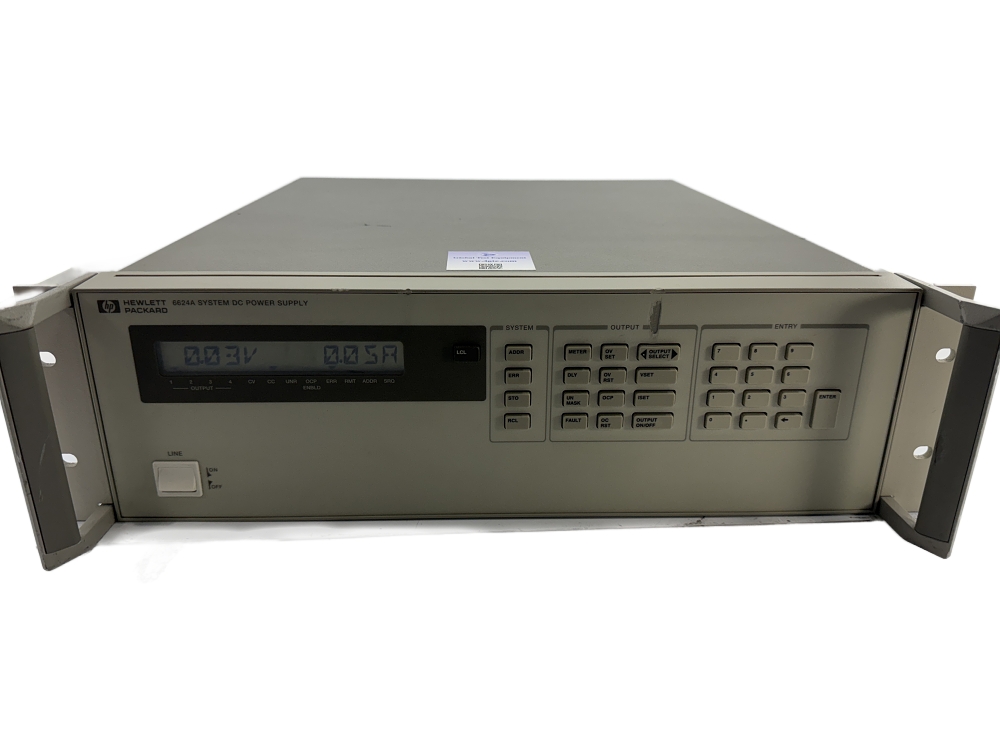

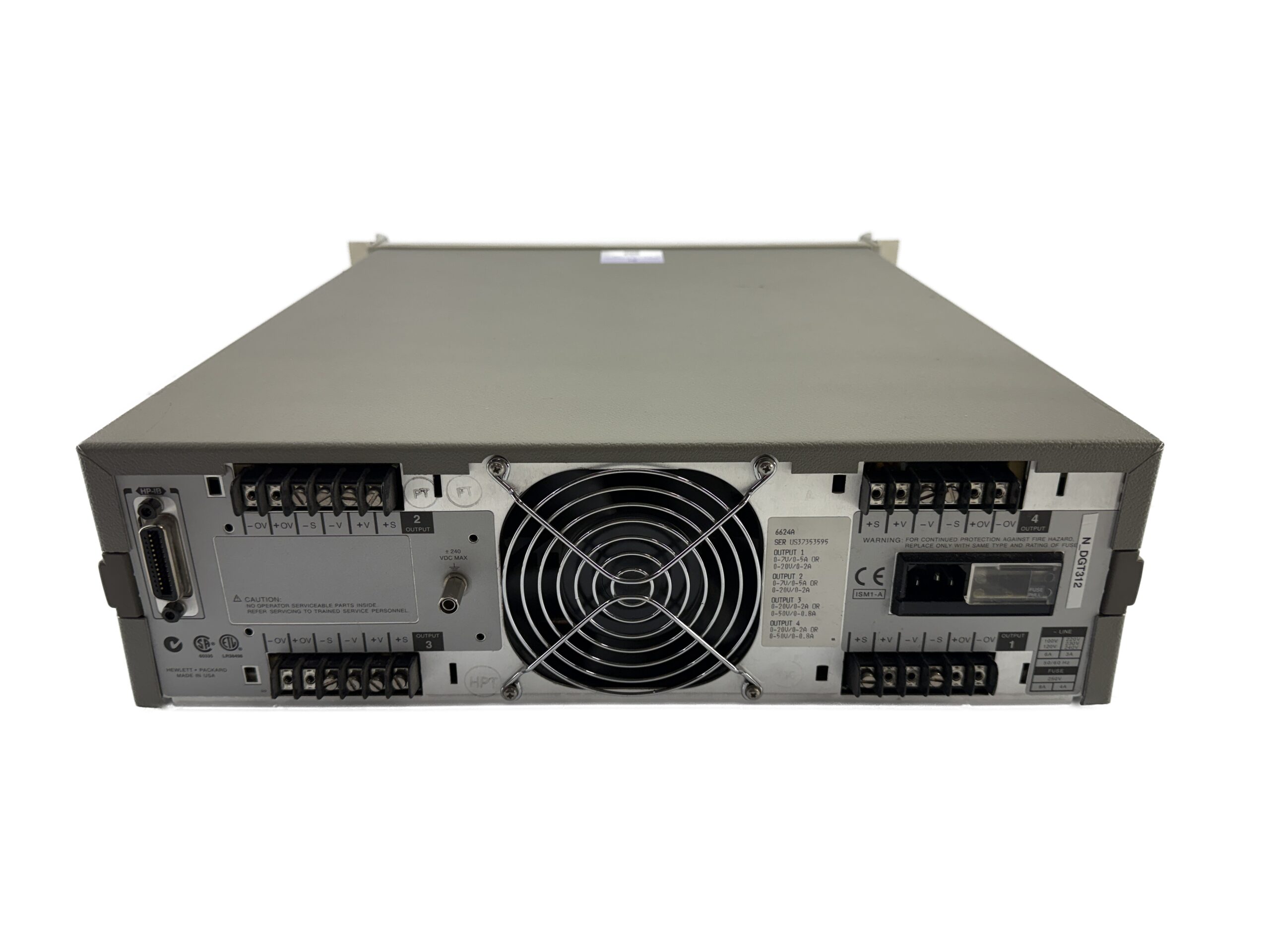

Keysight 6624A System Power Supply, 40 W, 4 outputs 2X 7V/5A, 2X 20V/2A


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The Agilent 6624A is a quad-output, GPIB system power supply, that has up to four linear low noise power supply outputs combined with a built in GPIB interface. Simple programming commands ease access to all features and capabilities. Dual ranging outputs provide greater flexibility in available voltage and current.

Agilent 6624A System Power Supply, 40 W, 4 outputs 2X 7V/5A, 2X 20V/2A

SKU: KEY6624A Categories: , Tag:
Brand:

Description

  • GPIB programming of voltage and current
  • Measured voltage and current readback over the GPIB
  • Two outputs can be connected in parallel or in series
  • Automatic selection of operating voltage and current range
  • Programmable over-voltage and over-current protection
  • Self-test occurs at power-on from an GPIB command
  • Electronic calibration via GPIB
  • 10 store-recall states
  • SCPI (Standard Comments for Programming Instruments)
  • VXI plug&play drivers

Accessories

Part Number Description
Qty
Power Cord
1
5957-6377 Operating Manual
1
5957-6379 Service Manual
1
0360-2310 Barrier Block Jumpers

8

06624-20007 Barrier Block Cover
4

Options

Option Description
0B0 Delete Manual Set
0B3 Service Manual
0L1 Standard Documentation Package
0L2 Additional Standard Documentation Package
100 87-106 vac operation, 50/60 Hz
120 104-127VAC operation, 50/60Hz
220 191-233VAC operation, 50/60Hz
240 209-250VAC operation, 50/60Hz
750 Relay control and discrete fault indicator/remote inhibit port
908 Rackmount Kit for one unit
909 Rackmount Kit with Handles
J09 6624A w/blank front panel with only the on/off switch
S50 Modifies 6624A-750 to turn outputs off and returns to programmed values.

Additional information

Weight 42 lbs
Dimensions 20 × 17 × 5 in
Condition

Model Number

6624A

Data Sheet

https://4gte.com/index.php/filemanager/datasheet/download/id/21/

Input Power

100,120,220,230

Manual

HP/Agilent 6624A Data Sheet https://4gte.com/index.php/filemanager/datasheet/download/id/21/

Manufacturer

HP/Agilent

Type

Voltage

7,20,20,50

Watts

40
