Description
- Remote sensing and programming
- Auto-series, auto-parallel, and auto-tracking
- Front and rear output terminals
- Floating output to serve as positive or negative source
- Output ratings (0-55°C): 0-10 V, 0-10 A
- Ripple and noise (20 Hz to 20 MHz): CV: 500 uV rms, 25 mV peak-to-peak; CC: 5 mA rms
- Line regulation: 0.01% + 1 mV, 0.05% + 1 mA
- Load regulation: 0.01% + 1 mV, 0.05% + 1 mA
- Physical Specifications: Weight: 11.3 kg (25 lb); Dimensions: 210 mm W x 131 mm H x 435 mm D (8.25 in x 5.16 in x 17.13 in)
Accessories
| Part Number | Description |
Qty
|
| 06282-90001 | Operating and Service Manual |
1
|
| Power Cord |
1
|
Options
| Option | Description |
| 005 | 50 Hz Operation |

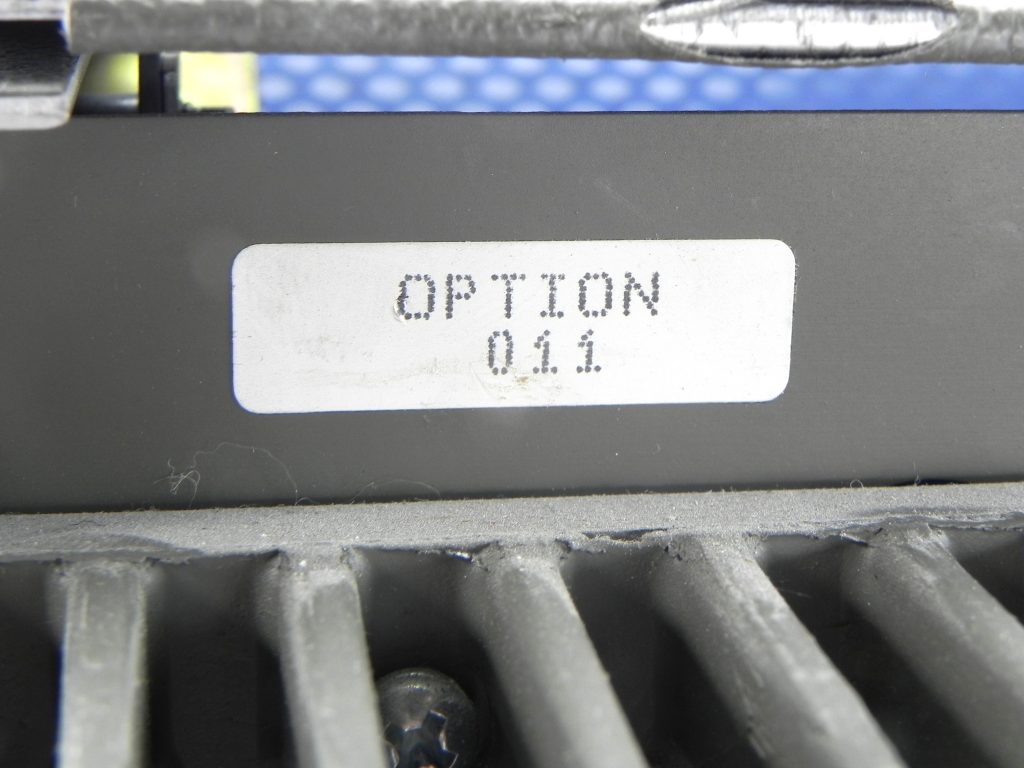

| 011 | Internal Overvoltage Protection |
| 028 | 230 VAC |
| 040 | Resistance Programming using Multiprogrammer |
