HP/Agilent 6236B Triple Output/Tracking DC Power Supply


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The HP 6236B is a compact constant voltage/current limiting supply combining 0 to ±20V tracking output rated at 0.5A with a single output rated at 0 to +6 volts at up to 2.5 A.

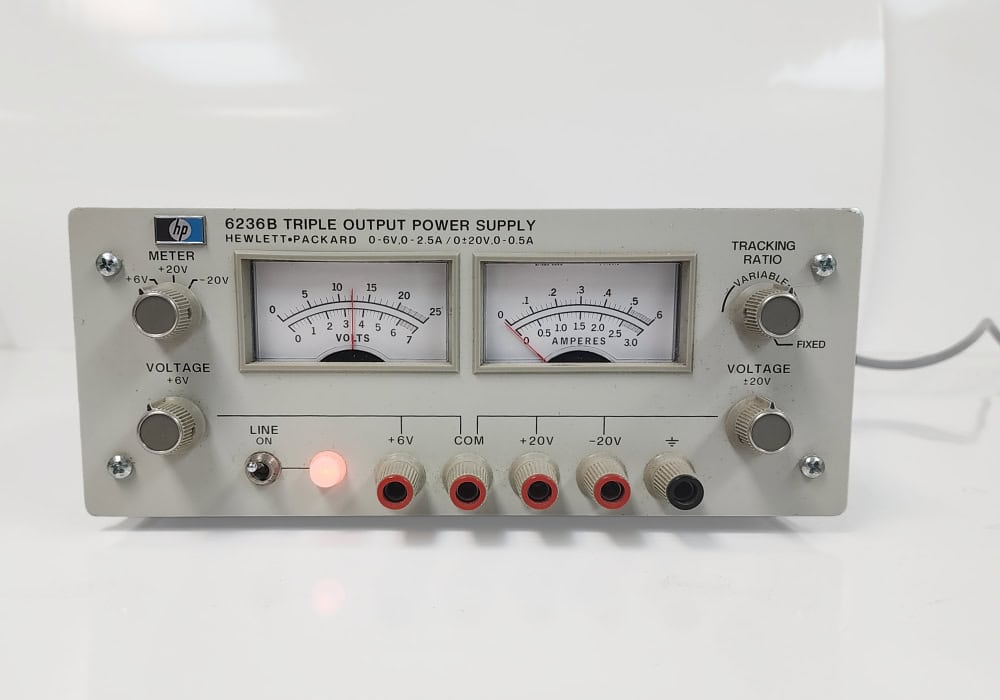

Controls, meters, and binding posts on the HP 6236B series of used power supplies are logically arranged on a neatly laid out front panel.

  • DC Output Ratings: Triple Output – 35 Watts
    0 to +6V; 2.5A
    0 to +20V; 0.5A
    0 to -20V; 0.5A
  • 0 to ±20 V tracking outputs rated at 0.5A with a single output rated at 0 to +6 volts at up to 2.5A
  • Independent voltage controls
  • Separate dual-range panel meters allow both the voltage and current of any output to be monitored simultaneously
  • Input Power: 115 V ac
SKU: KEY6236B Categories: , Tag:
Brand:

Description

.

Accessories

Options

Additional information

Weight 10 lbs
Dimensions 22 × 15 × 12 in
Condition

Model Number

6236B

Input Power

120

Manufacturer

HP/Agilent

Type

Voltage

20,20,6

Watts
