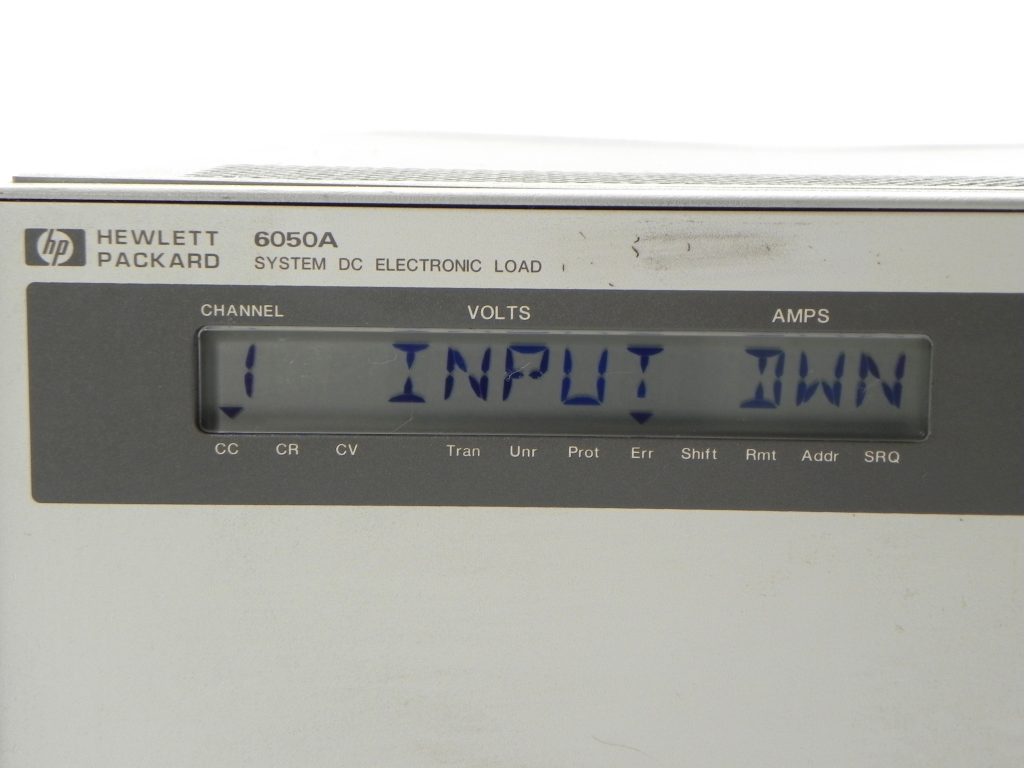

Keysight 6050A Electronic Load Mainframe, 1800W with Option 908


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The Agilent 6050A electronic load mainframe accepts user-installable Agilent load modules for easy system configuration and future reconfiguration. The 6050A holds up to six 60501B, 60502B, and 60503B load modules, or three 60504B and 60507B load modules, allowing up to 1,800 watts of total maximum power. One GPIB address is all you need for complete control and readback of all load modules within a single mainframe.

This unit includes Option 908

SKU: KEY6050A-908 Categories: , Tag:
Brand:

Description

  • Features of 6050A only
  • GPIB control of current, voltage and resistance
  • GPIB readback of current, voltage, and power
  • Built-in pulse waveform generation with programmable amplitude, frequency, duty cycle and slew rate
  • Full protection from over-current, over-voltage, overpower, over-temperature, and reverse polarity
  • Electronic calibration
  • Trigger for external synchronization
  • Parallel units in constant current mode for higher power
  • VXI plug&play drivers

Accessories

Part Number Description
Qty
Power Cord
1
5959-3368 Operating Manual
1
06050-90003 Service Manual
1
1252-1488 4-Position Digital Connector
1
06060-90005 Programming Reference
1

Options

Option Description
100 Input Power: 100 Vac, 48-63 Hz
220 Input Power: 220 Vac, 48-63 Hz
240 Input Power: 240 Vac, 48-63 Hz
908 Rack mount kit
909 Flanges with handles

Additional information

Weight 24 lbs
Dimensions 7 × 19 × 24 in
Condition

Model Number

Input Power

Manual

Type
